13.3 OPCOM3500E-EOP8FX
13.3.1 Appearance and functions

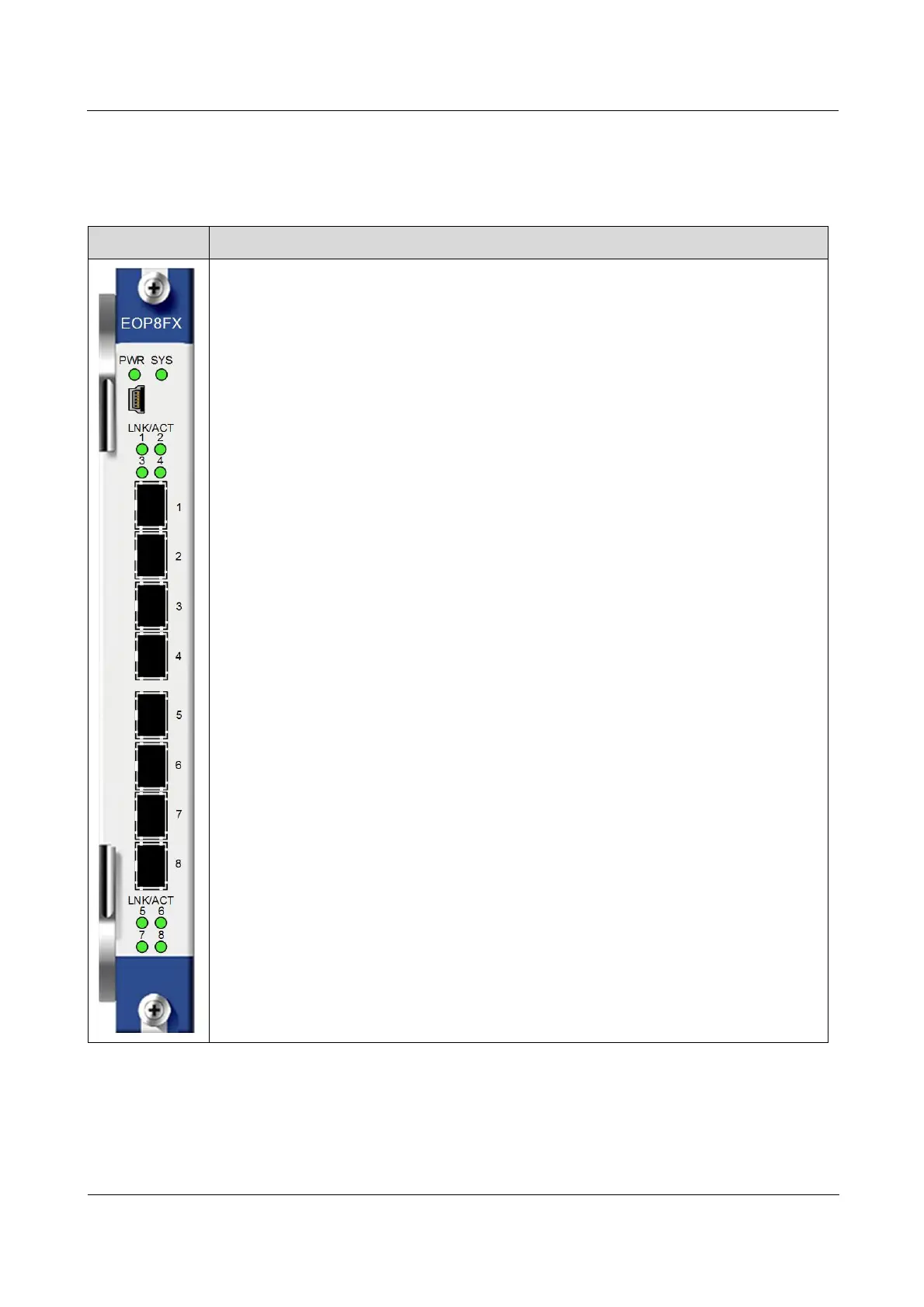

Appearance
Function
The OPCOM3500E-EOP8FX is an optical interface EoP card used by the iTN2100.

Perform long-distance transmission of Ethernet data by using E1 lines.

Encapsulate Ethernet data from the FE optical interface on the front panel into EoP
signals and mapping them to E1 lines. In the opposite direction, de-encapsulate EoP
signals of E1 lines to Ethernet data and transmit them to the FE optical interface on the
front panel.

Provide eight 100 Mbit/s SFP optical interfaces on the front panel.

Support E1 framed mode.

Support local internal loopback, local external loopback, and remote external loopback on
the E1 interface.

Support E1 BERT.

Support E1 interface alarm/

Support complete Ethernet interface functions, such as Ethernet interface statistics.

Support the Generic Framing Procedure (GFP) Ethernet encapsulation mode.

Support 8 VCGs performing reverse multiplexing. Each VCG supports up to 16-way E1
signals. 8 VCGs support up to 32-way E1 signals.

Support the RC-Link protocol, which can be used to manage RC family transceivers
remotely.

Support DDM of the SFP optical module.

Support ALS.

Support abundant network management functions, such as managing the remote protocol
convertor or the transceiver connected to the protocol convertor through E1 in-band
network management mode.

Support complete alarm and performance monitoring functions.

Support upgrading the card software online.

Support querying default configurations.

Support hot swapping.
13.3.2 Slots
The OPCOM3500E-EOP8FX can be plugged into slots 1–5 and 8–12 on the iTN2100.
