Adjusting knitting machine 4
Advanced adjustments
Adjusting yarn carriers

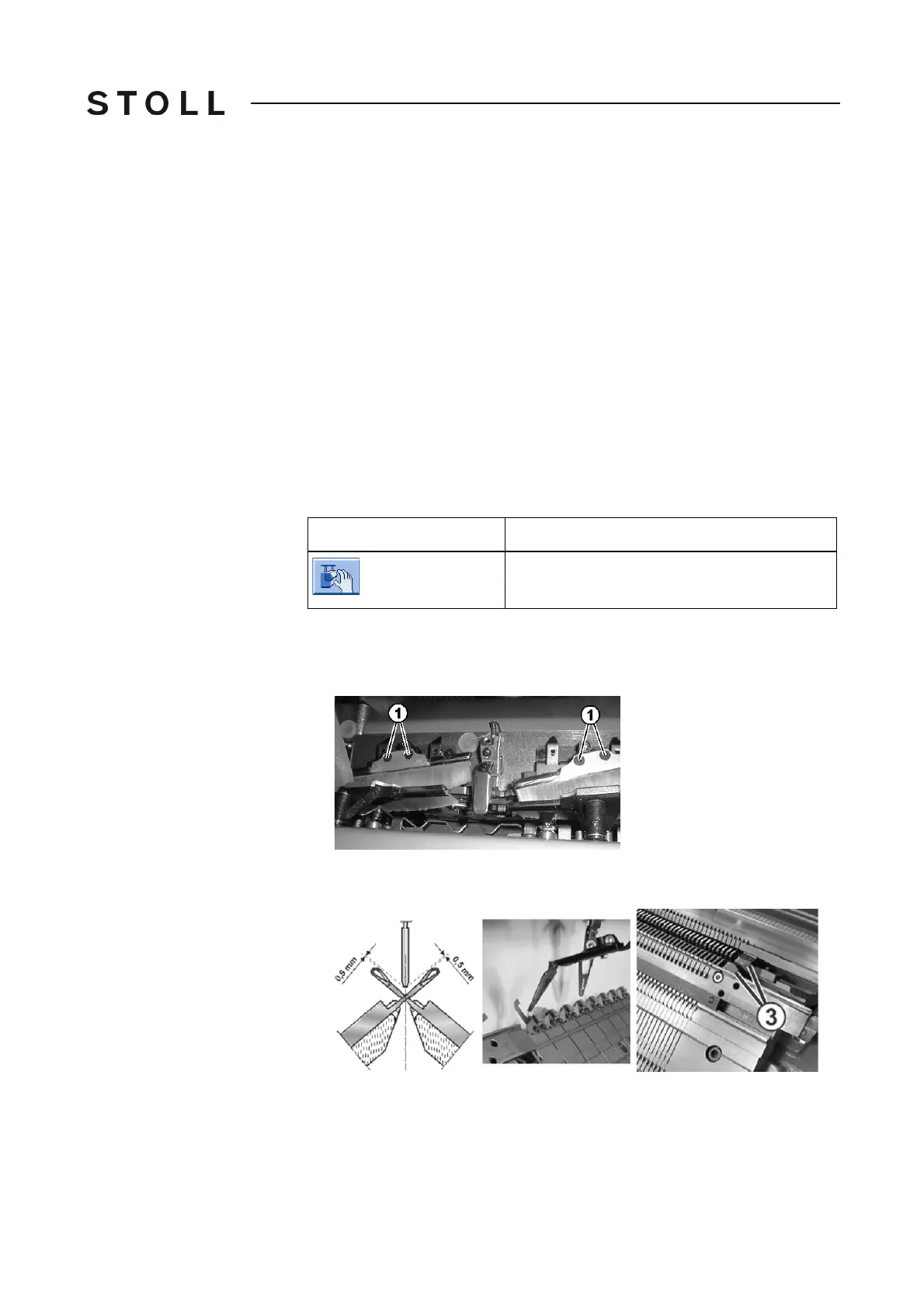

4.2.15 Adjusting yarn carriers
The yarn carriers are correctly adjusted if
the distance between the cam center of the knittin
g system and the yarn
carrier in each system is identical in both carriage directions
the thread is laid on the open latch at exactly the same point by each
yarn
carrier for both selvedge needles
the yarn carrier tips move exactly between the needle beds in the needl
e
cross and the distance between yarn carrier tips and the closed needle
latch is 0.5 mm to 1 mm
the yarn carrier in the clamping and cutting area does not press th
e cutting
needle located in the working position
the yarn carriers of the track 1 and 8 are also set 0.5 mm higher so that
they do no
t touch the limiters (3)
Key for calling up Manual interventions window
Key for calling up "Manual interventions" window
Adjusting yarn carriers:
1. Remove needle brushes by loosening screws (1).
Screws of needle brushes
Screws of needle brushes
2. Park the carriage assembly in needle space.
Adjusting y arn carrie rs
Adjusting yarn carriers
3. Adjust yarn carriers if necessary. When doing so, the carriage assembly
must be stopped in the needle area.
4. Call up "Manual interventions" window.
Key
Function
Call up "Manual interventions" window
