Repairing the knitting machine 7
Supplementary activities during maintenance
Central lubrication - mounting and wo rking position
7.1.2 Central lubrication - mounting and working position
Only on machines with
central lubrication
The central lubrication can be swiveled upward for mounting activities, e.g. to
remove the carriage part.
Mounting position Swivel central lubrication into mounting
position:
1. Swivel central lubrication upward (appr
ox. 100 degrees).

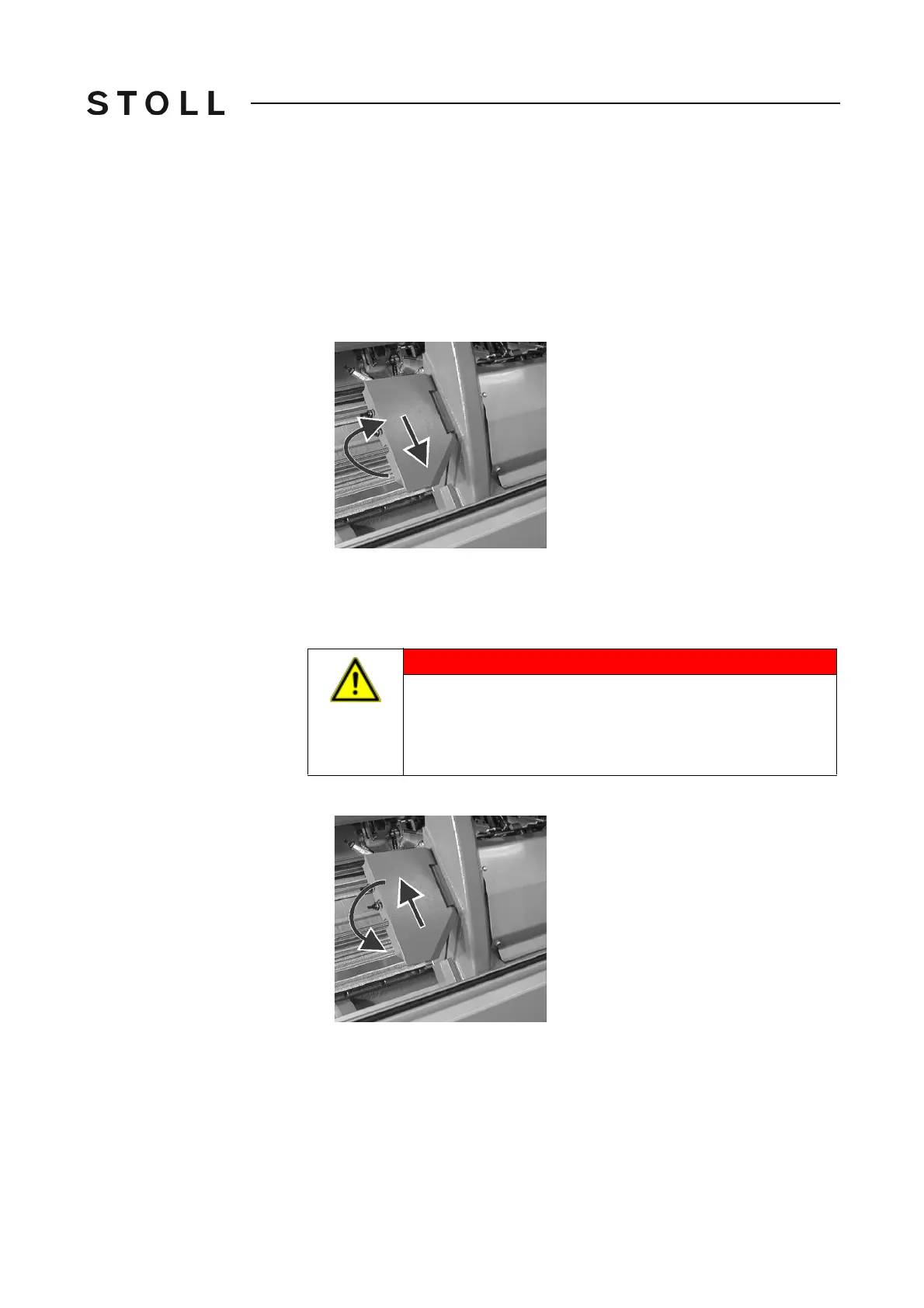

Mounting position of central lubrication
Mounting position of central lubrication
2. Move central lubrication downward somewhat until it stops.
Working position Swivel central lubrication into working position:
1. Move central lubrication upwa
rd somewhat until the lock is released.
Swiveling central lubrication into working position
Swiveling central lubrication into working position
2. Swivel central lubrication downward until it touches the carriage.
DANGER
Central lubrication in mounting position!
If the machine is started and the carriage moves
outward, the
side safety door could be thrown open.
➜ Swivel central lubrication into wo
rking position.
