84
3 Producing with the knitting machine
Threading up yarn
7. Call up the "Allocation yarn carrier" window.

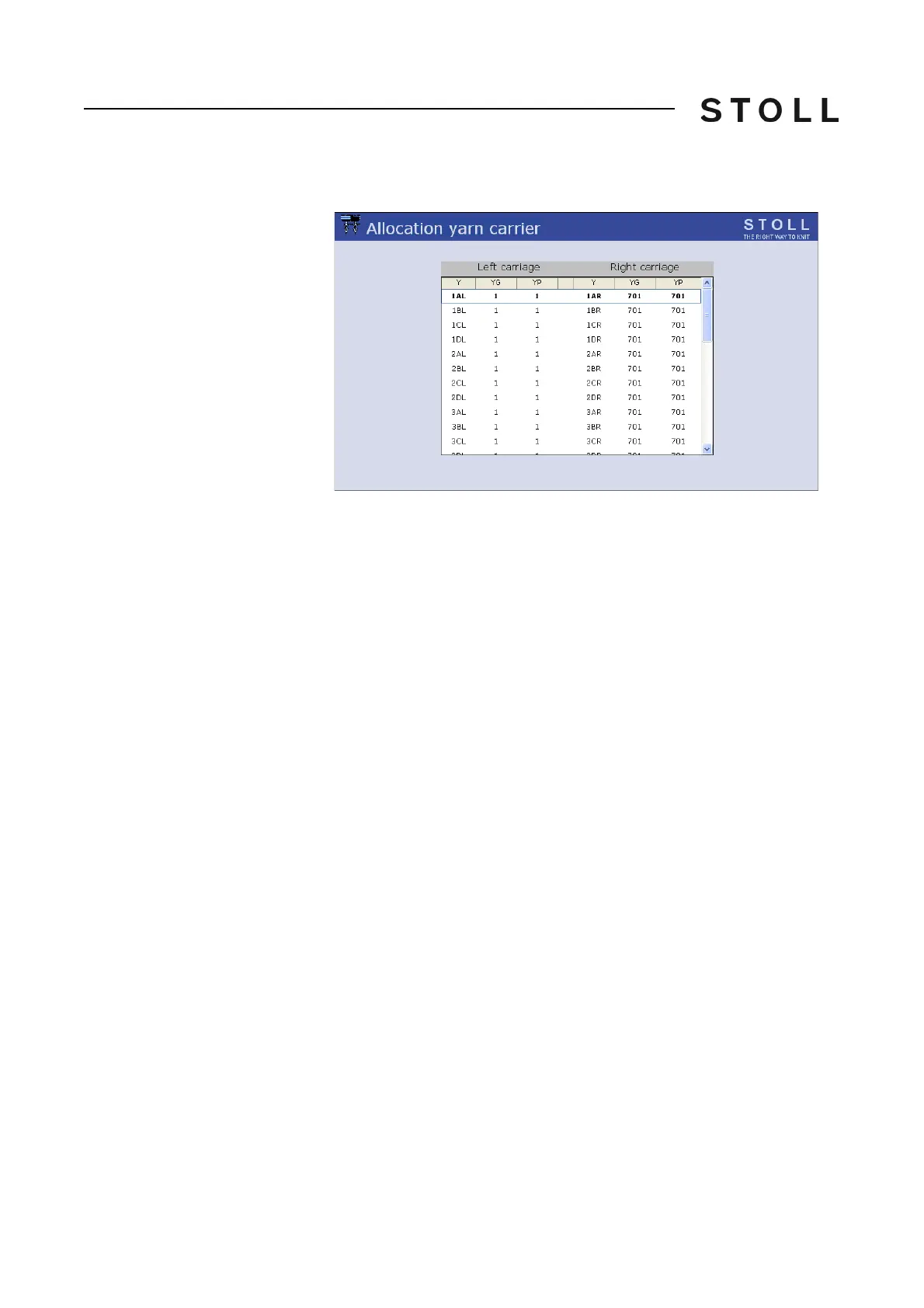

Allocation yarn carrier window
"Allocation yarn carrier" window
8. Call up "Main menu".
Putting up bobbins
3.2.2 Putting up bobbins
When the threads of several bobbins are led to one yarn carrier, supply
approximately the same number of threads to the yarn carrier from each side.
➜ Put up the bobbins on the knitting machine
or on the additional bobbin
board.
Threading threads through yarn guide bracket
3.2.3 Threading threads through yarn guide bracket
1. Push the yarn guide brackets to the side so that a yarn guide bracket
hangs over each bobbin.
2. Thread each thread through a yarn guide bracket.
