431
Repairing the knitting machine 7
Replacing parts
Friction f eed wheel - Replacing drive belts an d friction roller
7.3.19 Friction feed wheel - Replacing drive belts and friction
roller
The drive belts and the friction roller of the friction feed wheel are replaced with
the following steps:
Preparations
Replace the drive belt
Change position of friction roller
Replacing the friction roller
Preparation

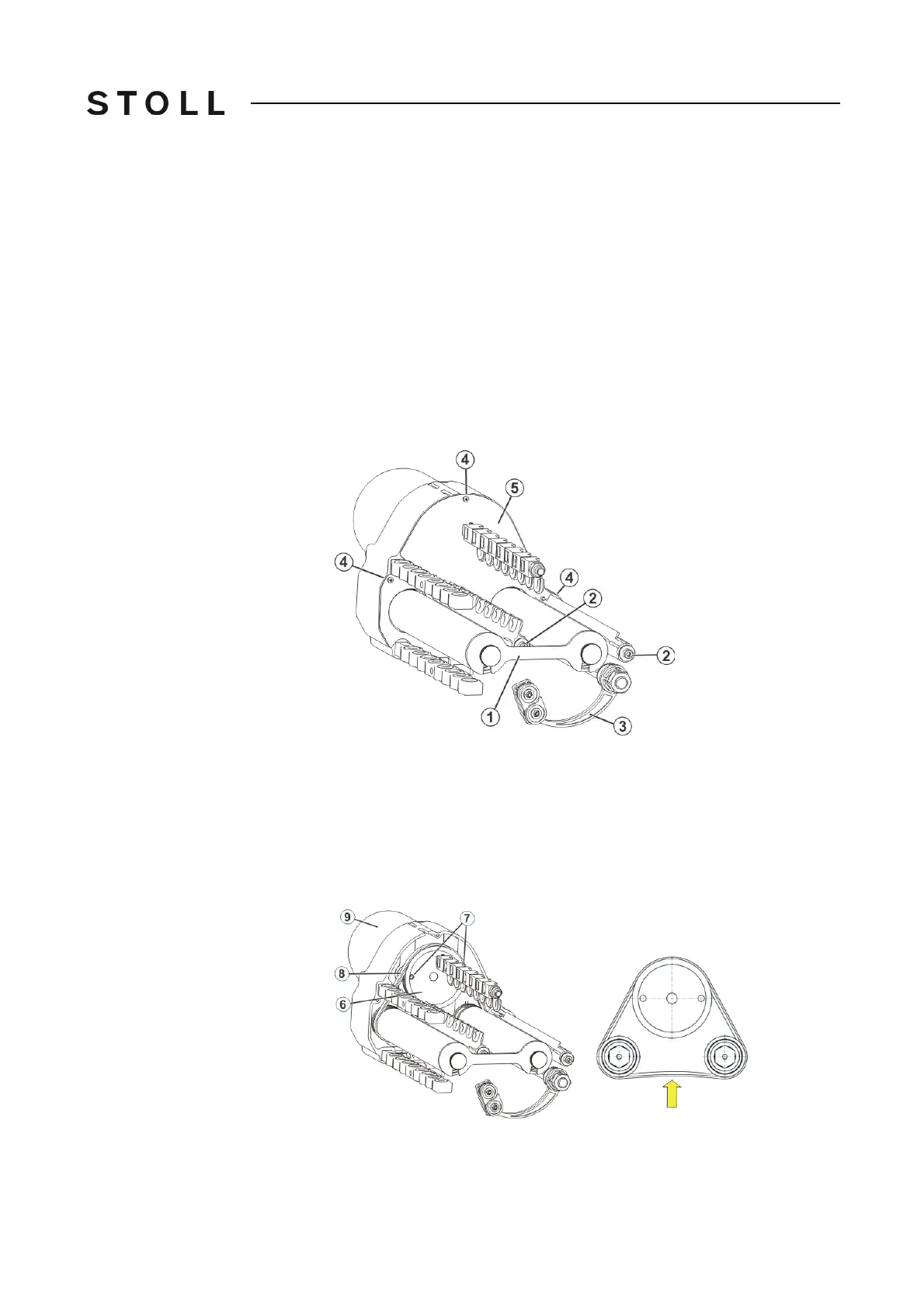

s 1. Remove the lug (1) by loosening the
knurled screws somewhat.
Friction feed wheel
Friction feed wheel
2. Remove screws (2) and take off the stop motion rails.
3. Release the couplings of the arms (3) so that they can swing downward.
4. Remove the
screws (4) and take off the housing cover (5).
Replace the drive belt 1. Turn the V-ribbed belt pulley (6) by hand until bo
th Allen screws can be
released through the holes (7).
Drive belt
Drive belt
2. Remove the belt (8).
