2.4.2 Raising cams (CMS 520 C+)
Raising cam s
Raising cams
There are two different raising cams for transfer and split-stitch. When the
knitting machine is shipped, the raising cams for transfer (2) are built-in. The
raising cams for split-stitch (3) are contained in the accessories.
Transferring of stitches if the
production
takes place with
very reduced take-down
Cardigan front with knit on sleeve
If the production takes place with very reduced fabric take-down, e.g. in case
of a gore, sometimes there is the problem that the transfer process cannot be
performed without errors.
Reason: The stitch to be tra
nsferre
d is not retained securely by the needle
hook, the stitch can jump out of the needle hook.

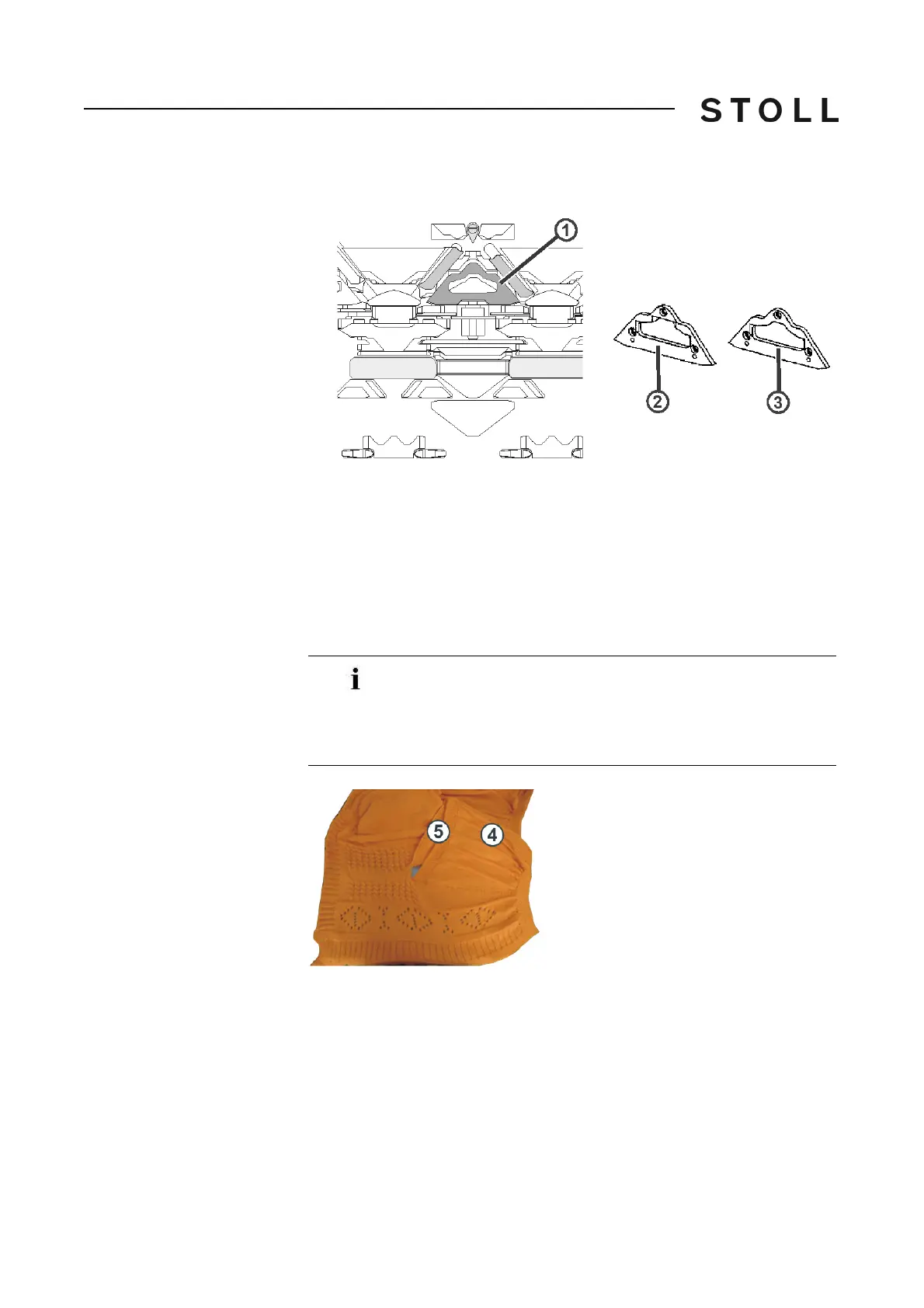

1 Position of raising cam
2 Raising cam for transfer
3
Raising cam for split-stitch
The raising cam for split-stitch (3) can also be used for normal
transfer patterns. In the case of particularly delicate yarns, the
raising cam for transfer (2) should be used so that the yarn
does not tear while transferring the stitches and no drop
stitches result.
4 Gore (the complete sleeve is knitted with gore technique)
5
Armhole ribs (1x1 rib)
