Coupling carriage assembly wide or narrow (CMS 822)
4.2.13 Coupling carriage assembly wide or narrow (CMS 822)
Narrow coup ling and wid e coupling
Narrow coupling and wide coupling
Both carriage assemblies can work coupled wide in the tandem mode or as
four systems coupled narrow.
The coupling width depends on:
 the fabric
width
 the needed parking area for the yar
n carr
ier between both fabrics
The following tables show you the relation betwe
en the coupling width, the
fabric width and the parking area for the yarn carrier.

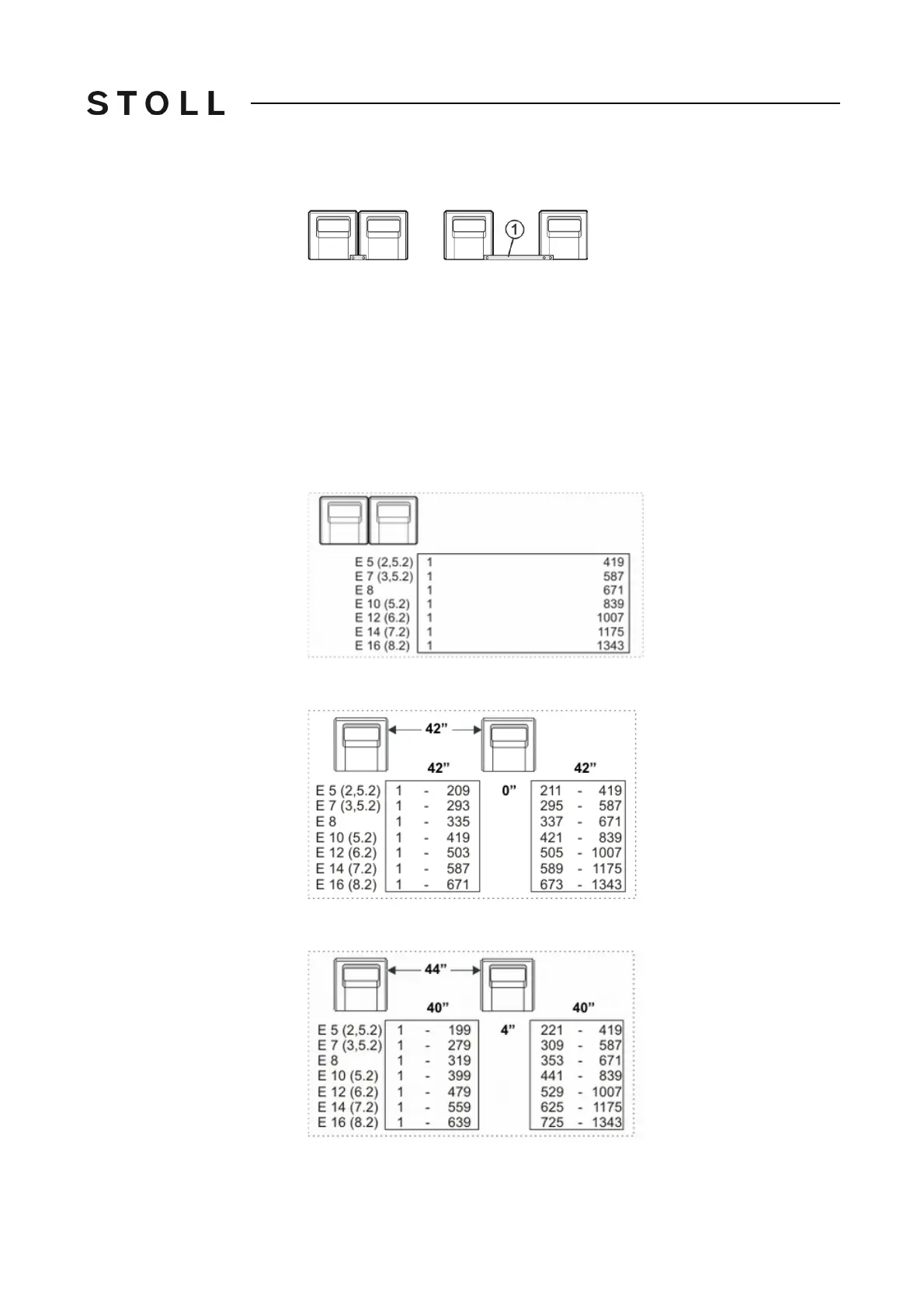

Needle area with 84" needle
bed width
narrow coupling
Coupling width 42"
Needle area for coupling width 42"
Coupling width 44"
Needle area for coupling width 44"
