7 Repairing the knitting machine
Replacing parts
Disassembling the belt tak e-down
7.3.22 Disassembling the belt take-down
In case of fault and maintenance of the belt take-down, it must be
disassembled and cleaned.
Keys for disassembling the belt take-down
Keys for disassembling the belt take-down
Prepare Machine
1. Place the carriage on the right-hand side.
2. Open the belt take-down.
3. Remove needle bed or position it at an angle [399]
Disassembling the belt take-down
The
left side at the belt take-down can be access
ed.

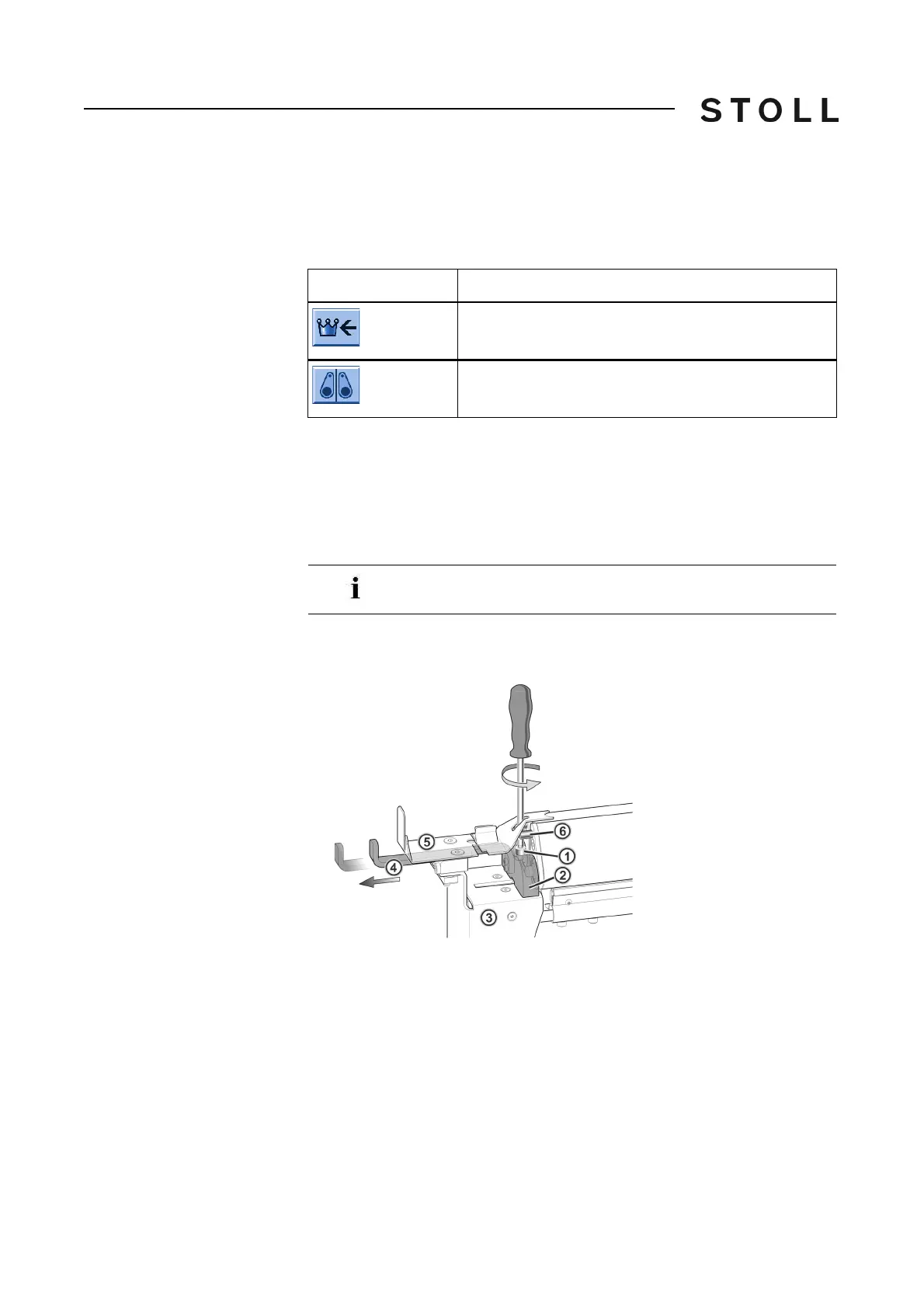

Belt take-down 5xx B, left side
Belt take-down 5xx B, left side
1. Loosen the screw (1) at the holder (2).
2. Hold the belt take-down firmly by the holder (6).
3.
Grasp the bearing strip (4) by the lever and push it to
the left.
The holder (2) is guided with the support angle (3) and the yarn brake
(5).
Drive shaft of the belt ta
ke-down separated from the holder.
4. Push the belt take-down to the left until the drive sh
aft is uncoupled from
the holder of the right side.
Key
Function
Call up "Main menu"
Call up the "Belt take-down" window
In case of machines with additional needle beds, these must be
removed as well.
