Stoll CMS 520 C+ - Adjusting Basic Racking Correction VGK

209
Adjusting knitting machine 4
Advanced adjustments
Adjusting basic racking correction VGK
4.2.10 Adjusting basic racking correction VGK
The position of the rear needle bed relative to the front needle bed is set with
the VGK value (factory setting).
If part of the racking device is replaced, e.g. the racking m
otor or the racking
belt, the VGK value has to be set anew. During installation, make sure that the
front and rear needle beds are opposite each other.
The VGK value always re
mains
saved, even if the operating system is
imported again.

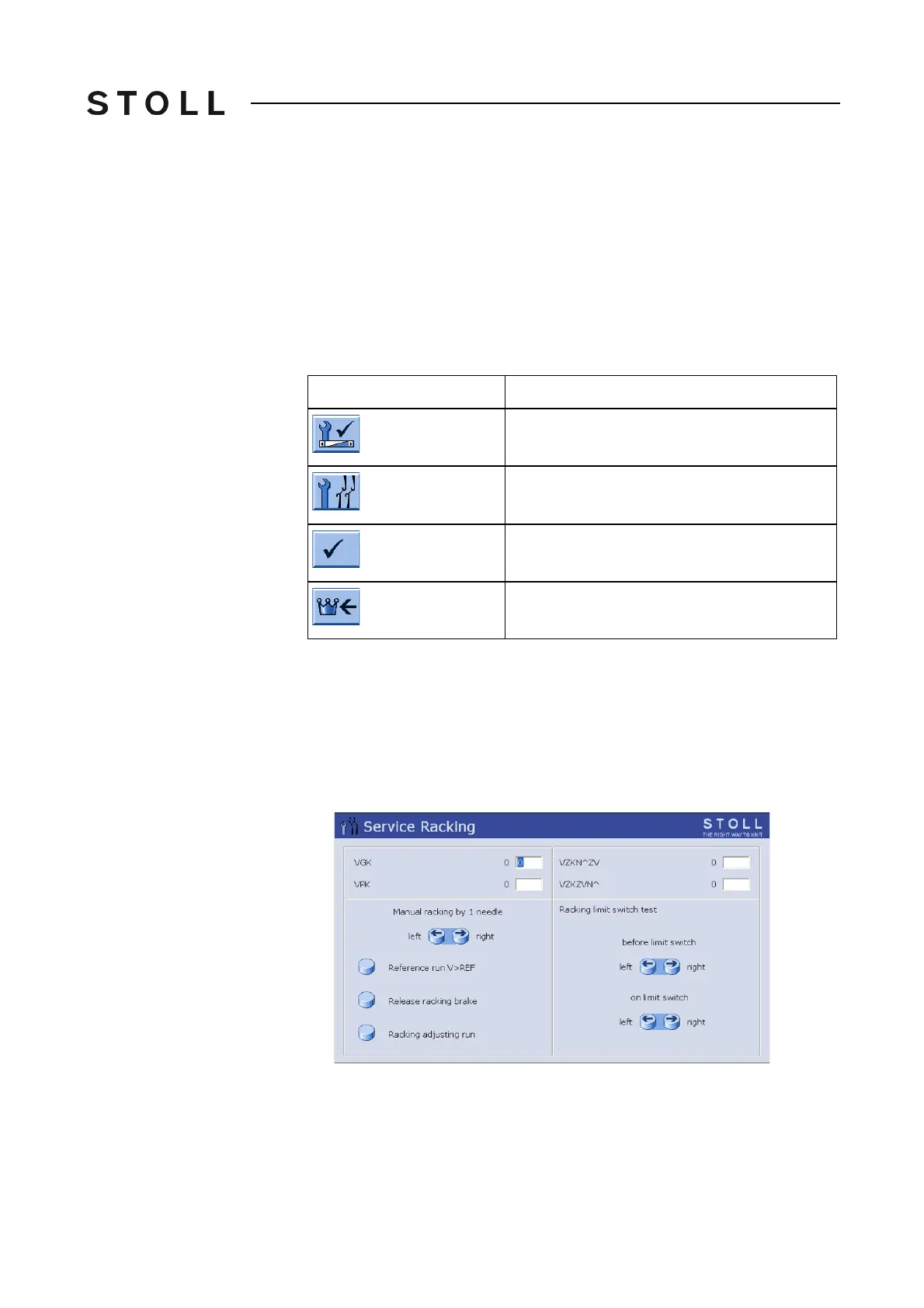

Keys for setting VG K value
Keys for setting VGK value
Setting VGK:
 Cast-off the stitches on both needle beds.
1. Ca
ll up "Main menu".
2. Call up the "Service" menu.
3. Call up the "Service Racking" window.
Service Racking window
"Service Racking" window
4. Enter and confirm the value "0" in the line "VPK".
5. Tap the "Racking adjusting run" key. A message appears, answer this
with
"Yes".
Key Function
Call up the "Service" menu
Call up the "Service Racking" window
Confirm input
Call up "Main menu"
