Replacing holding-down jack (CMS 520 C+)
7.3.8 Replacing holding-down jack (CMS 520 C+)

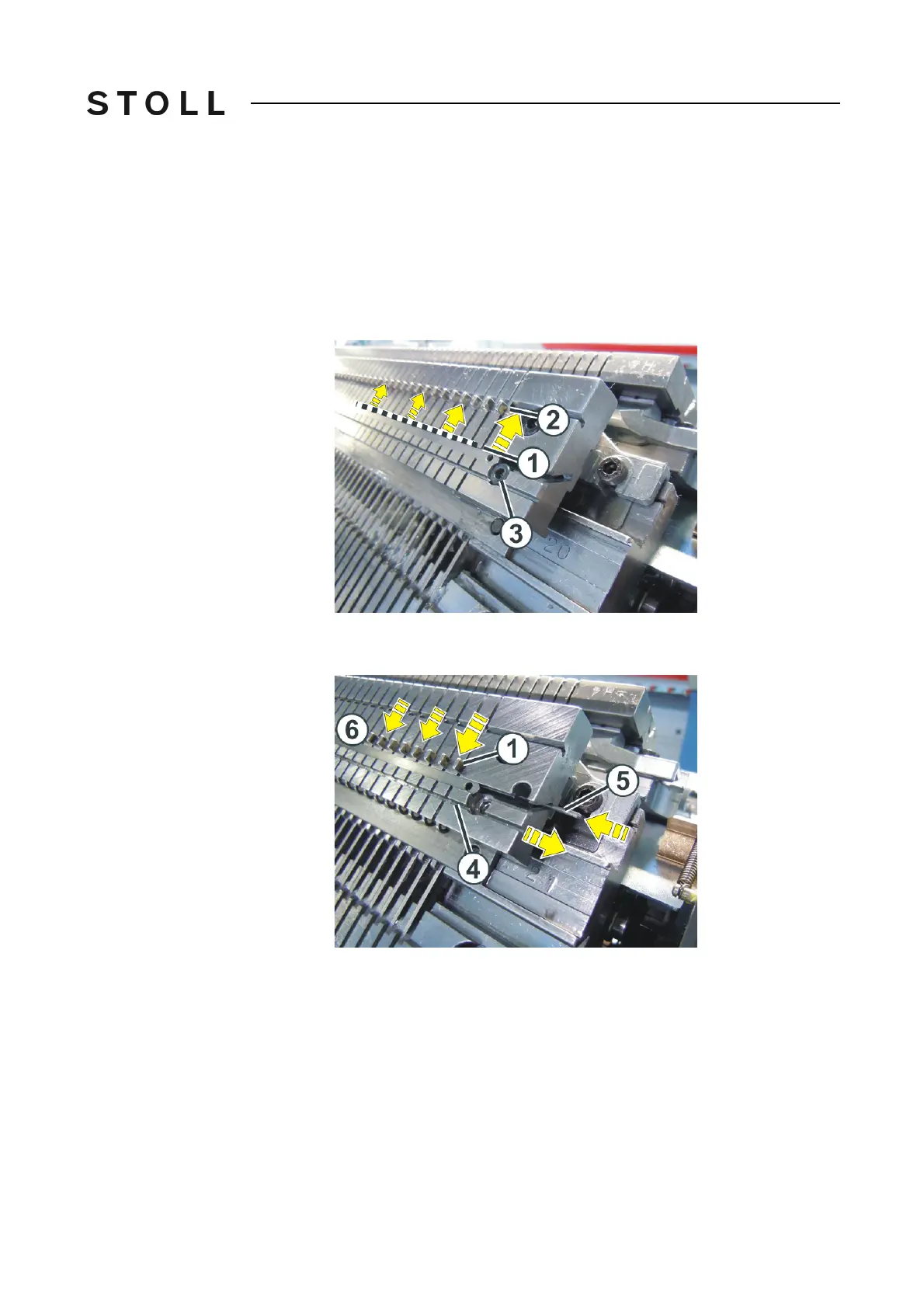

1. Transfer all stitches of the corresponding needle bed to the other needle
bed,
2. Stop the carriage outside the nee
dle bed.
3. All the springs (1) of the holding-down jacks m
ust be in the position (2)
("Position closed").
4. Remove screw (3) on left and right-hand sides of jack bed.
5. Pull out the wire (4) and insert in th
e groove
(5), below the springs.
6. Push all springs (1) of the holding-
down jacks into the position (6)
("Position open").
 The holding-down jacks are relieved.
