7 Repairing the knitting machine
Replacing parts
Removing selection jack bed (CMS 520 C+, CMS 830 C)
7.3.11 Removing selection jack bed (CMS 520 C+, CMS 830
C)
with CMS 520 C+ 1. Stop the carriage assembly into the left reversing position.

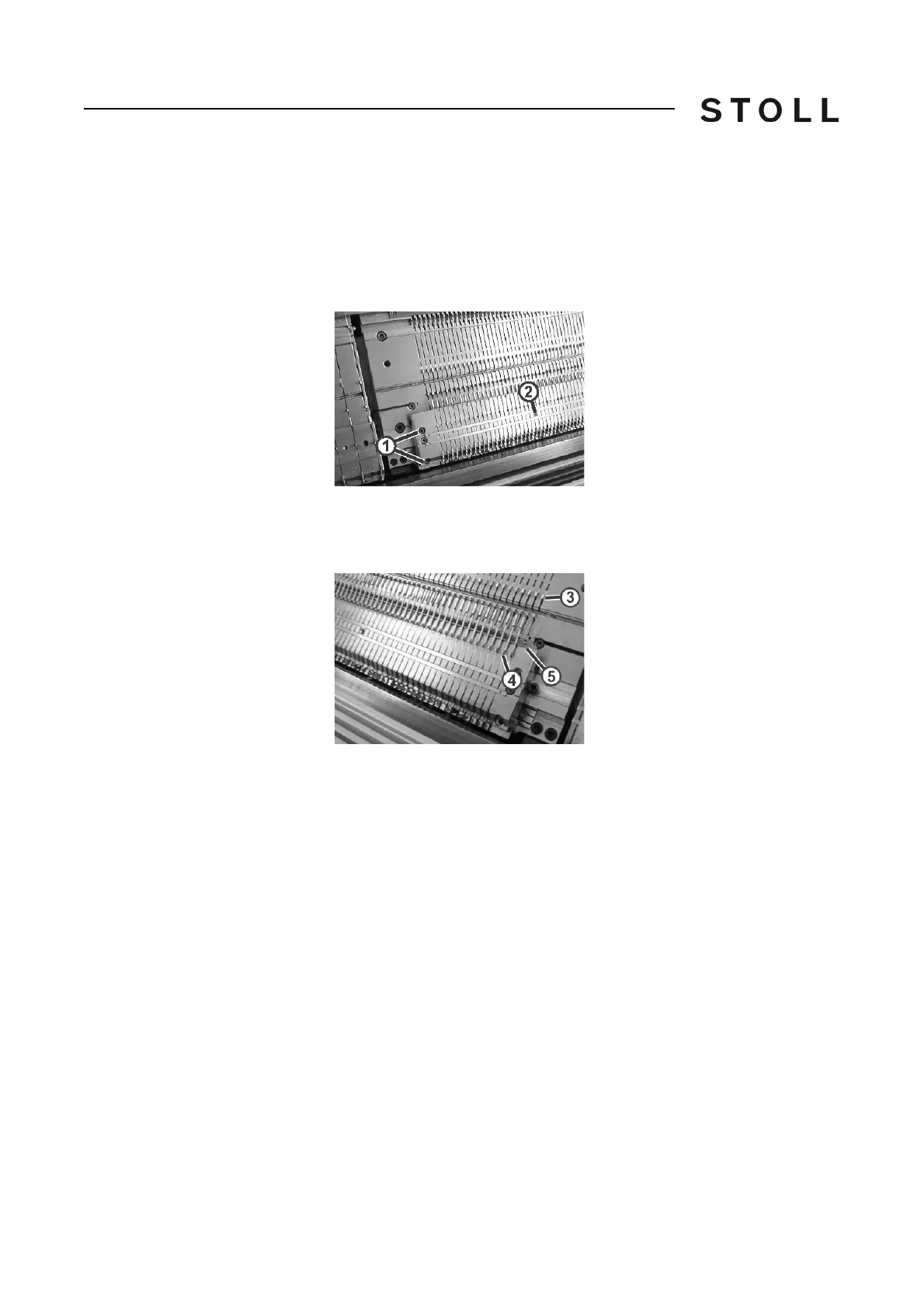

2. Remove two screws (1) on each side of the machine.
Releasin g the selec tion jack b ed
Releasing the selection jack bed
3. Remove the screws (2) over the entire length of the selection jack bed.
4. Push the intermediate sliders (3) into its
highest position.
Lifting sele ction jac ks
Lifting selection jacks
5. Push the selection jacks (4) into their highest position.
6. Starting from one side, lift the selection jacks at their top end while
simultane
ously pushing the wire (5) out of the accessory between the
selection jack bed and the selection jack. Carry this out over the entire
length of the selection jack bed. The wire must be pushed in so that the
working butts of the selection jacks stick out so high that they touch neither
the intermediate slider nor the needle bed.
7. Push the selection jack bed to the
side. The front bed to the left
and the
rear bed to the right. (Use a rubber mallet, if necessary.)
8. Take off the selection jack bed.
