Stoll CMS 520 C+ - Components of the knitting machine

20
2 Description of knitting machine
Components of the knitting machine
2.1 Components of the knitting machine
Front side (CMS 530, CMS 520, CMS 520 C, CMS 502) *
2.1.1 Front side (CMS 530, CMS 520, CMS 520 C,
CMS 502) *

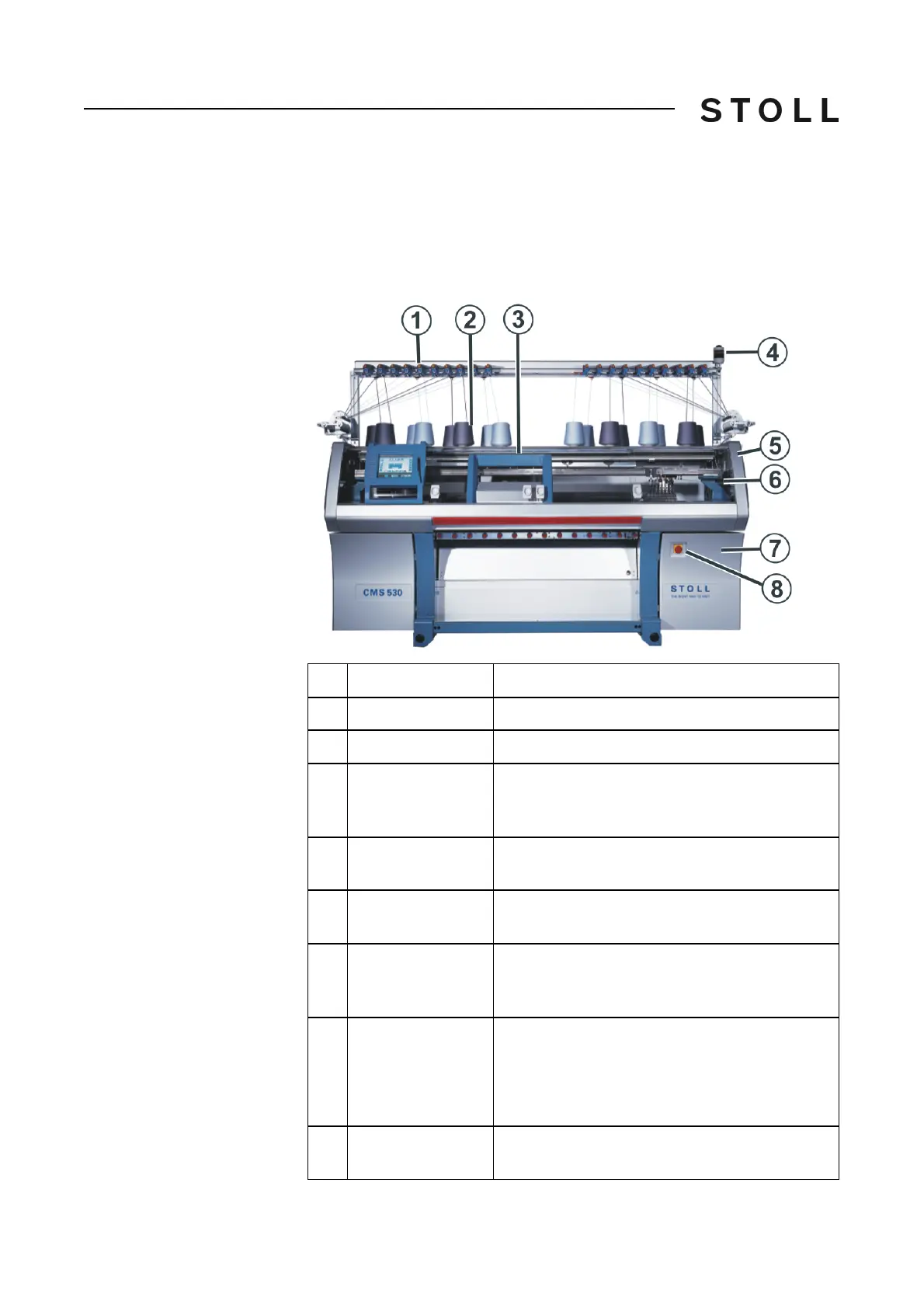

Overview machine elements 1
Overview machine elements 1
Designation Explanation
1 Yarn control unit Tensions and controls the thread.
2 Bobbin board The bobbins are placed on it.
3 Carriage It moves over the needle beds. It controls the work
positions of each yarn carrier and each and every
needle in the needle bed.
4 Signal light It displays the operating state of the knitting
machine
5 Safety door (left,
right)
The reversing position of the carriage is secured
by the safety door.
6 Covers The entire traversing path of the carriage is
secured with covers. You have to forbid everyone
from reaching out into the running machine.
7 Control Unit It controls the knitting process.
It saves the data of the knitting program.
It controls the needle selection and the motors in
the carriage.
8 Main switch Switching on and off of the machine.
EMERGENCY-STOP switch.
