Maintenance of the knitting machine 6
Lubricate knitting machine
Greasing butts of the coupling parts and intermediate sliders
6.3.11 Greasing butts of the coupling parts and intermediate
sliders
After every tenth "Oil needle bed" note appears a "Grease needle bed"
pictograph.

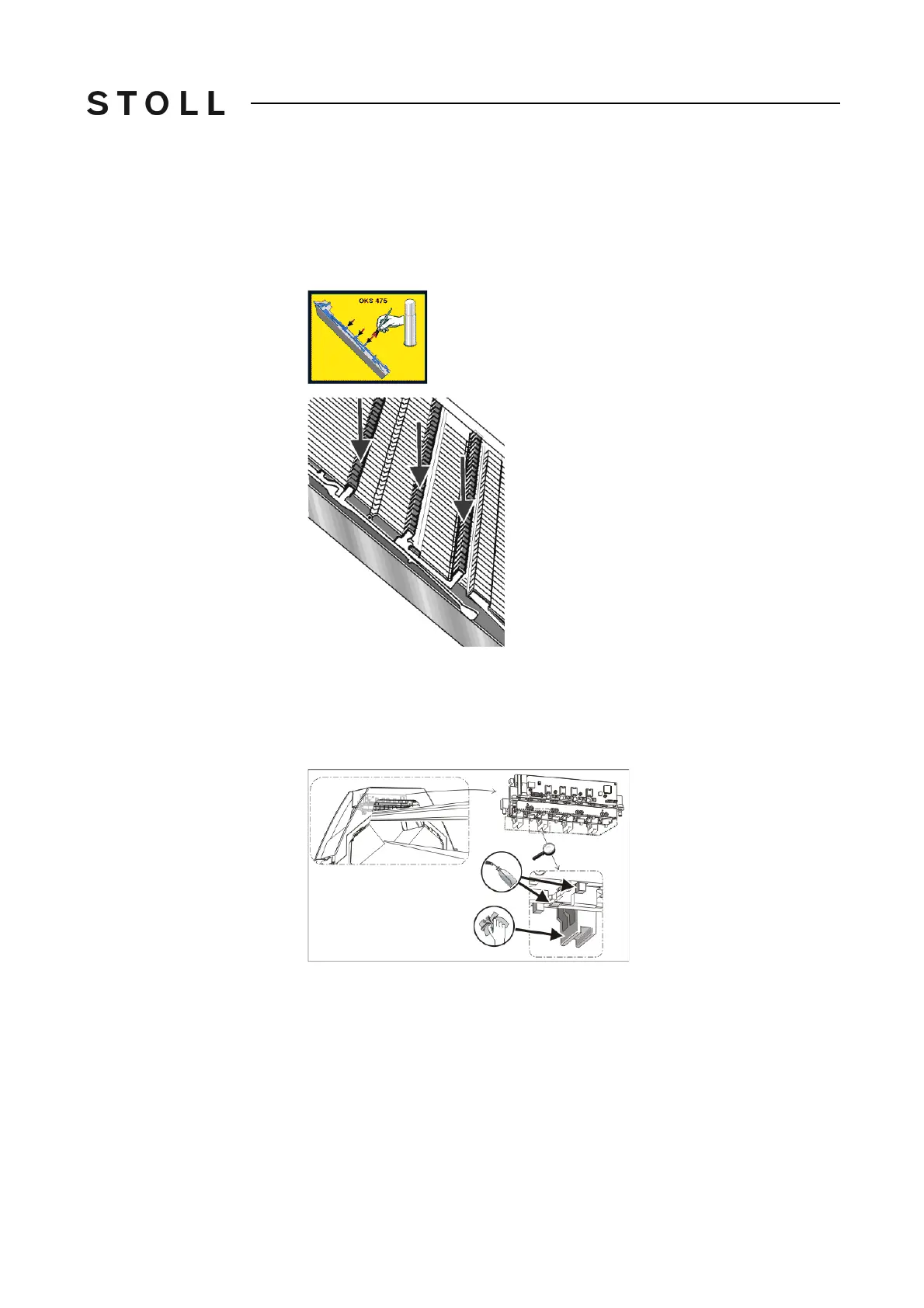

Greasing t he butts of the coup ling part and inter mediate sl iders
Greasing the butts of the coupling part and intermediate sliders
➜ Use a brush to apply grease to the butts of the coupling parts and
intermediate sliders.
Oiling lifting slide (yarn carrier plunger)
6.3.12 Oiling lifting slide (yarn carrier plunger)
1. Apply oil to the lifting slide with a brush.
2. Move the lifting slide several times with
the finger so that the guide in the
metal housing is oiled. There are two lifting slides per yarn carrier plunger
