Stoll CMS 520 C+ - Replacing Holding-Down Jack (CMS 530, CMS 502, CMS 822, CMS 803)

391
Repairing the knitting machine 7
Replacing parts
Replacing holding-down jack (CMS 530, CMS 502, CMS 822, CMS 803)
7.3.6 Replacing holding-down jack (CMS 530, CMS 502,
CMS 822, CMS 803)
1. Transfer all stitches of the needle bed in which the jack is replaced to the
other needle bed.

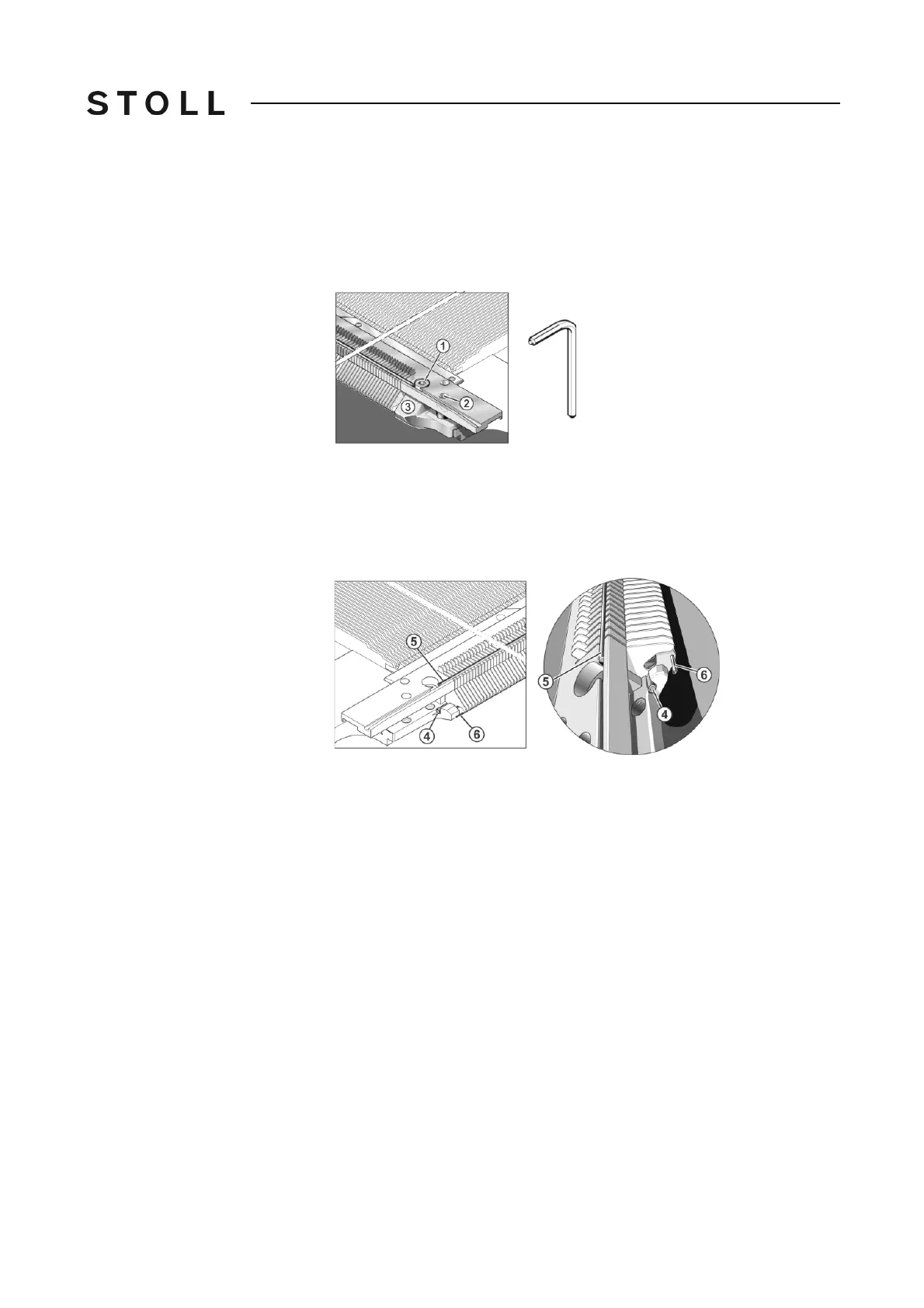

Removing the limiter 3
Removing the limiter (3)
2. Remove screw (1) on left and right-hand sides of jack bed. Use the special
hexagon screwdriver from the accessories for this purpose.
3. Loosen the screw (2) on the left and right-h
and sides of the jack bed.
4. Remove the limiter (3) on both
sides.
Replacin g a jack
Replacing a jack
5. Pull out wire (4) and, with gauges E3,5.2, E5.2, E6.2, E7.2, E8.2, E9.2
(with 72", 84") wire (6) as well, up to the point of repair. When doing so,
always guide in the replacement wire from the accessories after it from the
other side of the machine so that the jacks do not fall out of the needle bed.
6. Pull out the wire (5).
7. Take out the holding-down jack from above and insert a new one.
8. Reassemble the needle bed in
the rever
se order.
Further information:
 Helpful knitting rows [378]
 Remove needle bed or position it at an angle [399]
