7 Repairing the knitting machine
Check fuses
Checking fuse (right and left control cabinet)
7.5.2 Checking fuse (right and left control cabinet)
1. Set machine main switch to "0".
2. Wait until the touch screen is dark.
3. Check fuses (1) to (4) at the rear of the left control u
nit.

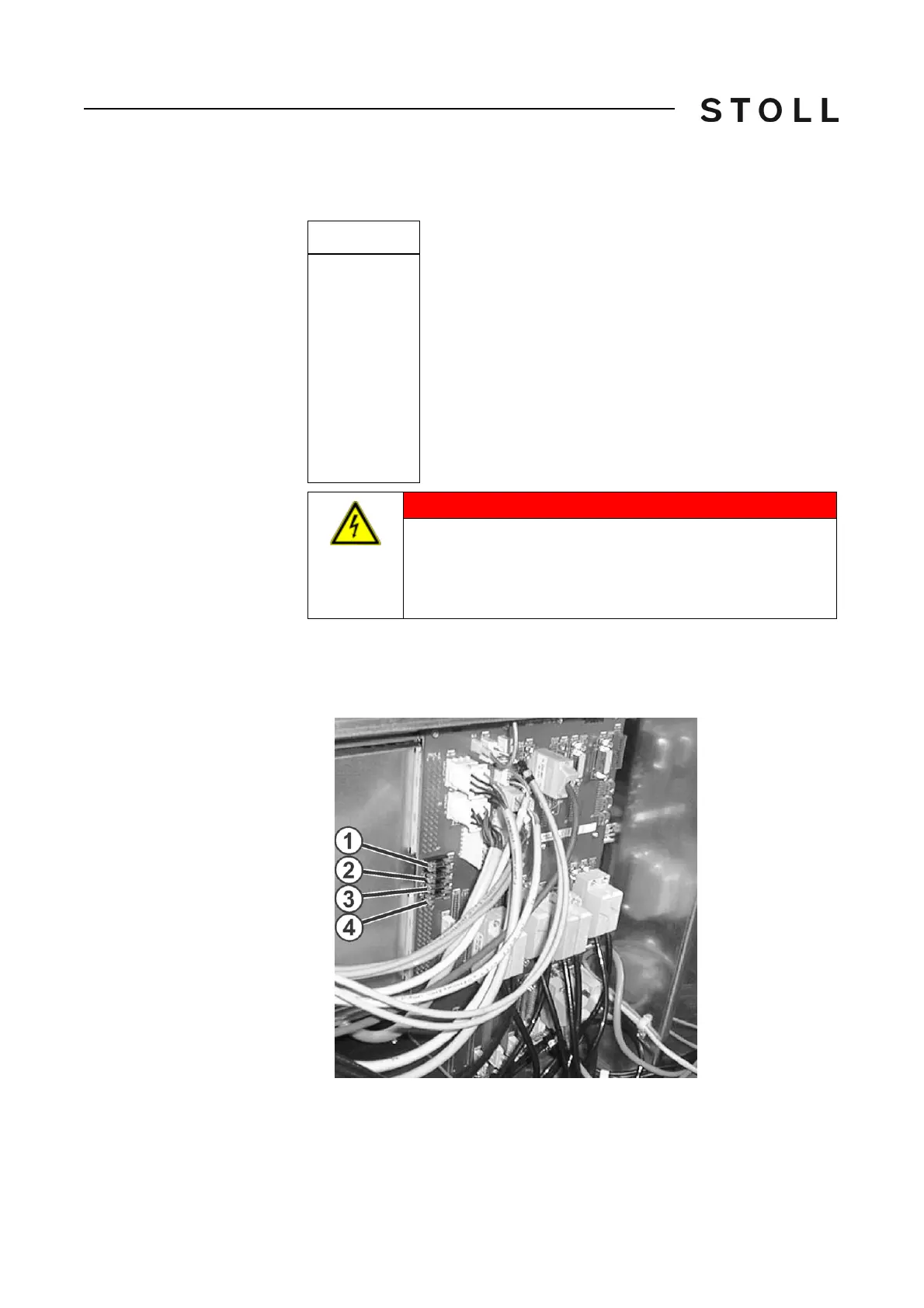

Fuses at r ear of left control unit
Fuses at rear of left control unit
Valid for:
CMS 530 T
CMS 730 S
CMS 730 T
CMS 803
CMS 822
CMS 830 C
CMS 830 S
CMS 933
DANGER
Life-threatening high voltage!
Electrical shock may cause death or ser
ious injuries.
➜ Set main switch to "0" and wait un
til the touch screen is
dark.
1
28 V (stop motions) (1A,
slow-blow)
3
Yarn control unit (1A, slow-blow)
2
STIXX (1A, slow-blow)
4
Battery charge (1A, slow-blow)
