Description of knitting machine 2
Fabric take-down
Belt take -down *
2.7.4 Belt take-down *
Belt Take-Down
Belt Take-Down
The belt take-down grasps the fabric directly under the needle bed.
A motor drives the drive shafts. The belts (1) are driven by the drive
shaft and
guided by the deflection rod. The finished fabric is guided into the fabric
collection chamber by the belts.
The winding protection device with antistatic br
ushs (2) an
d linear stripping
brushs (3) avoid the winding of the fabric and the threads around the take-
down belts. If winding is detected nevertheless, the machine stops.
Functional states Rotate: Forward r
otation with controlled speed by the motor
Stop: After a
short delay the forward movement is stopped.
Close: Short, fast forward rotation, then rotate
Open: Short, fast back
ward rotation
Premature wear of the take-
down belts
The belt will be worn prematurely by:
too high belt sp
eed
yarns that are harmful to rubber, e.g. abrasive, sandin
g yarns or yarn
finishes such as greases or oils
sharp tools that are used for example for pressing-down the stitches or
the
fabric
UV radiation

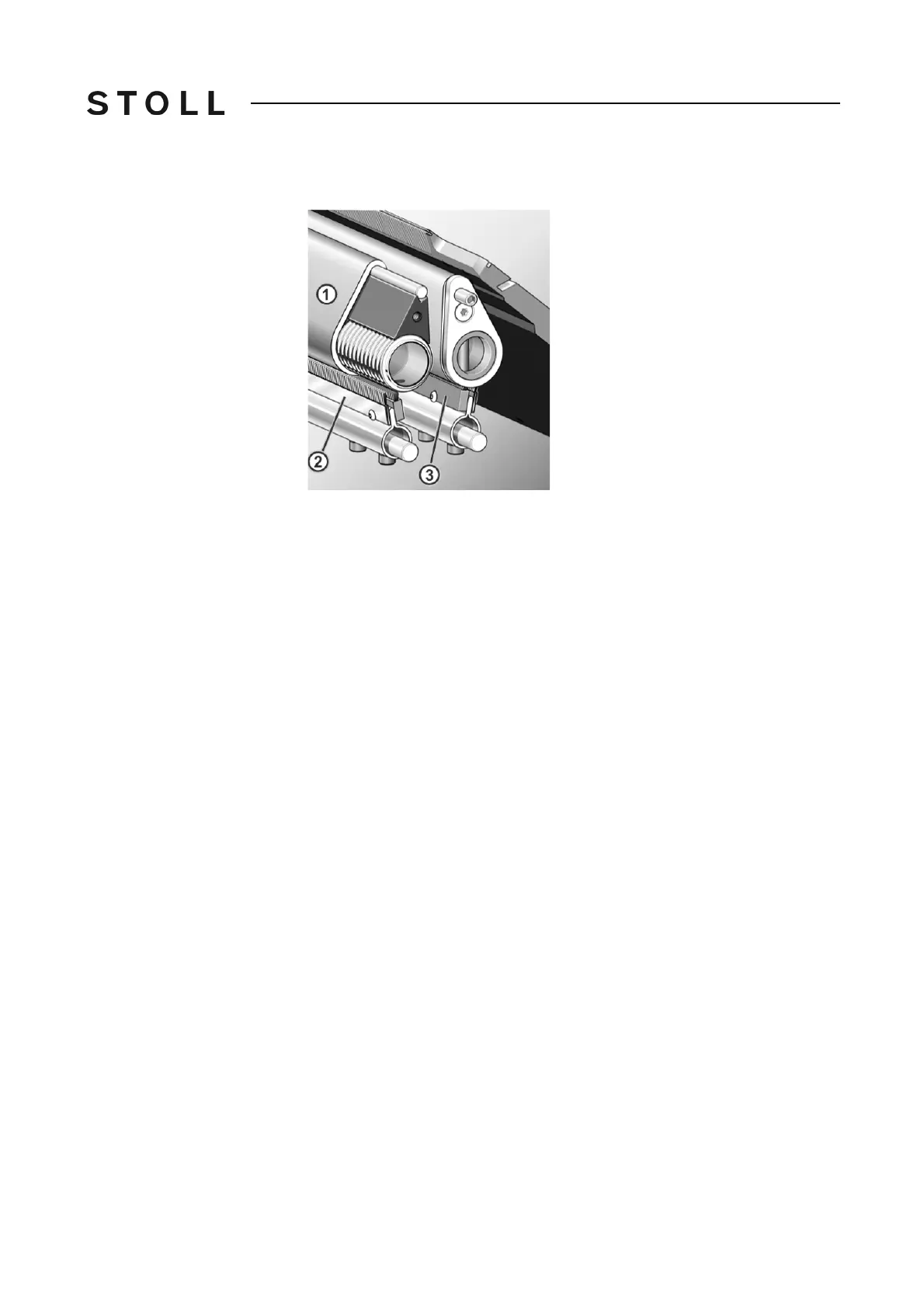

1
Belts
2
Antistatic brush
3
Linear stripping brush
