402
7 Repairing the knitting machine
Replacing parts
Repairing needle bed and additional needle bed
7.3.10 Repairing needle bed and additional needle bed

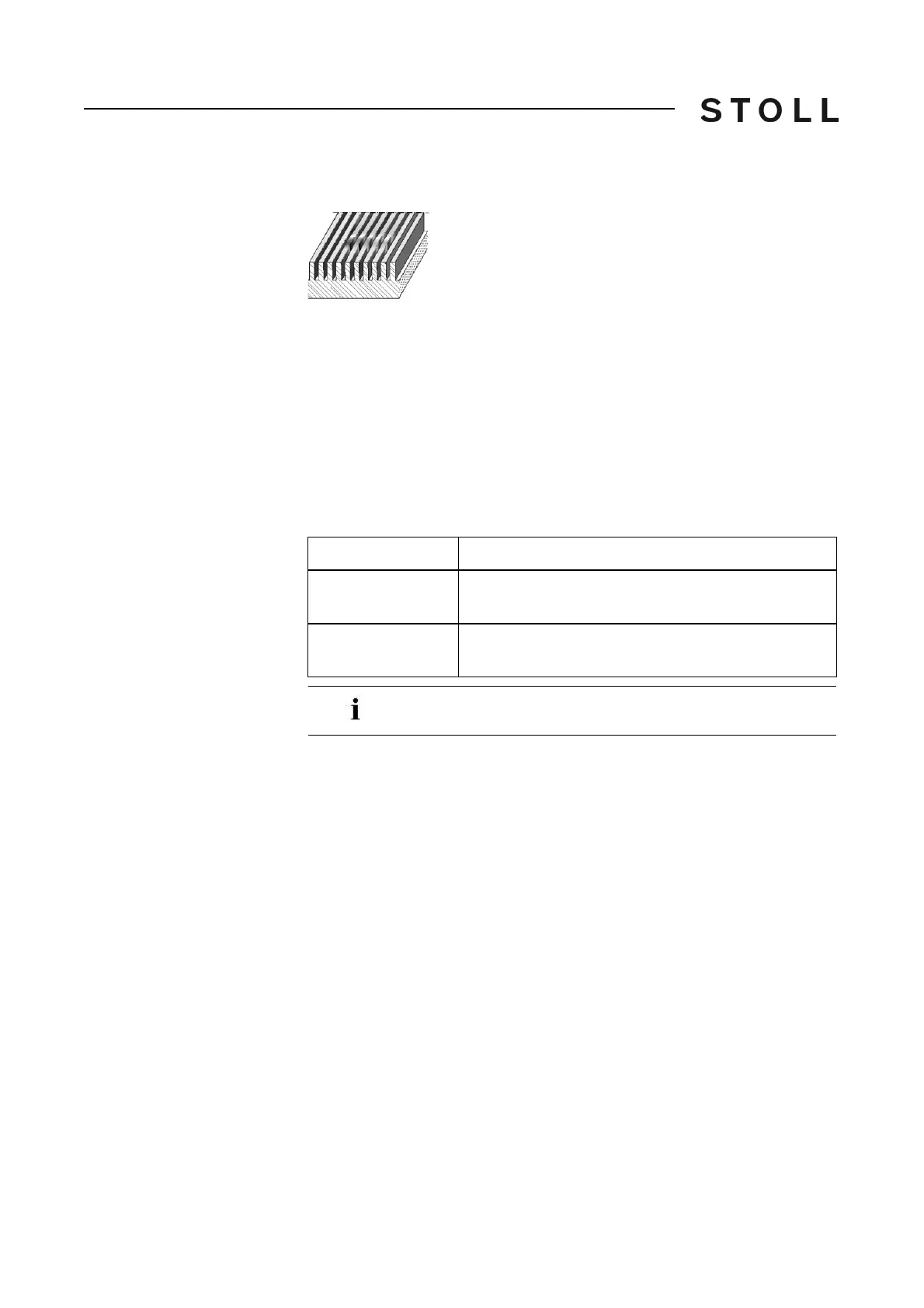

Damaged ne edle bed
Damaged needle bed
If the carriage is blocked, the needle bed may be damaged. This means that
the movable parts (needles, coupling part, intermediate slider and selection
jack) do not move smoothly or are blocked. This damage must be eliminated
carefully and conscientiously before the machine is started up again. If it is not,
a risk of the carriage blocking again immediately and damaging the needle bed
again is present.
When performing repairs, the needle
bed typ
es must be determined. There
are two different versions: milled and combined needle beds. The additional
beds are always milled.
Milled needle bed 1.
If the carriage blocks, then separate the connection of the carri
age part to
the carriage. Move carriage to the next reversal point. Lift carriage part
from needle bed. Check cam parts for damage and remove broken
working butts from the moving parts.
2. Find the channel chisel and ch
annel file acce
ssories.
3. Remove the movable parts (needle, coupling part etc.) at the point of
damage.
Needle bed
Description
Milled
The grooves for the moving parts have been cut out of
the needle bed.
Combined
The needle bed is composed of individual stays. They
are inserted into a base plate and screwed down.
Repairs must be carried out very carefully and without the use
of force.
