2.4 Knitting system
Needle paths and design
2.4.1 Needle paths and design
Knitting system
Knitting system
Each knitting system can knit using the three-way technique without limitation.
Each needle can be controlled in seven positio
ns:
 Stitch
 Tuck
 out of operation
 Transfer
 Take-over
 Split - stitch/transfer
 Split - stitch/receiving
This
results in the following poss
ibilities during stitch formation:
 Stit
ch
 Tuck
 out of operation
 Transfer of stitches and tuck loops from the front to the rear needle b
ed or
vice-versa, even simultaneously in both directions
The selection system only selects the needles
which knit a stitch or tuck,
transfer or split-stitch. All other needles are not selected and do not sink the
stitches.

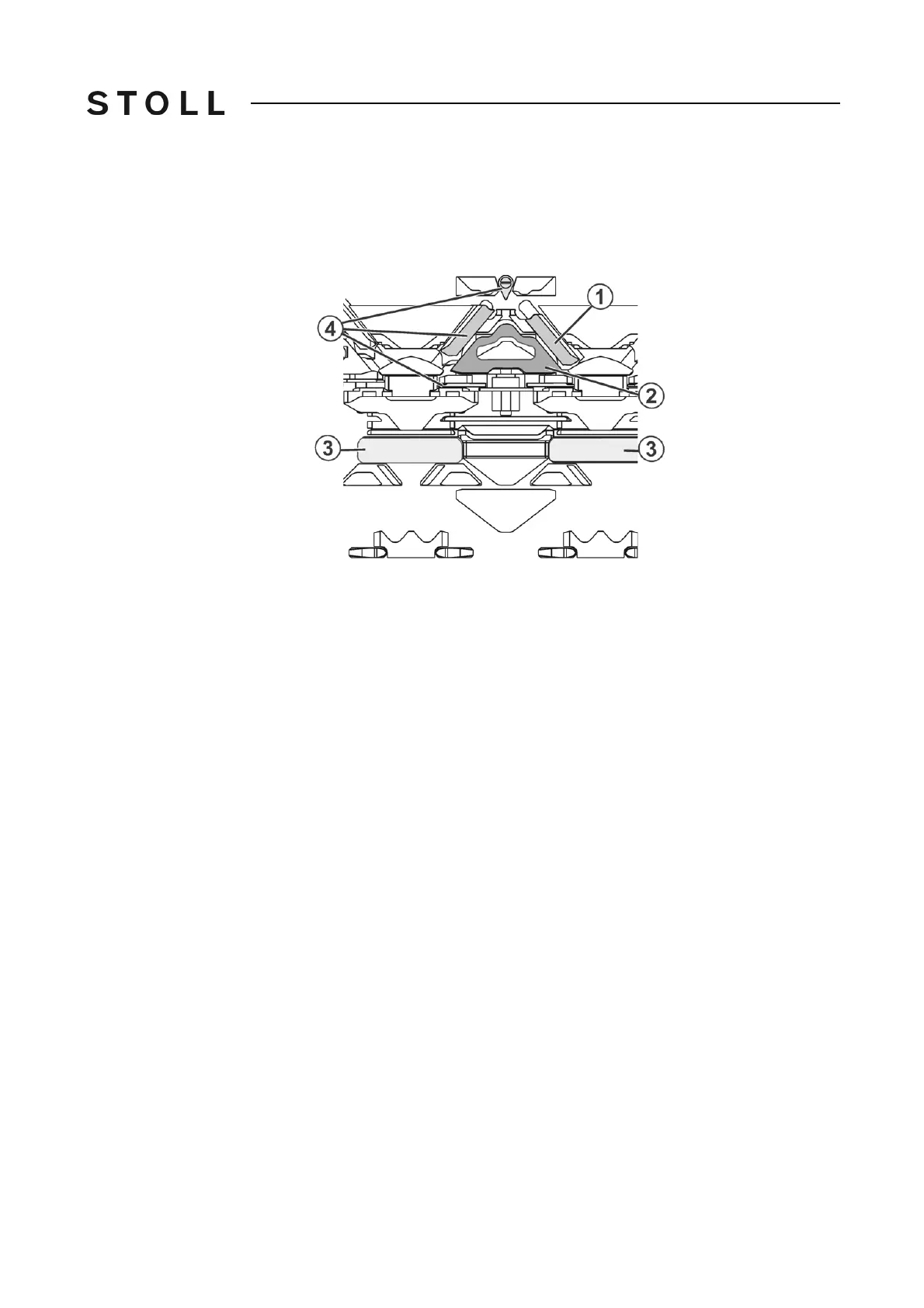

1 Stitch cam 3 Selection system
2 Raising cam 4
movable cams
