Description of knitting machine 2
Components of the knitting machine
Front sid e (CMS 830 C, CMS 822, CMS 740)
2.1.2 Front side (CMS 830 C, CMS 822, CMS 740)

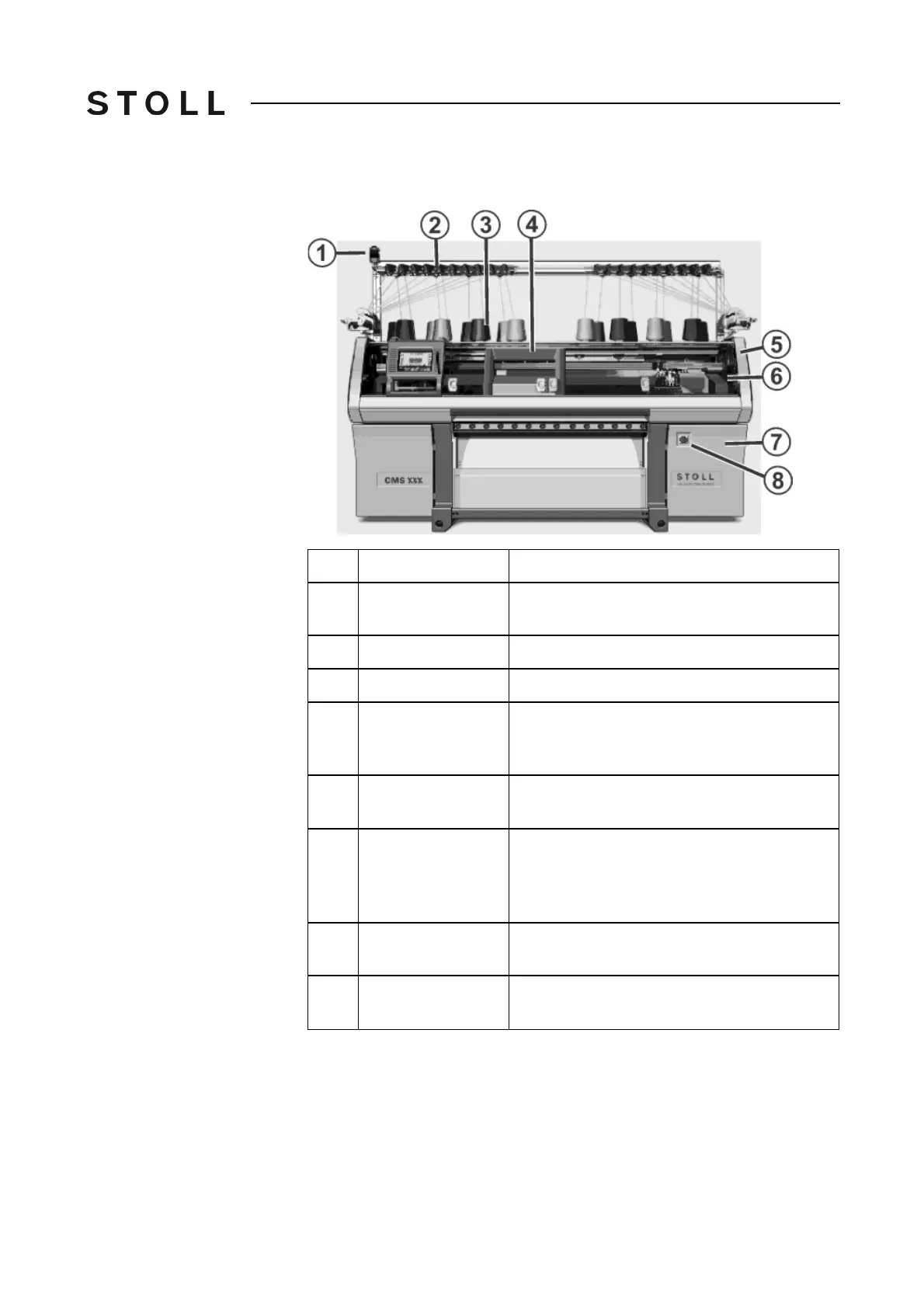

Overview machine elements 1
Overview machine elements 1
Label Explanation
1 Signal light It displays the operating state of the knitting
machine
2 Yarn control unit Tensions and controls the thread.
3 Bobbin board The bobbins are placed on it.
4 Carriage It moves over the needle beds. It controls the
work positions of each yarn carrier and each
and every needle in the needle bed.
5 Safety door (left,
right)
The reversing position of the carriage is
secured by the safety door.
6 Covers The entire traversing path of the carriage is
secured with a safety door. You have to forbid
everyone from reaching out into the running
machine.
7 Control (right-hand
side of the machine)
It controls the carriage run and the racking of
the needle bed.
8 Main switch Switching on and off of the machine.
EMERGENCY-STOP switch.
