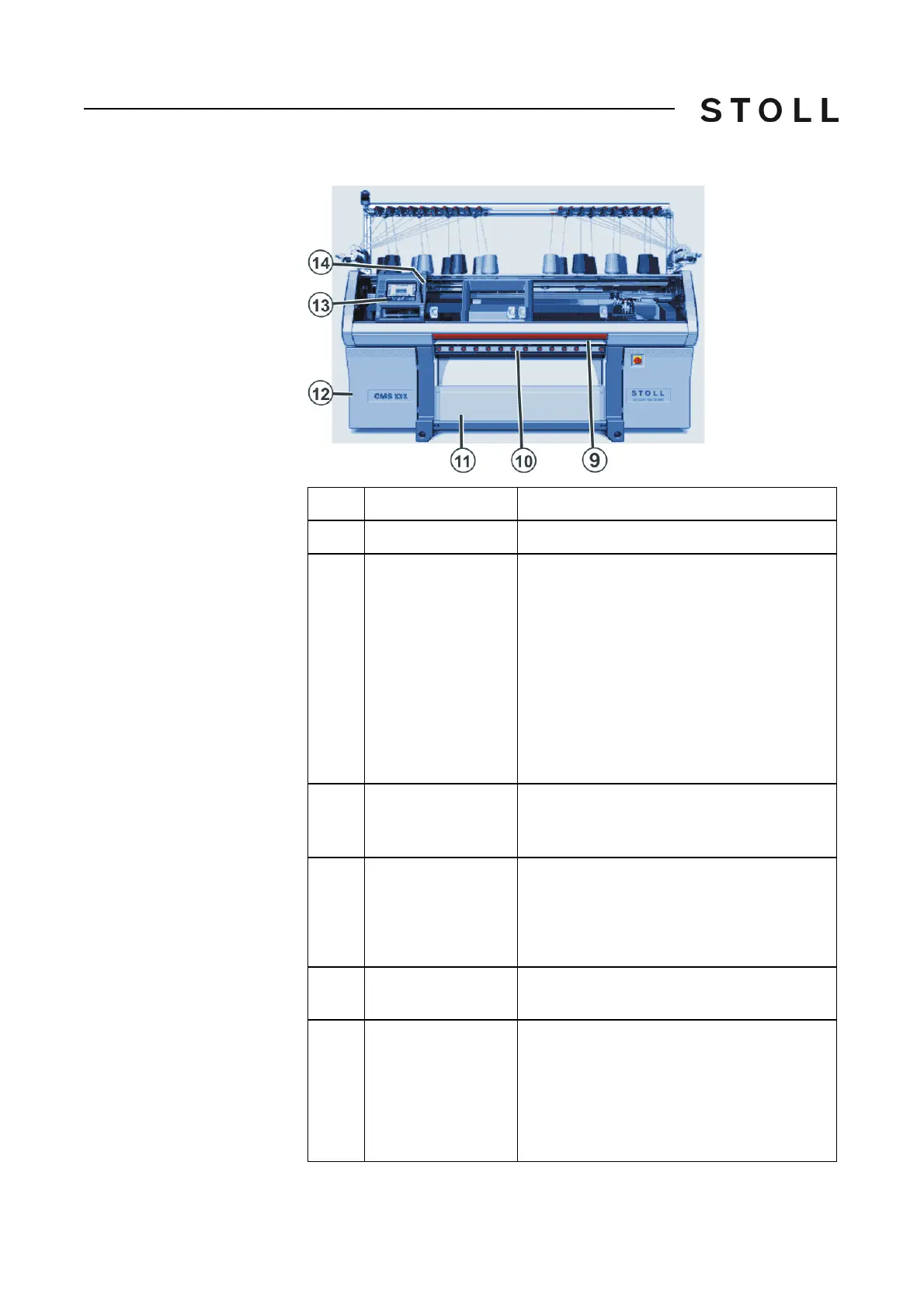

2 Description of knitting machine
Components of the knitting machine
Overview machine elements 2
Overview machine elements 2
Label
Explanation
9
Engaging Rod
It activates and stops the carriage run.
10
Fabric take-down
(main take-down,
auxiliary take-down,
comb take-down)
Main take-down:
Pulls the stitches away from the n
eedle
downwards to the fabric container.
Auxiliary take-down:
Grasps the fabric directly under the needle
be
d.
Comb take-
down:
With the comb take-down fabric pieces are
automatically started and press off after
completion.
11
Fabric collection
chamber
The fabric take-down guides the finished
fabric into the fabric collection chamber.
There the fabric is protected from soiling.
12
Control (left side of
the machine)
It controls the knitting process.
It saves the data of the knitting program.
It controls the needle selection and the motors
in the carriage.
13
Touch screen
The touch screen enables communication
with the machine control
14
USB port
Connection for a removable data carrier,
containing knitting programs, operating
systems and machine data.
Recommendations: Use USB Memory Stick.
Also possible
: Floppy disk drive, C
D drive,
DVD drive, external hard disk.
