Threading up yarns into yarn d eflector (CMS 520 C, CMS 830 C)
3.2.9 Threading up yarns into yarn deflector (CMS 520 C,
CMS 830 C)

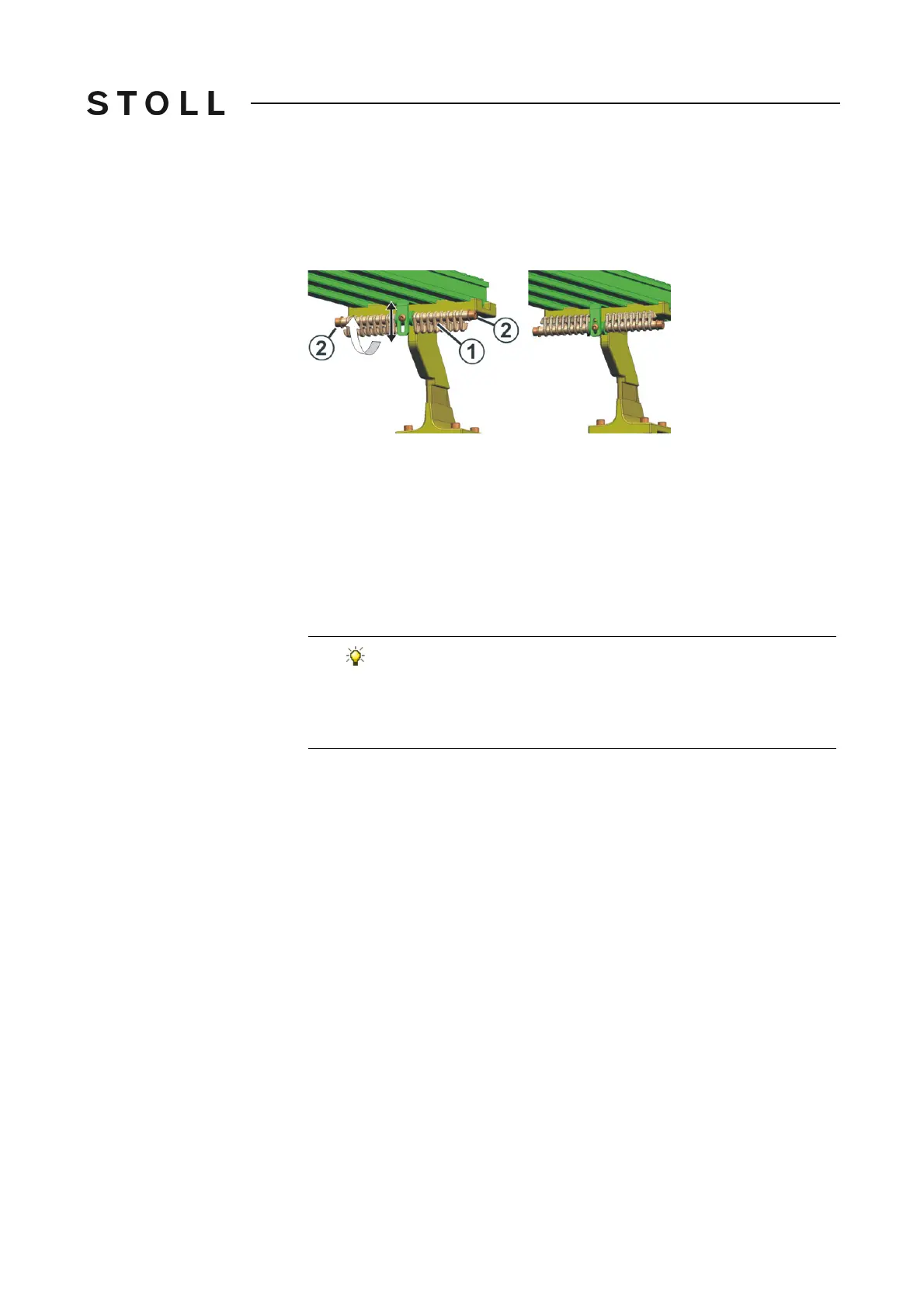

Lead the yarns through the yarn deflector (1) to the yarn carrier.
The height of the yarn deflector is adjustable.
Attention: If the yarn deflector is s
e
t too deep, then it may collide with the
suction tube of the fluff absorption.
The yarn deflector can be assembled in two positions:
 Opening of the eyelets downwards (stand
ard se
tting) – easier threading-
up
 Opening of the eyelets upwards – for this, loosen the screws (2), an
d turn
the front and rear yarn deflectors upwards. Retighten the screws.
With the thread also running over the friction feed wheel,
threading-up is easier if you activate the friction feed wheel
shortly (60 seconds). For this purpose activate shortly the
corresponding feed wheel ("Manual interventions" window),
see [118].
