Stoll CMS 520 C+ - Setting up the Pattern

177
Adjusting knitting machine 4
Basic settings
Setting up the pattern
4.1.19 Setting up the pattern
This menu can be used for fine adjustment of a pattern at the knitting machine.
While the machine is knitting, the corresponding data of the knitting program
are displayed for every carriage stroke. If required, changes can be carried out
directly in this menu via setting windows, or the corresponding menu is opened
for your input. To do so, touch the corresponding field.
Key for callin g up the Sett ing up the patte rn menu
Key for calling up the "Setting up the pattern" menu

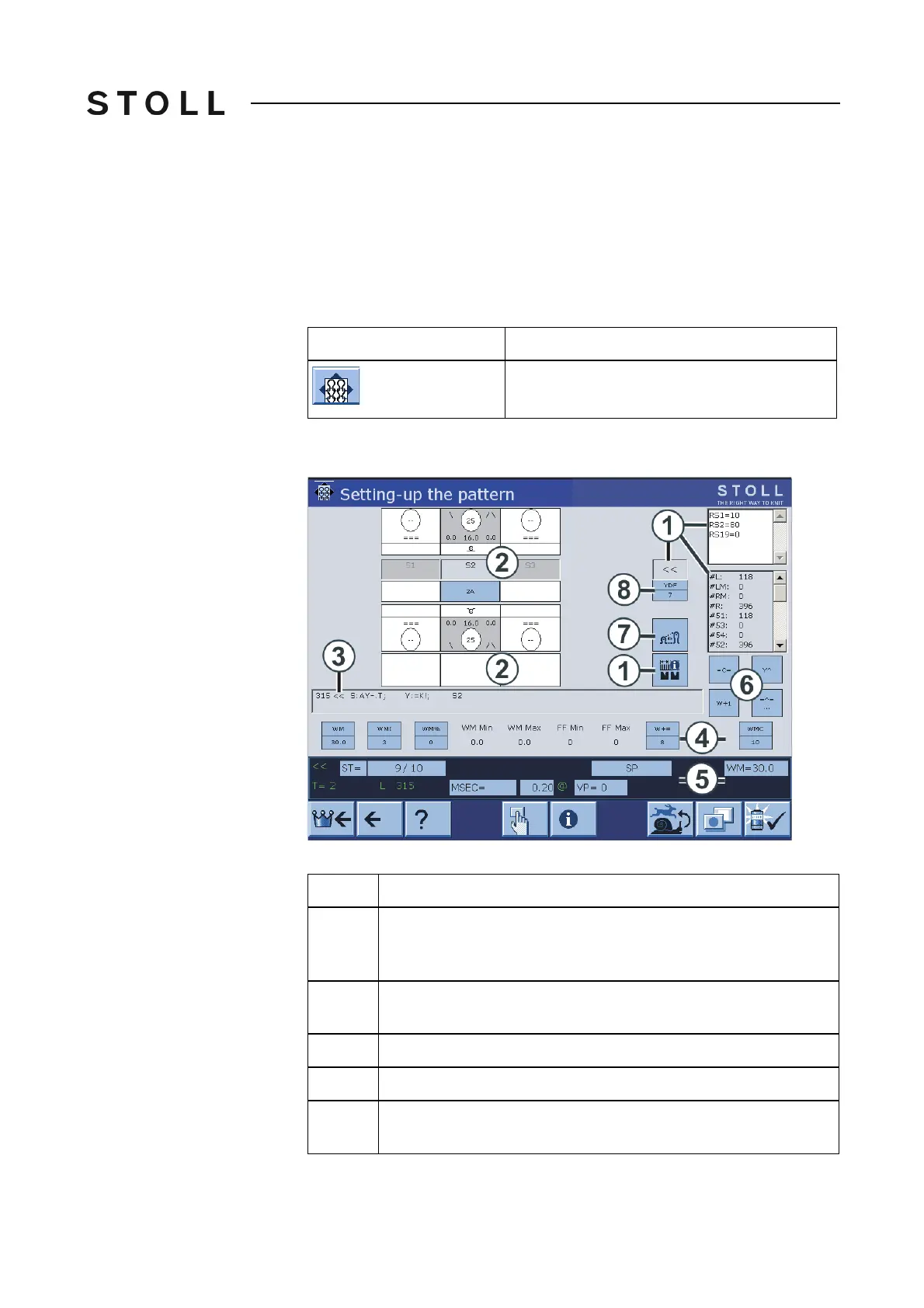

The window is structured into various areas:
Setting up the patter n window
"Setting up the pattern" window
Key Function
Call up the "Setting up the pattern" menu
Area Explanation
1 Display of: Carriage direction, cycle counters, SEN area, coupling
width (for tandem machine), counters. The active cycle counter is
highlighted. The values cannot be modified.
2 Setting up of the knitting systems: Needle action, stitch tension,
yarn carrier, jacquard line.
3 Current Sintral line
4 Fabric take-down values or fabric take-down function
5 Status line: Here the individual values can be changed or the
corresponding setting menu called up.
