223
Adjusting knitting machine 4
Advanced adjustments
Adjusting yarn carrier limiters

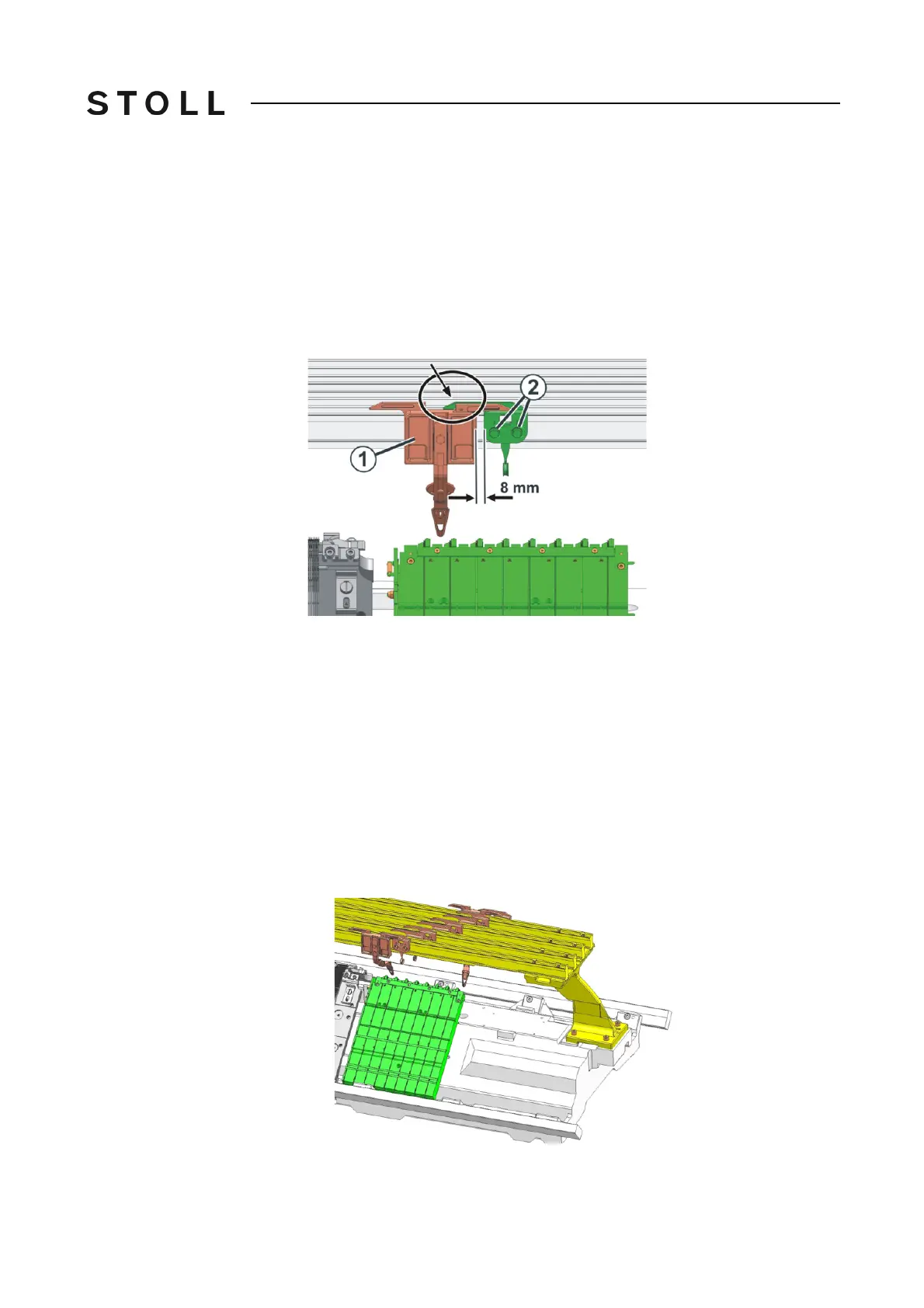

4.2.16 Adjusting yarn carrier limiters
not for CMS 502 HP+ The yarn carrier limiters are correctly adjusted if
each yarn car
rier is positioned after its clamping point and before the
following clamping point.
the yarn carrier limiter is about 8 mm
away from its yarn carrier
(CMS 830 C, CMS 520 C: 15 mm)
Adjusting y arn carrie r limiters
Adjusting yarn carrier limiters
Adjusting yarn carrier limiters:
1. Position the yarn carrier (1) on the trac
k 1 exactly between the clamping
point 1 and 2.
2. Loosen the screws (2) on the yarn carri
er limiter.
3. Displace the yarn carrier limiter until it
is 8 mm away from the yarn carrier
(CMS 830 C, CMS 520 C: 15 mm).
At this distance, the edge of the yarn carrier carriage and the sta
rt of the
bevel at the yarn carrier limiter are located at the same height.
4. Retighten the screws (2).
5. Repeat this setting process for
all the ya
rn carriers.
Staggering of yarn carrier limiters
Staggering of yarn carrier limiters
