2 Description of knitting machine
Carriage assembly
2.3.3 Central lubrication
All the machines with four or
more knitting systems are
equipped with a central
lubrication as a standard
equipment (not for CMS 822)

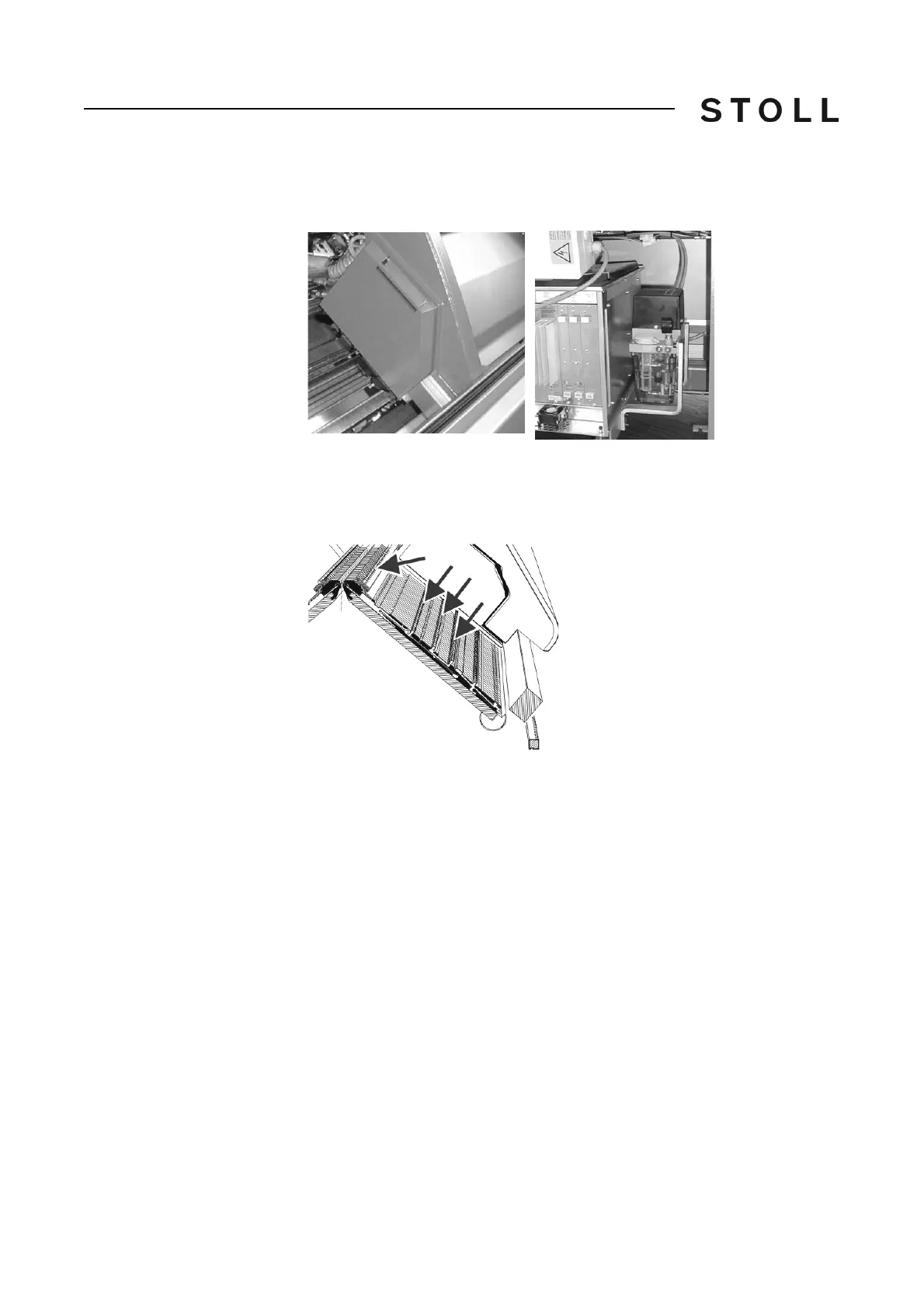

Central lubrication on carriage, on the right: Oil supply
It lubricates the working butts of the holding-down jacks, the coupling part and
the intermediate slider with oil. All other lubrication points must be lubricated
manually.
Lubricati on points of the central lubrica tion
Lubrication points of the central lubrication
