Stoll CMS 520 C+ - Replacing Intermediate Slider

387
Repairing the knitting machine 7
Replacing parts
Replacing intermediate slider
7.3.4 Replacing intermediate slider
There are different models depending on the machine type and the gauge.
Type 1
To replace the intermediate slider, you
need a small pair of pliers.

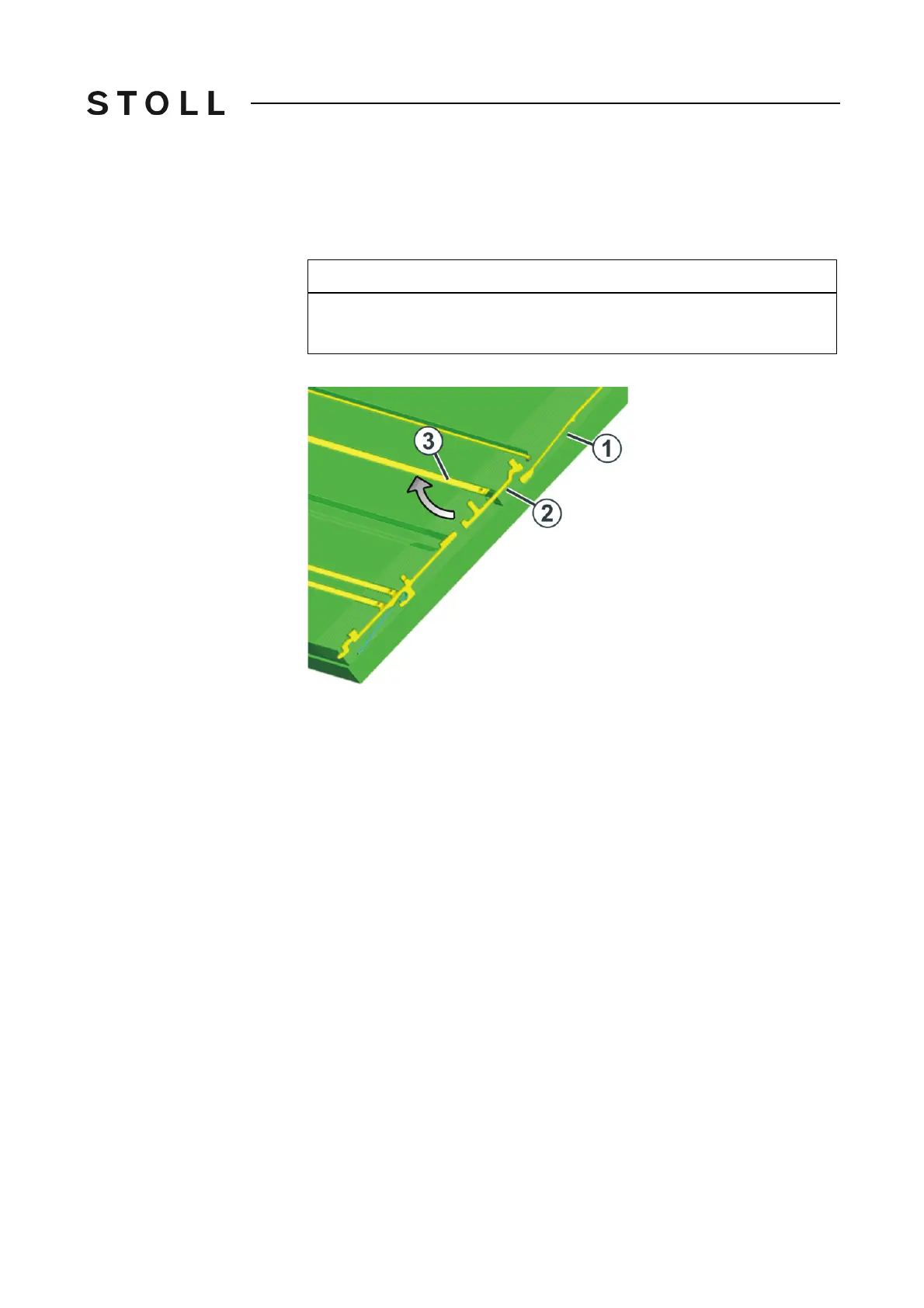

Replacing the intermediate slider
Replacing the intermediate slider
1. Push the needle and coupling part (1) upward.
2. Using the pliers, pull the lower butt
of the intermediate slider (2)
downwards out of the needle bed while pressing the upper butt into the
needle bed and pressing it under the cover rail (3).
3. Install the new intermediate slider in the reverse order.
4. Slide the needle and coupling pa
rt into the home po
sition.
Valid for:
CMS 822, CMS 530, CMS 520
E10 │ E12 │ E14 │ E16 │ E18 │ E6.2 │ E7.2 │ E8.2 │ E9.2
