7 Repairing the knitting machine
Replacing parts
Type 2
To replace the intermediate slider, you need a small pair of pliers.
Replacing the intermediate slider
Replacing the intermediate slider

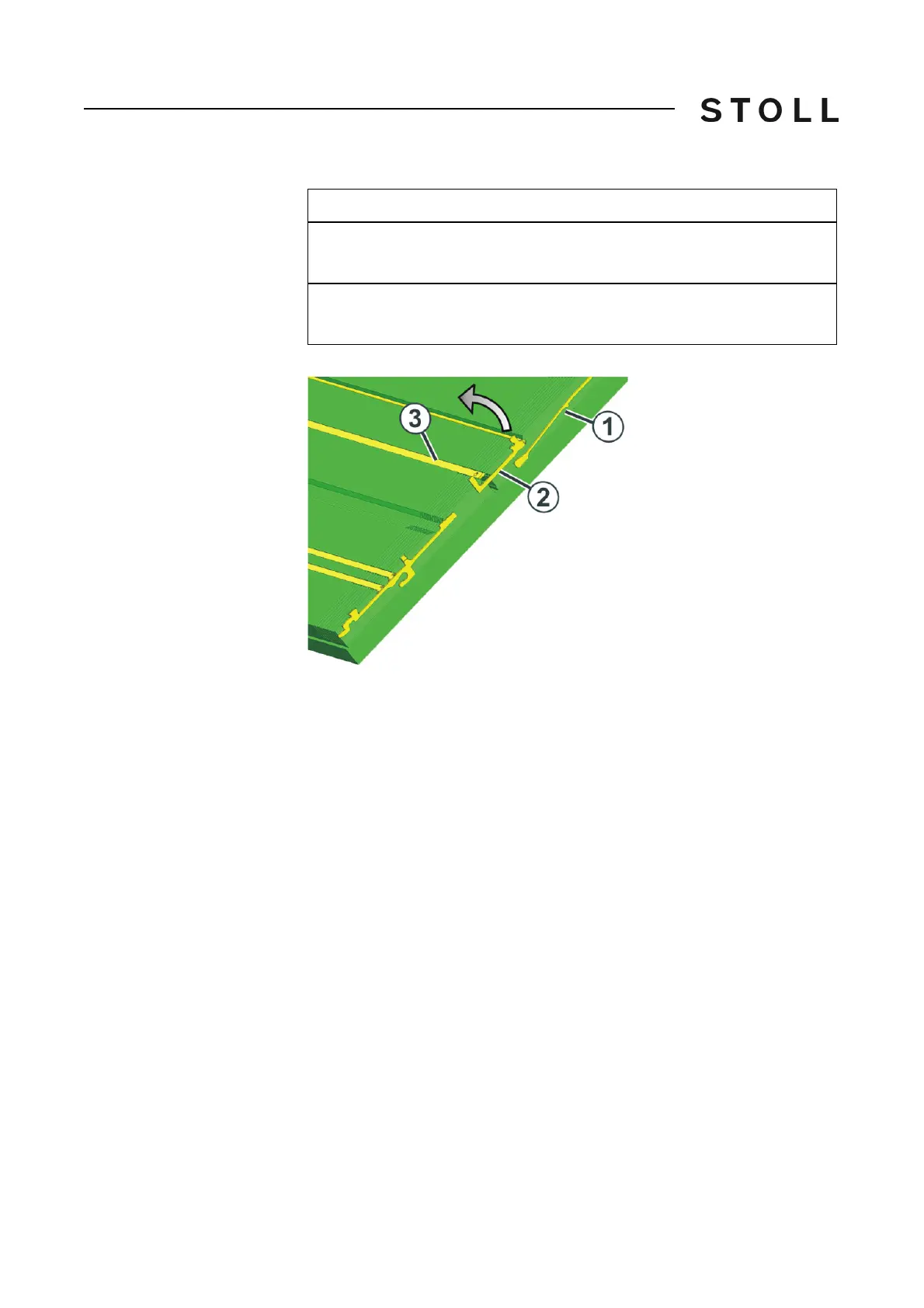

1. Push the needle and coupling part (1) upward.
2. Push the intermediate slider (2) unt
il the lower butt bumps into the cover
rail (3).
3. Pull the upper butt of the intermed
iate slider out of the needle bed while
pressing the lower butt into the needle bed and under the cover rail.
4. Install the new intermediate slider in the reverse order.
5. Slide the needle and coupling pa
rt into the home po
sition.
Valid for:
CMS 822, CMS 530, CMS 520
E5 │ E7 │ E8 │ E2,5.2 │ E3,5.2 │ E5.2
CMS 740, CMS 730 T, CMS 530 T, CMS 502
all gauges
