447
Repairing the knitting machine 7
Check fuses
Check fuses
7.5 Check fuses
Checking fuse (right control cabinet)
7.5.1 Checking fuse (right control cabinet)
1. Set machine main switch to "0".
2. Wait until the touch screen is dark.
3. Check fuses (1) to (4) at the rear of the right control unit.

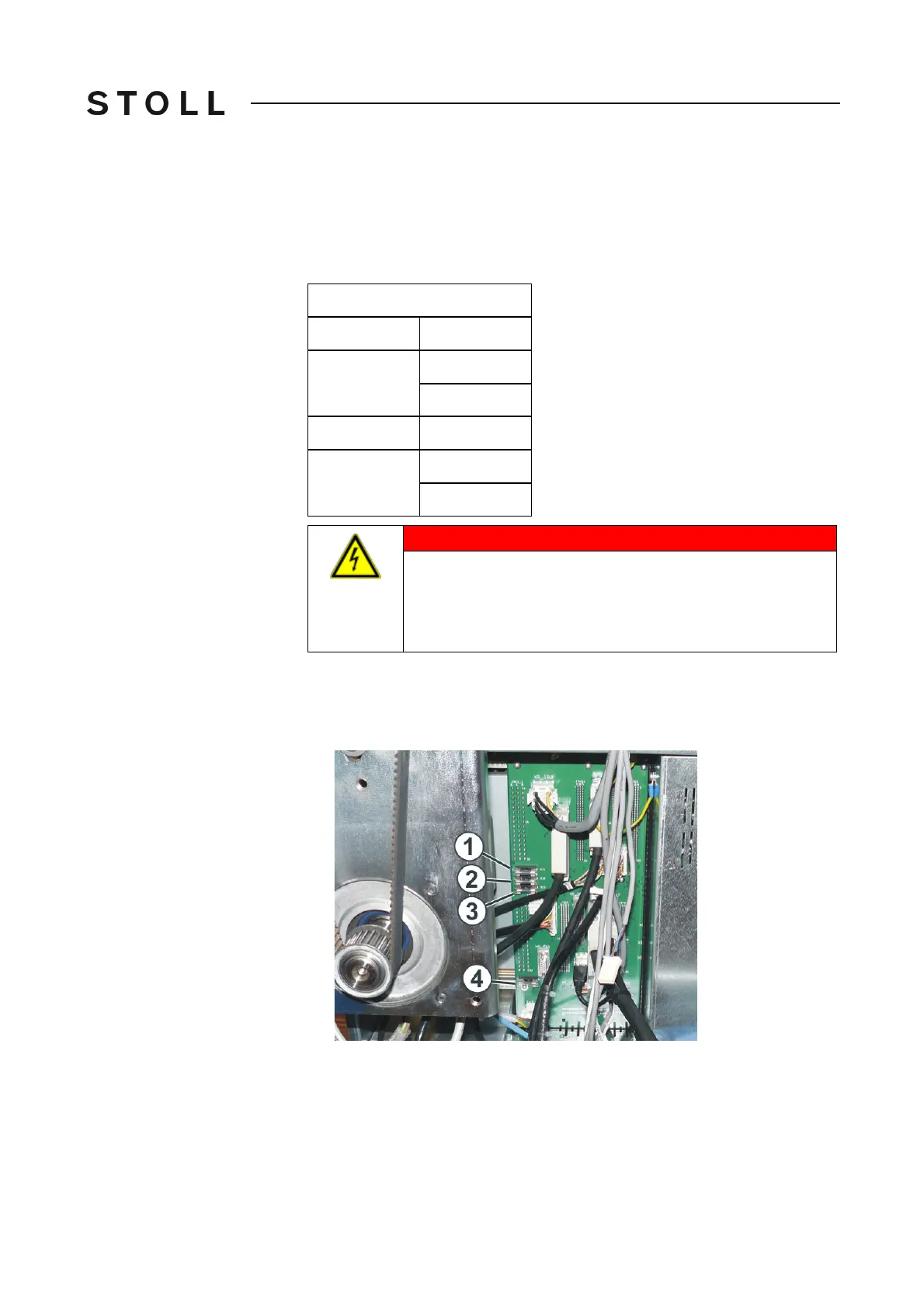

Fuses at the rear of the right control unit (for a better overview the fan was dismantled)
Fuses at the rear of the right control unit (for a better overview the fan was
dismantled)
Valid for:
Type
CMS 530
642
643
CMS 520 C
652
CMS 502
658
668
DANGER
Life-threatening high voltage!
Electrical shock may cause death or ser
ious injuries.
➜ Set main switch to "0" and wait un
til the touch screen is
dark.
1
28 V (stop motions) (1A,
slow-blow)
3
Yarn control unit (1A, slow-blow)
2
STIXX (1A, slow-blow)
4
Battery charge (1A, slow-blow)
