527
CMS 822 - Operating modes and particularities 10
Operating modes of CMS 822
Tandem machine with comb operating mode

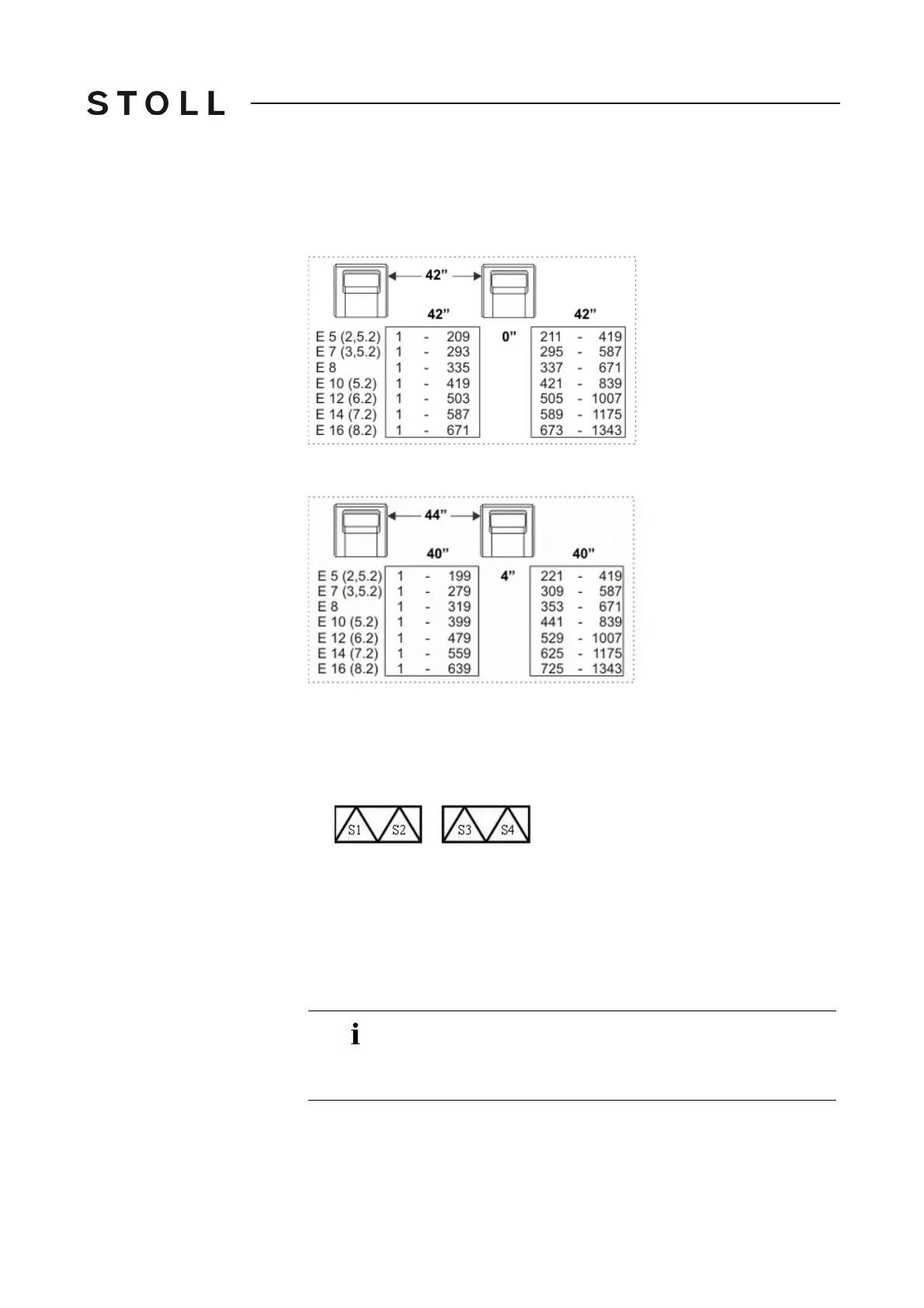

10.1.3 Tandem machine with comb operating mode
Coupling widths of 42" or 44" are possible with this operating mode.
Coupling width 42"
Needle area for coupling width 42"
Coupling width 44"
Needle area for coupling width 44"
Knitting program Special items in knitting program:
The two carriages function as one carri
age with a wide space between
"S2" and "S3" with system sequence "S1 S2 S3 S4".
The yarn carriers for the left fabric are positioned in the left yarn
clamping
and cutting device.
The yarn carriers for the right fabri
c are positioned in the right yarn
clamping and cutting device.
The comb start is knitted in with a ya
rn carrier via both fabrics. The yarn
carrier is transferred to the neighboring carriage via a swing stroke here.
The M1 pattern workstation supports program generation for
two-piece knitting. Additional information is found in the "M1
Online Help" (e.g. under the keywords "CMS 322 TC-M", "CMS
822", "Tandem CCC").
