Description of knitting machine 2
Yarn guide
2.2.3 Lateral yarn guide *

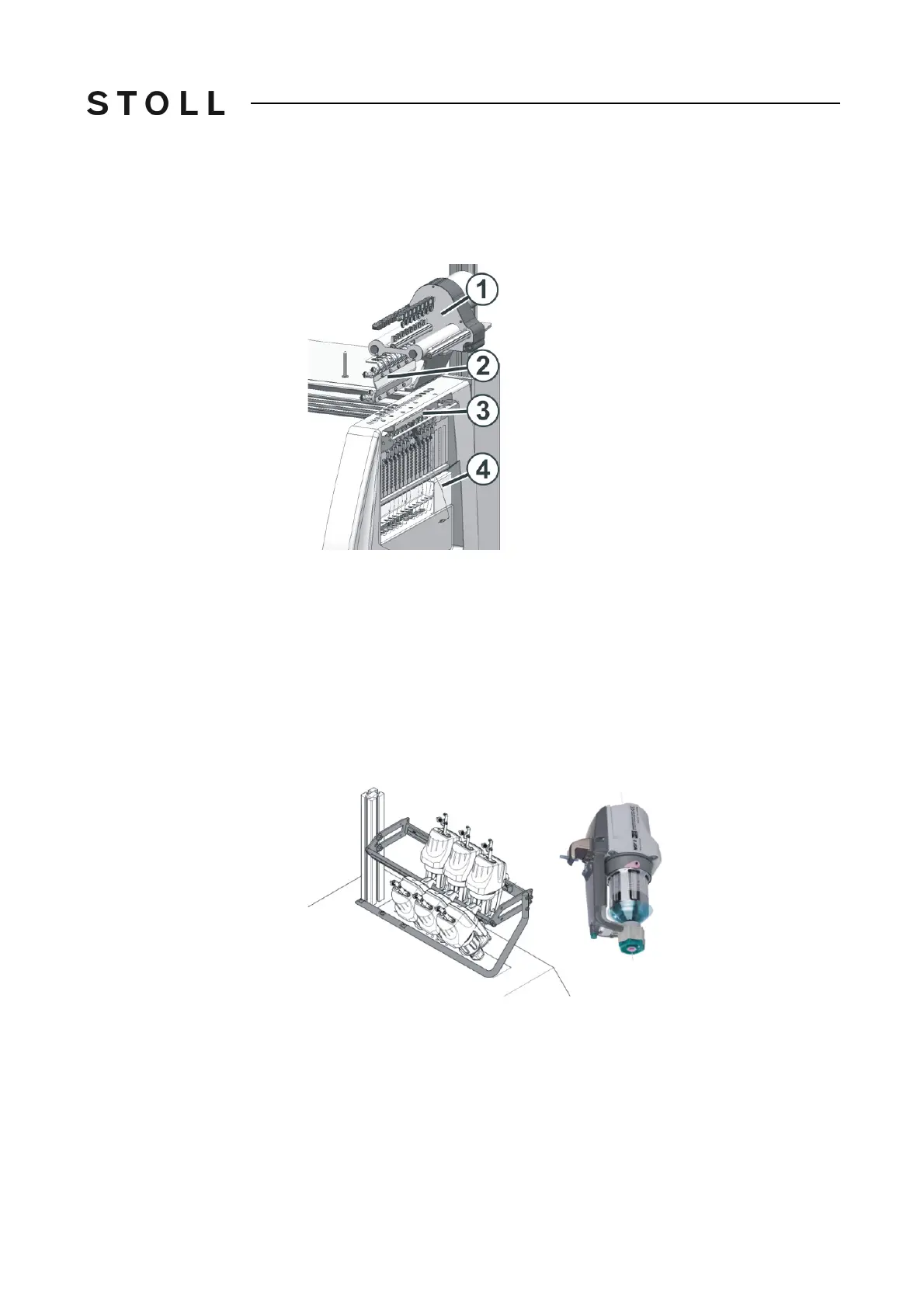

The friction feed wheel, the permanent brake, the active thread clamp and the
lateral yarn tensioner work together.
Lateral yarn guide
Lateral yarn guide
Friction f eed wheel *
Friction feed wheel * The friction rollers of the friction feed wheel (1) reduce the yarn tension.
Storage feed wheel MSF 3 *
Storage feed wheel MSF 3 * The feed wheel serves for intermediate storage of the thread. The cylindrical
coiling and the separately positioned thread layers offer a more even thread
tension when yarn is being drawn off than when drawing off the bobbin. Peaks
in tension are caught up and compensated by the feed wheel.
Storage f eed wheel MSF 3
Storage feed wheel MSF 3
According to use up to 6 feed wheels can be inserted on each machine side.
Further information:
Symbols in this document [16]
Active thread clamp
1
Friction feed wheel
3
Active thread clamp
2
Permanent brake
4
Lateral yarn tensioner
