7 Repairing the knitting machine
Replacing parts

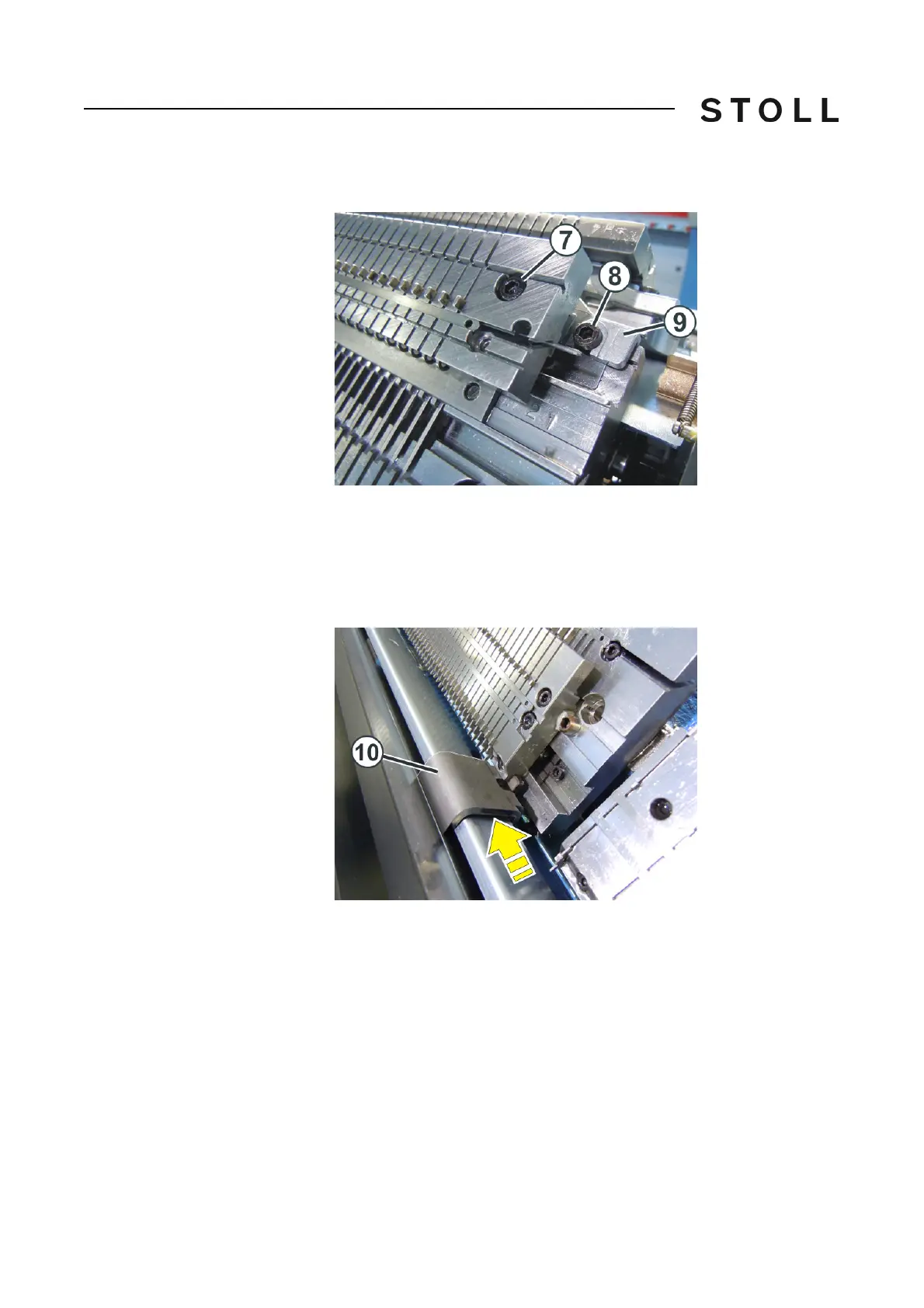

7. Loosen screws (7) and (8) on the left and right sides of the jack bed.
8. Remove the limiter (9) on both sides.
9. Position the needle bed at an angle to be able to pull out the wires m
ore
easily.
Use the needle bed swivel support (10) (special attachment). It prevent
s
the selection jacks from getting damaged when the needle bed is
positioned at an angle.
10. On the left and right side of the needle bed, position a need
le bed rota
ry
support (10) on the cover of the carriage guide bar and push it inward up
to the selection jack bed.
