397
Repairing the knitting machine 7
Replacing parts

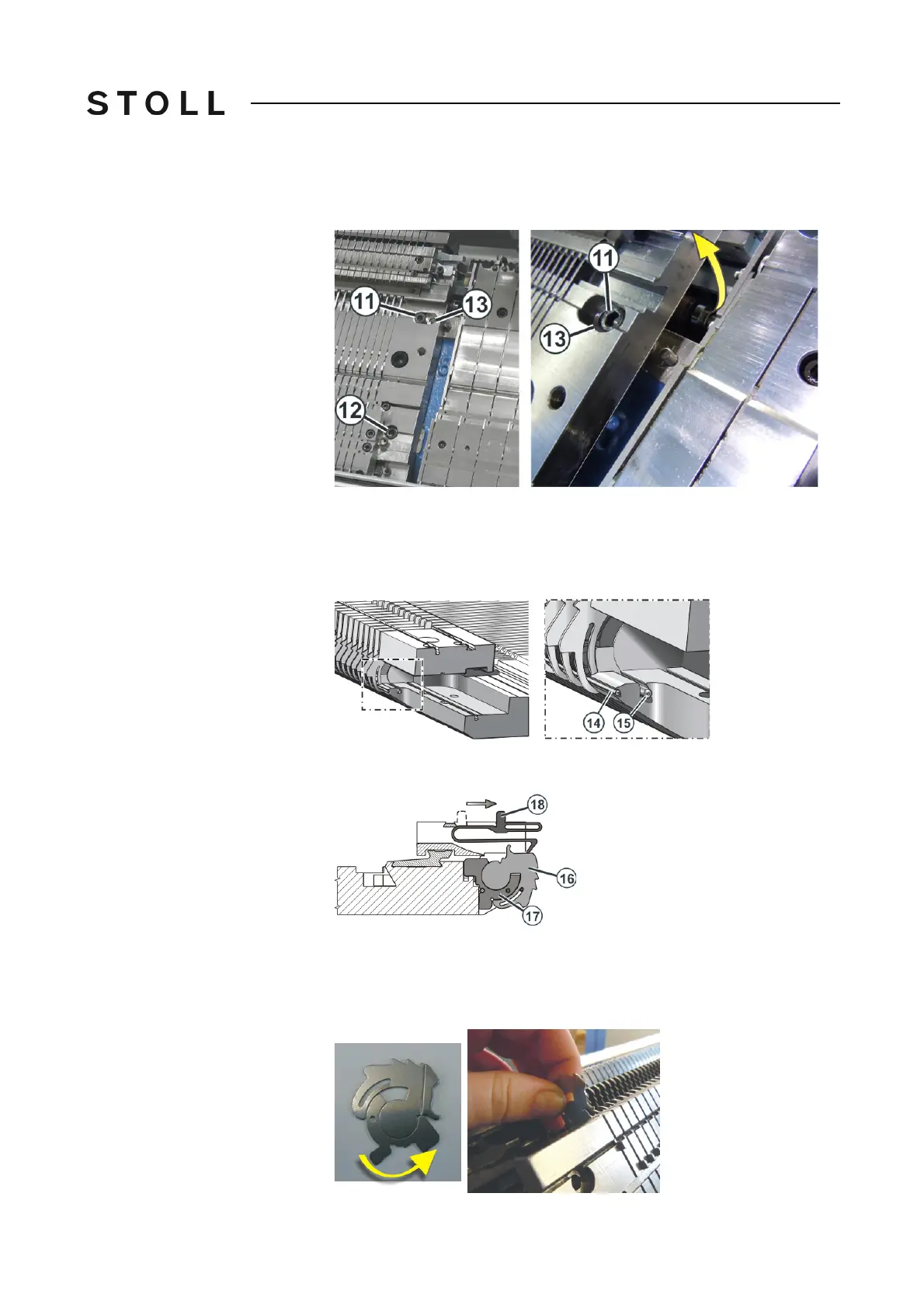

11. Remove the screws (11) and (12) on the left and right-hand sides of
needle bed.
12. On the left and right-hand sides of needle bed, uniformly screw-in the
screw (11) into the screw thread (13).
The needle bed is lifted by approx. 2 cm.
13. P
ull out the wire (14) and (15) up to the point of repair.
14. Remove the holding-down jack (16) using pliers. This also pulls out the
support (1
7).
15. Push the spring (18) of the defective holding-down jack into the "Position
cl
osed".
16. Combine the new holding-down jack and the support and screw into
"Position ope
n".
