216
4 Adjusting knitting machine
Advanced adjustments

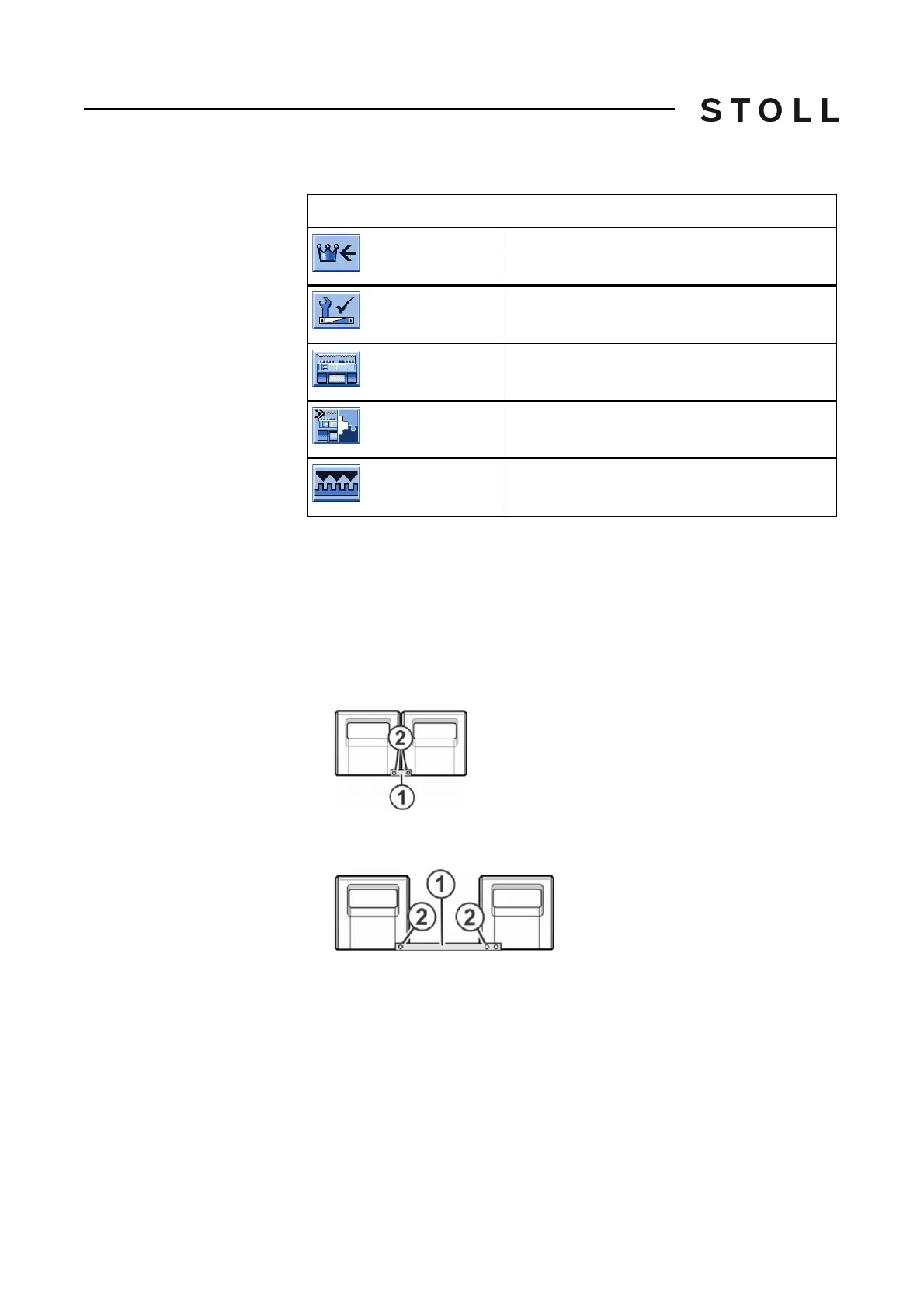

Coupling carriage assembly
wide or narrow
Keys for the work step coupling carriage assembly wide or narrow
Keys for the work step coupling carriage assembly wide or narrow
Couple Carriage Assembly
Wide
1. Program an empty row and fix the knitting specification.
2. Start the machine with the engaging rod and stop it again when the
ca
rriage is located shortly after the left reversing position.
3. Switch off 40 V power
supply.
4. Open the locking of the rear panel segments with the square spanner
from
the enclosed accessories and take off the segments.
Narrow co upling of carriage assembly
Narrow coupling of carriage assembly
5. Remove the screws (2). Take off the coupling rod (1).
Wide coupling of carriage assembly
Wide coupling of carriage assembly
Key
Function
Call up "Main menu"
Call up the "Service" menu
Call up the "Basic settings" menu
Open the "Machine configuration 2" menu
Call up "Reference runs" window
