Adjusting knitting machine 4
Advanced adjustments

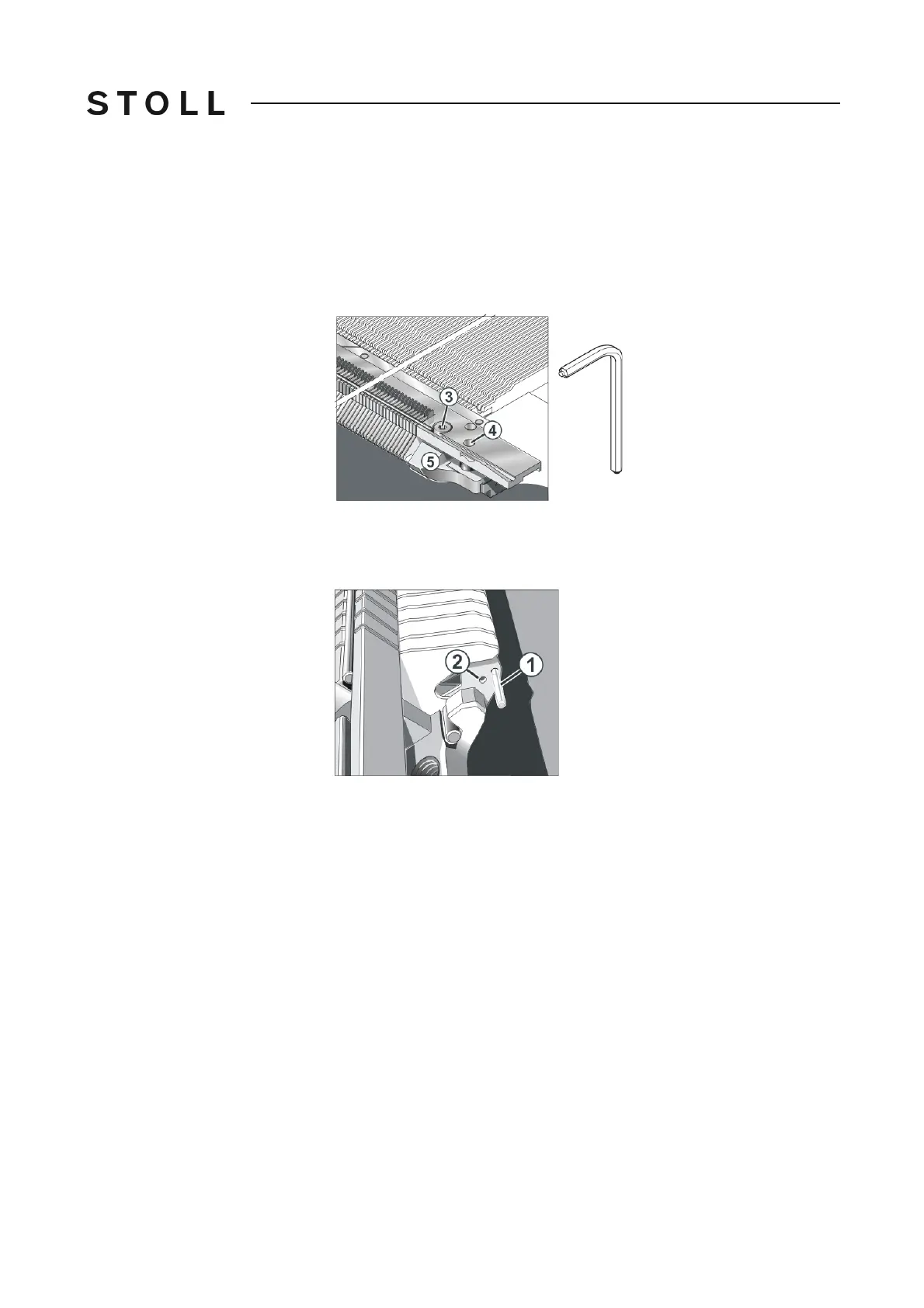

For replacing the knock-over wire you need a small pair of pliers.
1. Cast-off or transfer the stitches of the needle bed, which is converted.
2. Stop the carriage in the left reversing position.
3. Remove screw (3) on left and right-hand sides of jack bed. Use the sp
ecial
hexagon screwdriver from the accessories for this purpose.
4. Loosen the screw (4) on the left and right-h
and sides of the jack bed.
5. Remove the limiter (5) on both
sides.
6. Pull out the wire (1) with the pair of pliers.
7. Push in the wire in position (2).
8. Reassemble the needle bed in the rever
se order.
