Stoll CMS 520 C+ - Page 31

31
Description of knitting machine 2
Yarn guide

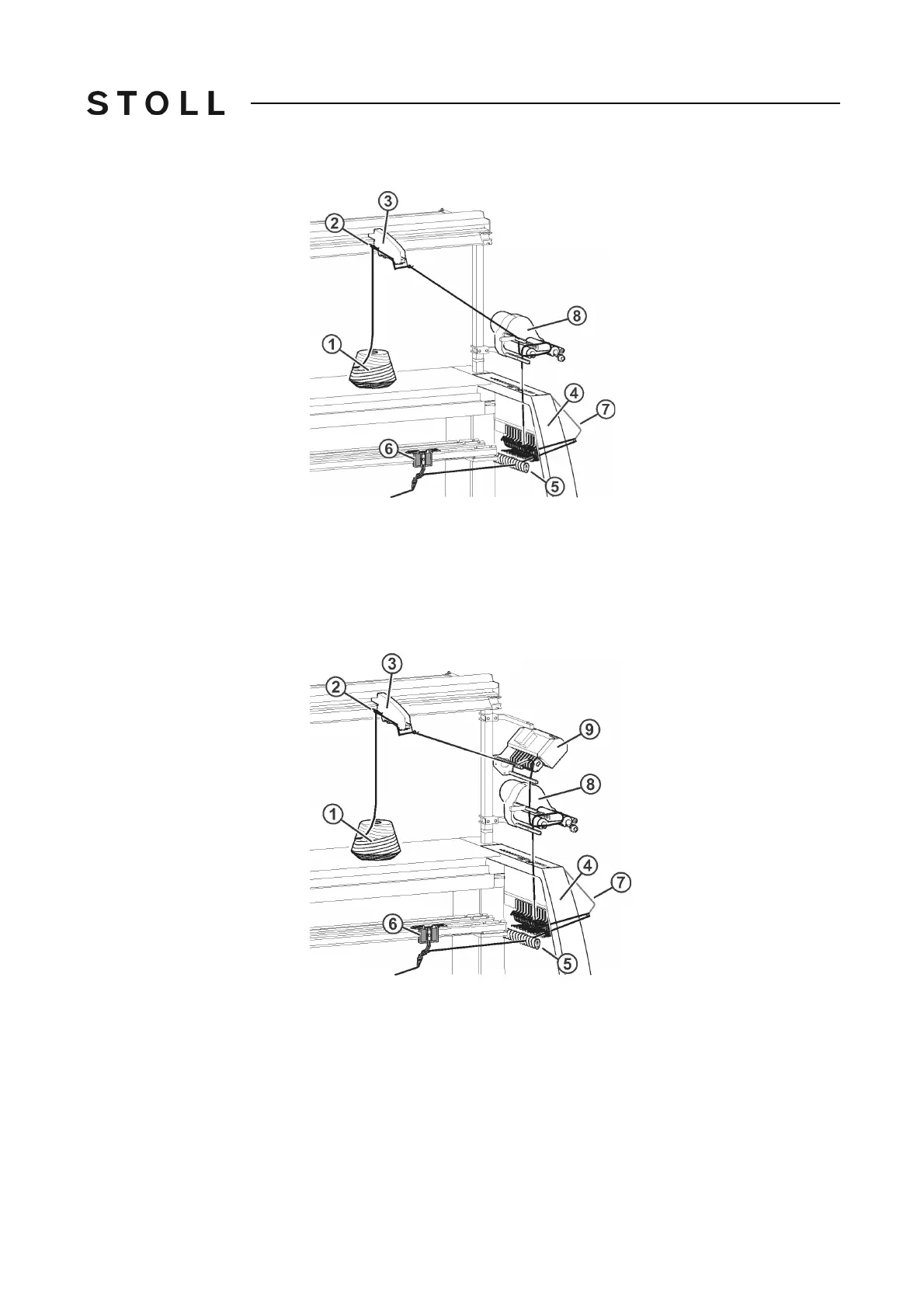

Course of yar n 3
Course of yarn 3
Course of ya rn 4
Course of yarn 4
1 Bobbin 5 Yarn deflector
2 Yarn guide bracket 6 Yarn Carrier
3 Yarn control unit 7 Lateral yarn tensioner
4 Safety door 8
Friction feed wheel
1 Bobbin 6 Yarn Carrier
2 Yarn guide bracket 7 Lateral yarn tensioner
3 Yarn control unit 8 Friction feed wheel
4 Safety door 9 Yarn length measuring device
(ASCON, STIXX)
5 Yarn deflector
