Setup Data 5
Setup1 - Editing the setup file
The "Setup data editor" window is open.

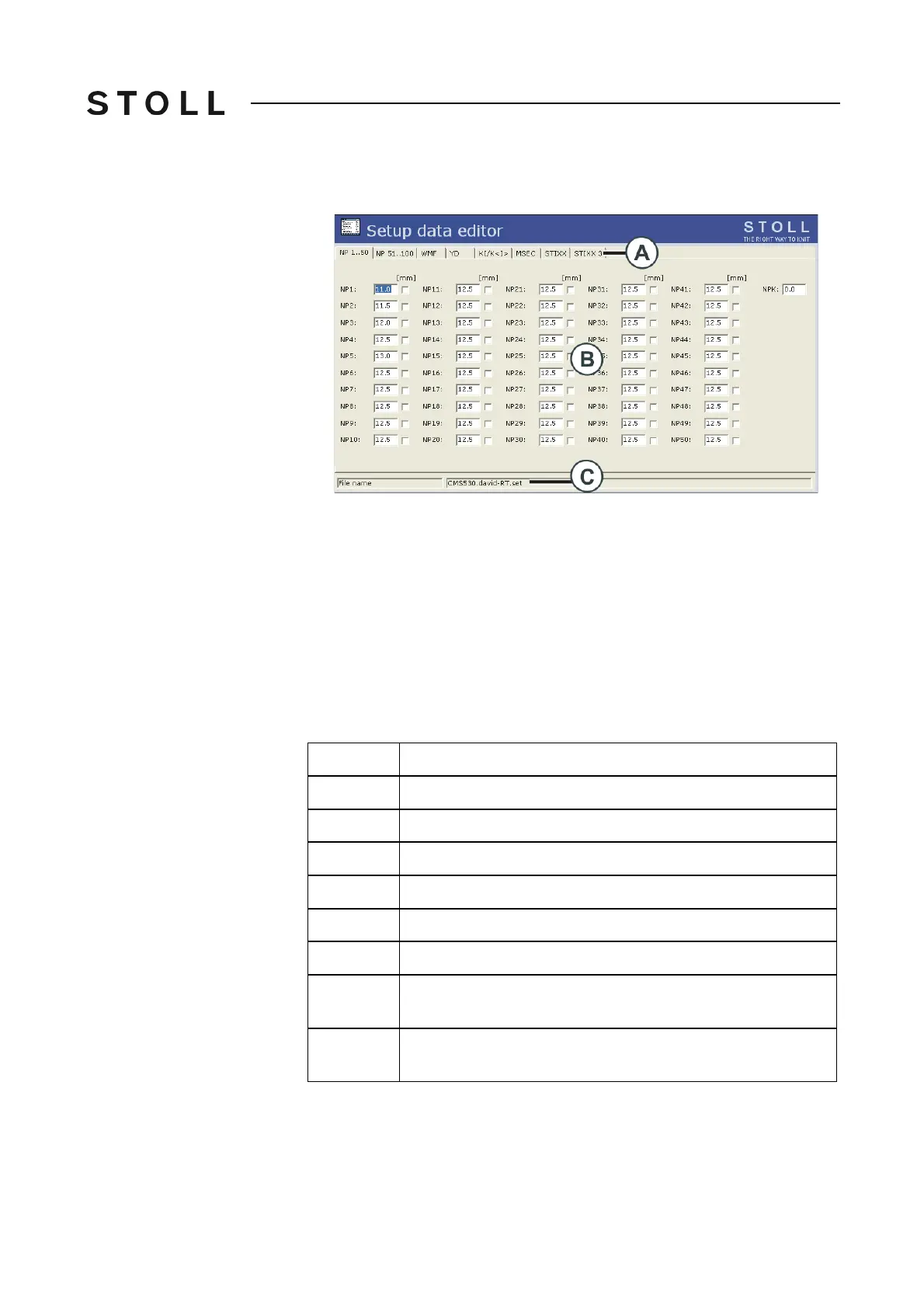

Setup data editor w indow
"Setup data editor" window
The "Setup data editor" window contains a maximum of 8 tabs:
Tabs in the Setup data editor window
Tabs in the "Setup data editor" window
A
Total of 8 tabs:
The STIXX and STIXX3 tabs are only displayed if a STIXX device is
connected.
B
Working area
changes, depending on the selected card.
C
Status bar:
with the file name of the loaded setup file.
Card
Meaning
NP 1..50
Stitch cam position with index 1 to 50
NP 51..100
Stitch cam position with index 51 to 100
WMF
Specifications for take-down value
YD
Distance between yarn carriers and fabric selvedge
KI/K<I>
Correction value of yarn carriers in fabric area
MSEC
Specifications for carriage speed in m/sec
STIXX
Specifications for the STIXX yarn length measuring device
(STIXX menu)
STIXX3
Specifications for the STIXX yarn length measuring device
(STIXX3 menu)
