Repairing the knitting machine 7

Replacing parts

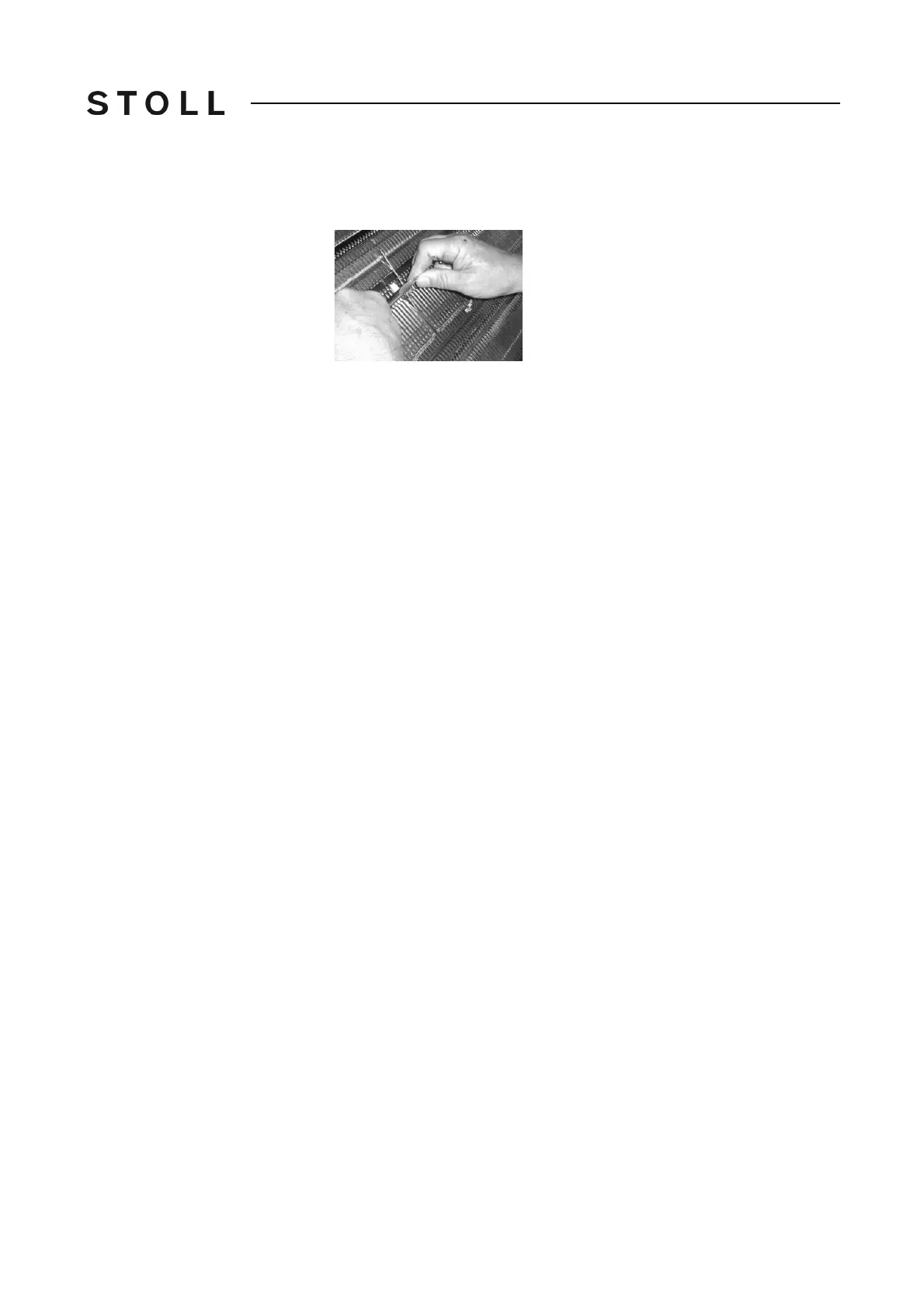

2. Inserting a new coupling part. Put pliers above butt of coupling part and

then push coupling part downwards by means of pliers.

Inserting a coupling part

3. Reassemble needle.
