7 Repairing the knitting machine
Replacing parts
10. Check whether the edges of the damaged stays have burrs. If this is the
case, carefully remove these burrs with the channel file.

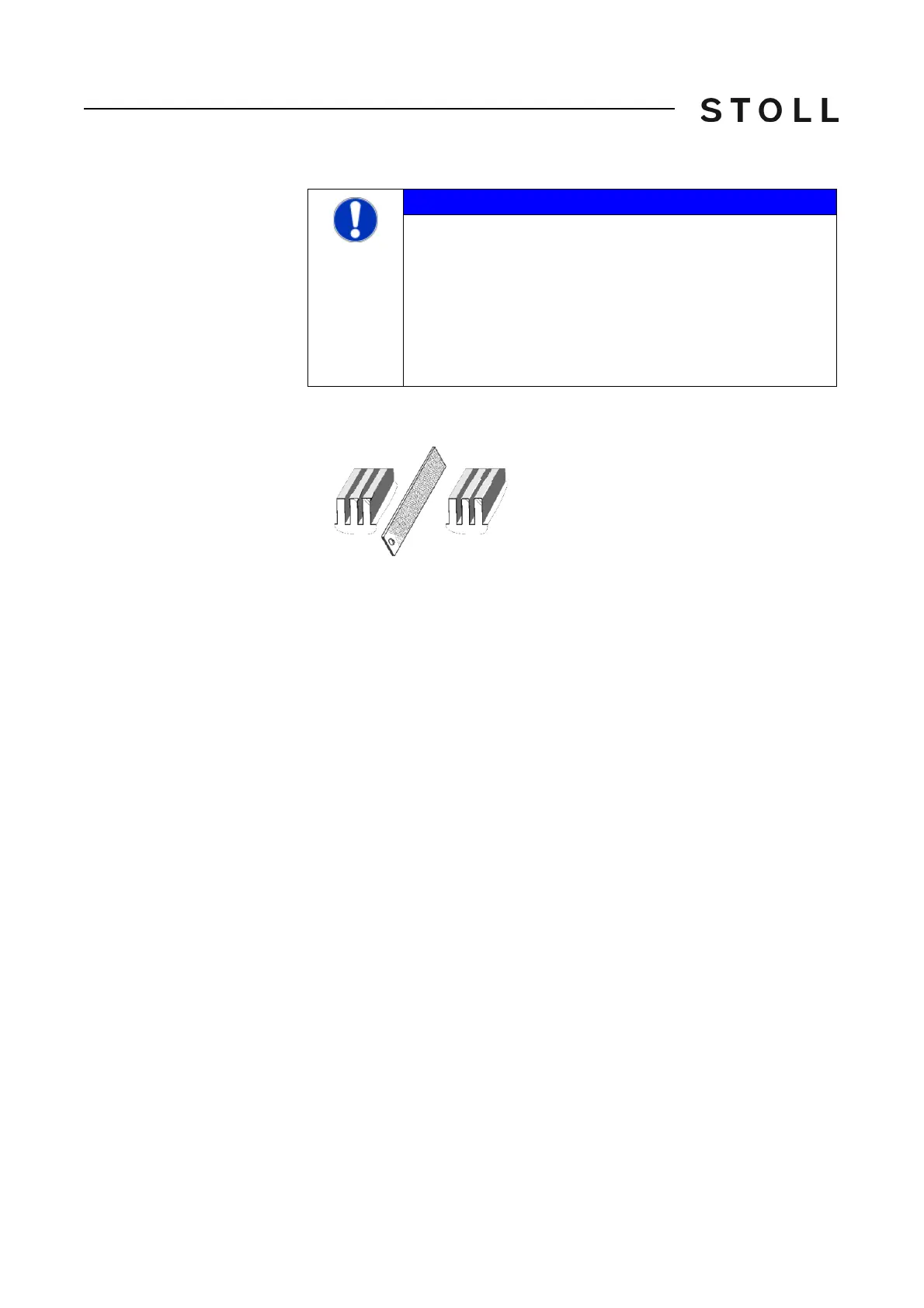

Removing burrs
Removing burrs
11. Check whether the needle bed elements move easily in the grooves.
Repeat step 5.
12. If everything is in order, carefully polish the needle bed with the ch
annel
file. Place the channel file flat on the needle bed and lightly move it back
and forth perpendicular to the needle channel.
13. The metal debris must be removed
from the
needle channels. For this
purpose, clean the area of repair with a brush.
14. If everything is in order, reinsert the moving parts into the needle b
ed.
Further information:
 Removing and mounting carriage part [409]
 Replacing needle and coupling part (CMS 530, CMS 502, CMS 822, CMS
803) [381]
 Replacing intermediate slider [387]
 Replacing selection jack [390]
NOTICE
The needle bed may be damaged if the channel file is used
improperly!
If too much of a stay is filed off, the needle bed is defective at
this point
and can only be repaired by a Stoll technician.
➜ Use the channel file for the removal of burrs only.
➜ The grooves must be cleaned carefully aft
er the channel
file is used
.
