Repairing the knitting machine 7
Replacing parts

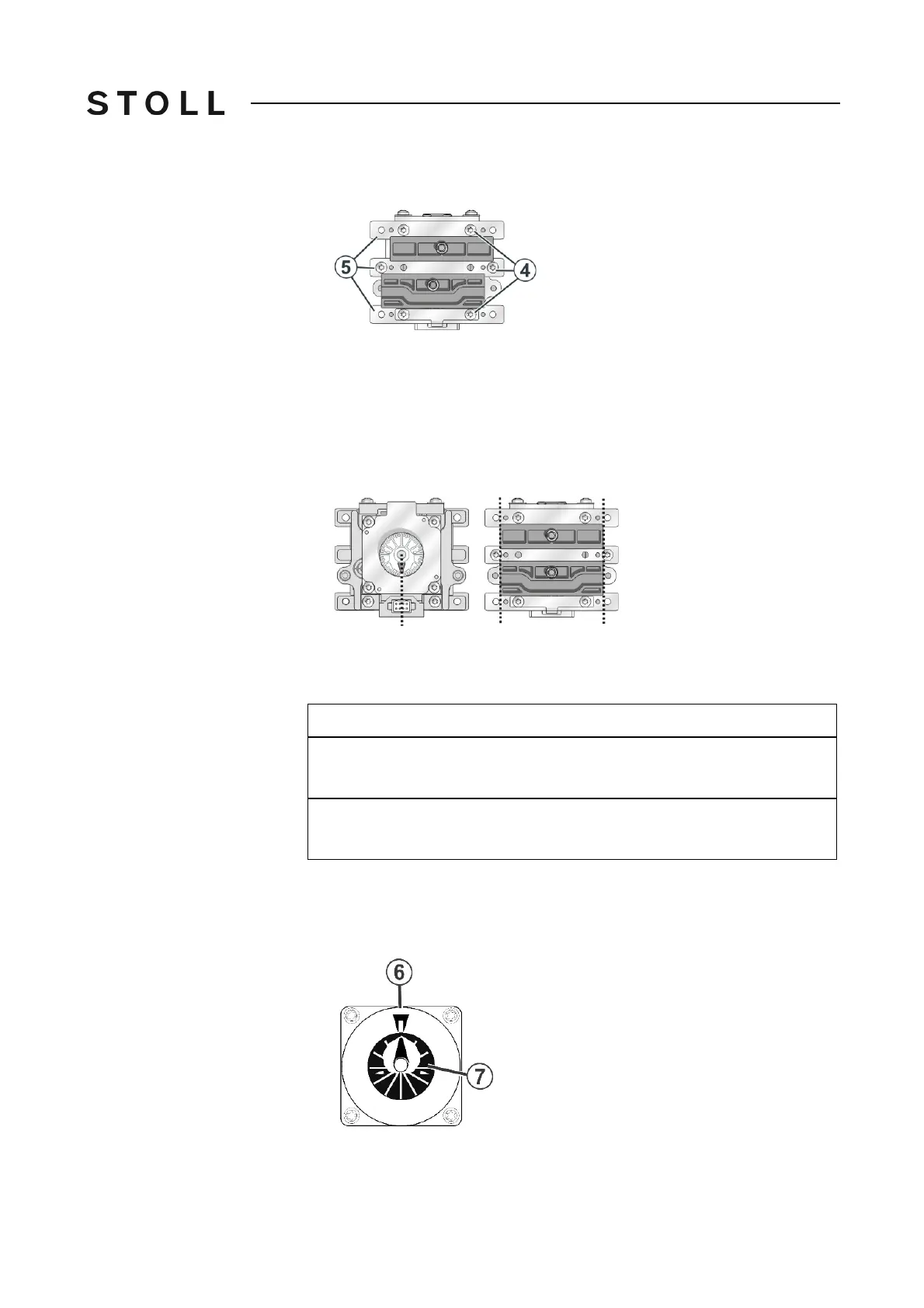

4. Remove the screws (4) for the defective gear rack.
5. Remove carefully the guide strip (5) and the gear rack.
6. Replace defective gear rack.
7. Mount the new gear rack and the guide bars.
8. Check whether the gear racks are
positioned cor
rectly. For this purpose,
turn the positioning disk (1) to the home position (6 o'clock).
 The gear racks must be aligned.
9. If this
is not the case, repeat steps 2 till 8.
 The
gear rack is replaced.
Type 2
Replacing gear racks:
1. Take off the step motor.
2. Rotate positioning disk (7) to the home
position (6).
Step motor home posit ion
Step motor home position
Valid for:
CMS 530, CMS 520, CMS 822, CMS 933, CMS ADF-3
E5 │ E7 │ E8 │ E2,5.2 │ E3,5.2 │ E5.2
CMS 740, CMS 730 T, CMS 530 T, CMS 502, CMS 830 C, CMS 520 C+
all gauges
