7 Repairing the knitting machine
Replacing parts

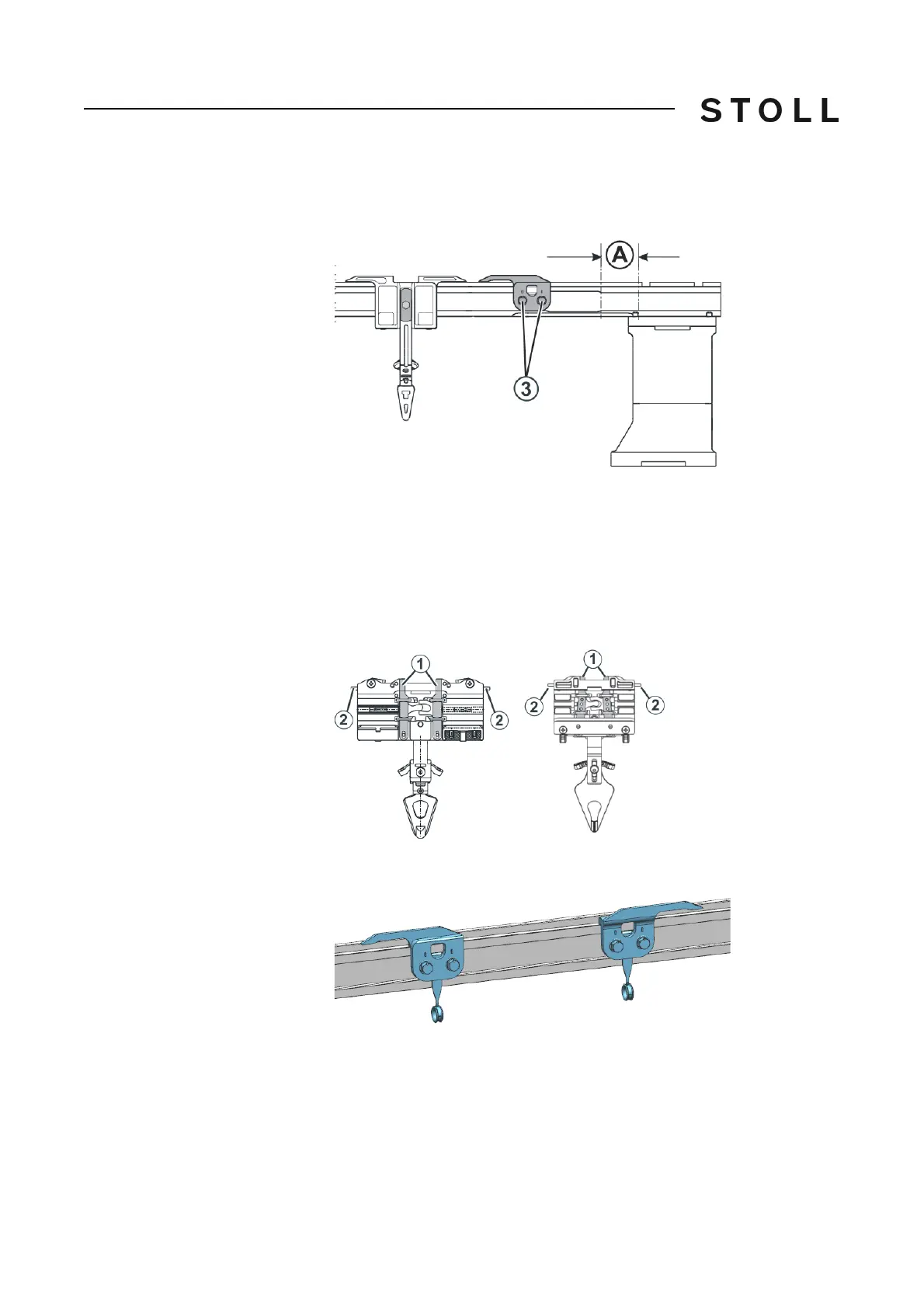

Mount intarsia yarn carrier:
1. Stop the carriage assembly into the left reversing position.
Yarn carrier limiter
Yarn carrier limiter
2. Loosen the screws (3) of the yarn carrier limiter.
3. To remove the yarn carrier limiters, turn the s
crews (3). The yarn carrier
limiters can be removed and mounted in any position.
4. Shift normal yarn carrier to the right to replacement point (A) and
remove it.
5. Mount the intarsia yarn carriers and push them into their starting po
sitions.
To do this, press the clamp (1) outward or the lifter (2) inward.
Intarsia yarn carrier
Intarsia yarn carrier
6. Place the yarn carrier limiter on the rails so that the ramp faces outward.
7. Position the yarn carrier limiters of yarn car
riers in a staggered way and
screw them on tight.
