441
Repairing the knitting machine 7
Eliminating faults in electronics system

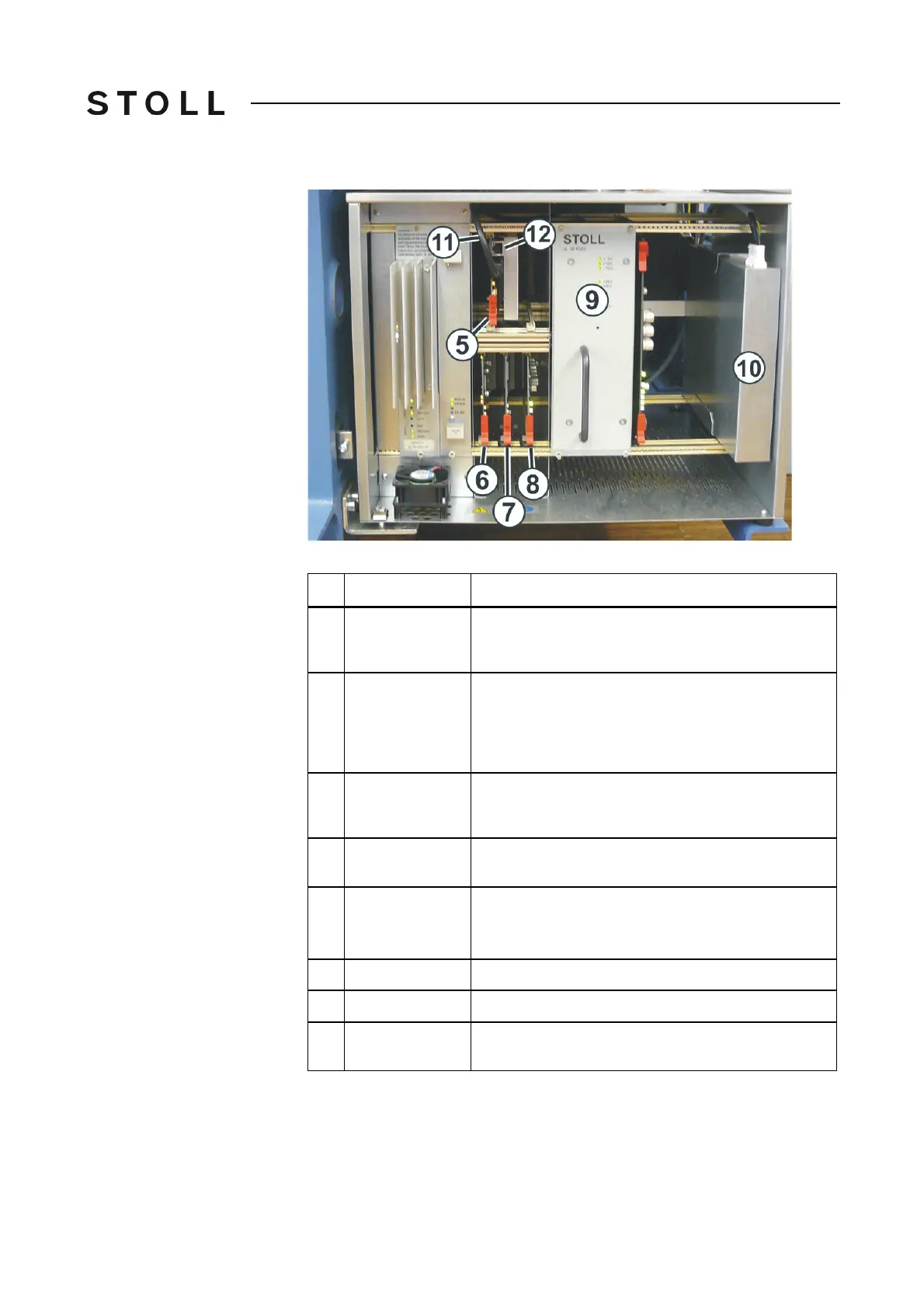

Right control cabinet
Right control cabinet
Electronic cards
Electronic cards
Further information:
Switch off machine at the end of work [10
1]
Card
Function
5
039
(ID 301 039)
Controlling the input unit and the touch screen.
Controlling the SSD hard disk (Solid-State-Drive). The
SSD hard disk is integrated on the board.
6
009
(ID 301 009)
Main computer; collecting all messages from the oth
er
cards. Output of instructions to the other cards. Control of
the knitting sequence.
Controlling the carriage (main drive) and the racking
position of the rear needle bed.
7
965
(ID 300 965)
Monitoring of the carriage assembly positions. Actuation of
the selection systems and the step motors. Forwarding of
the information to the board 943.
8
040
(ID 30 040)
Motor driver of the step motors of the stitch cams.
Cooperation with the card 965.
9
301 020
Power supply unit with LEDs
Checking the charging state of the batteries. Activating
charging.
10
301 027
Battery plug-in unit
11
Display cable
12
Socket for Ethernet connection, if the mac
hine is
interconnected.
