X35 Monitor Air Seeder Setup
6.15
6. For Connecting ECU(s);
a. Refer to Figures 6.17 & 6.18.
i. Make
sure that only the main ECU's
COMMS connector is connected to
the harness.
ii. The rest of the ECU's that are
required for the systems with more
than 4 tanks, ASC or blockage
monitoring (if these options installed)
must be disconnected.

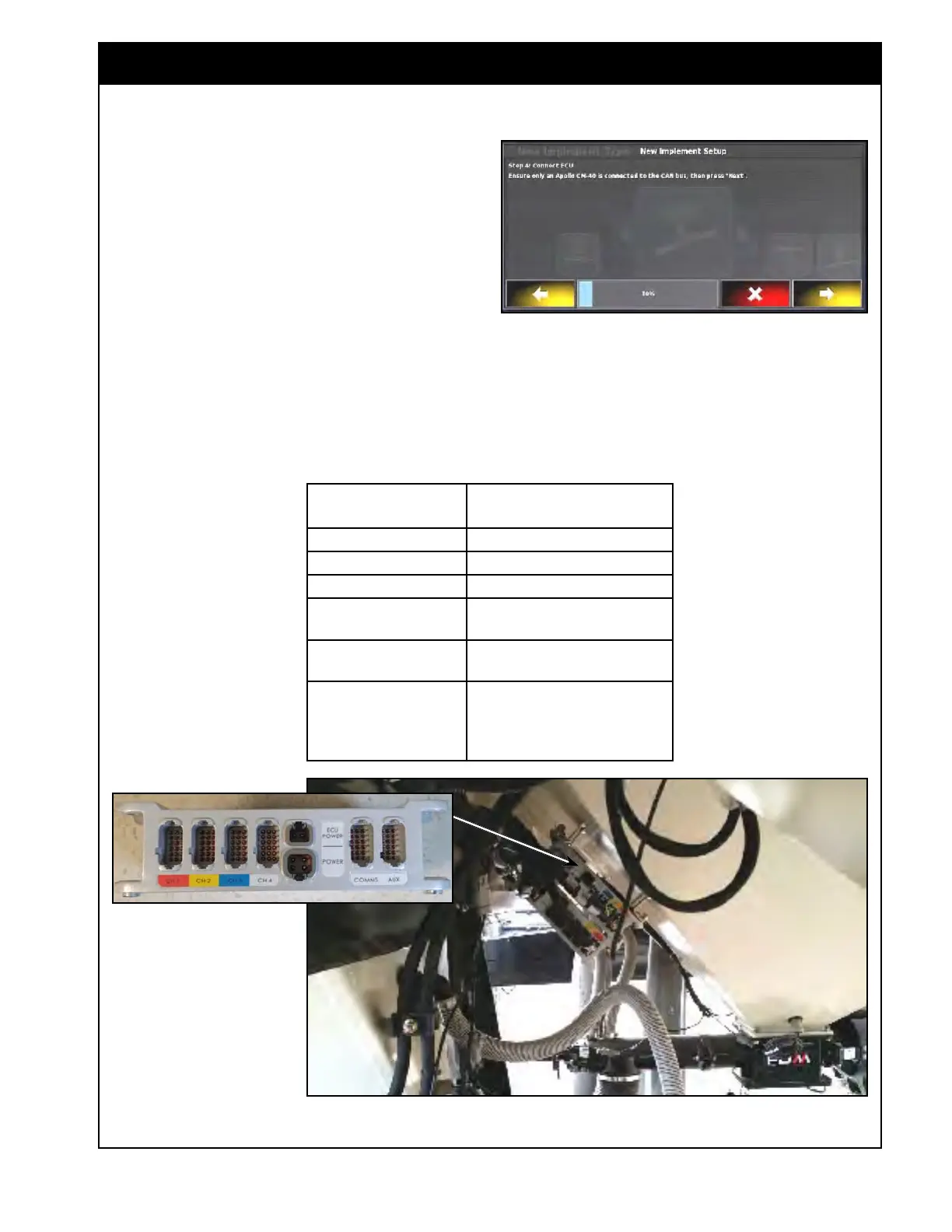

Figure 6.17 - Connect Apollo CM-40 #1
Important
Refer to the following table, when connecting
ECUs to make sure that the right ECU is
connected when prompted by the X35 console.
ECU
connections
Identification of ECU
by X35 console
Tanks #1-4 Apollo CM-40 1
Tanks #5-6 Apollo CM-40 2
Granular ASC Apollo EM-24 1
NH3/Liquid ASC Apollo EM-24 2, or EM-24 1
if no granular ASC
Pack Master Control Apollo CM-40 3, or CM-40
2 if only 4 or less tanks
Blockage monitoring Apollo EM-24 3, or EM-24 2
if only granular ASC or only
NH3/Liquid ASC, or EM-24
1 if no ASC
Figure 6.18 - ECU (CM-40)
To Next Page
