X35 Console System Components
1.9
1.8 Low Bin Level Sensors
Each air seeder compartment contains a single bin
level sensor installed near the bottom. The sensor
will trigger an alarm when there is no product in
front of it.
The X35 console provides a calculated
(not actual)
method of reporting the product remaining in the
tank.
a. This value is based on the metering auger
output in relation to the product amount
entered at time of fill.
b. This value should be used as reference only.

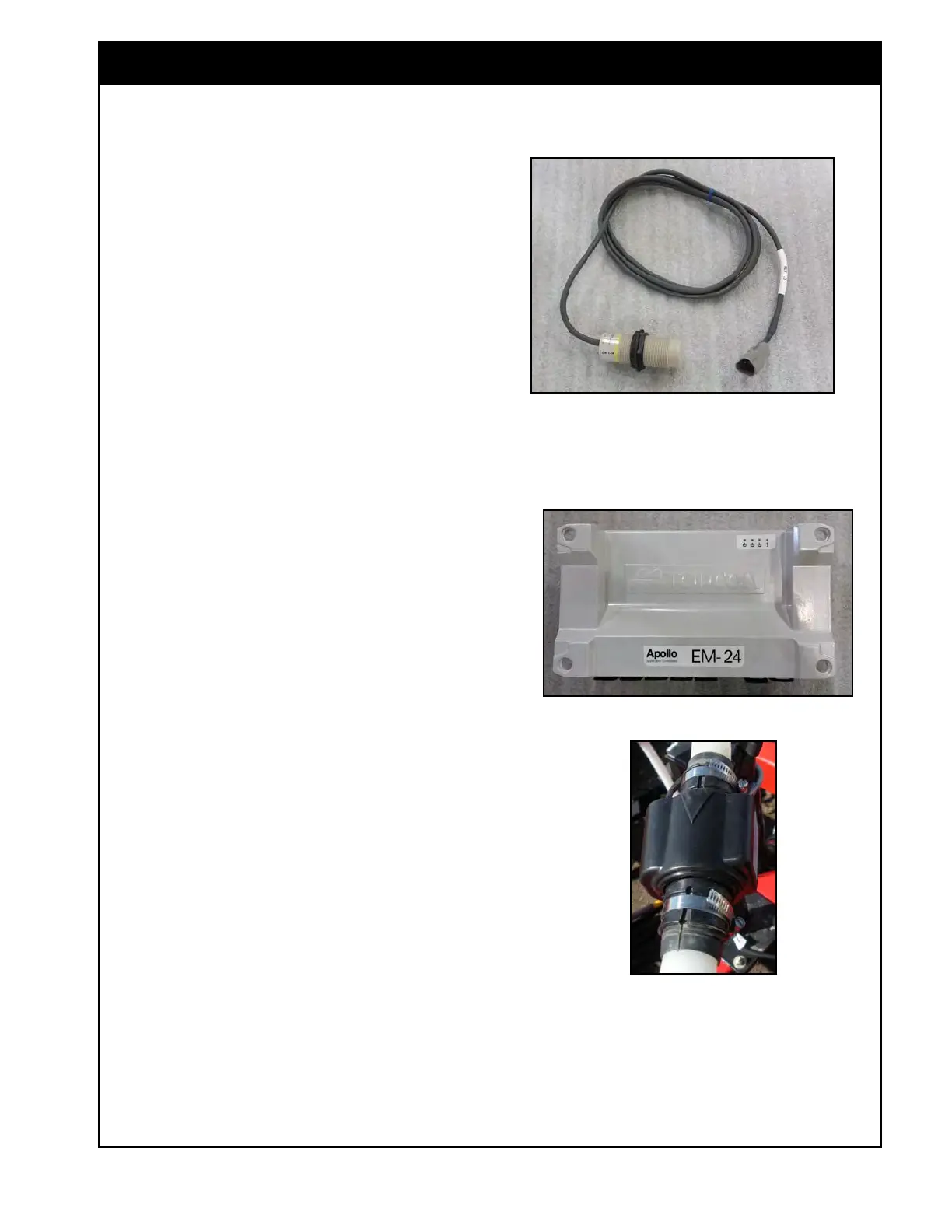

Figure 1.19 - Bin Level Sensor
BinSensor.tif
1.9 BHECU (Blocked Head
Electronic Control Unit)
An I/O ECU (EM-24) (Figure 1.20) and BH
Sensor (Figure 1.21) are available to use with the
X35/Bourgault SRC programs.
The I/O ECU is installed on the secondary manifold
stand and communicates with the BH sensor.
1. The sensor is installed "in-line" on one tertiary
line per secondary manifold;
2. There is a maximum of 20 BH sensors per unit.
The information from this BH sensor is then sent
back to the X35 monitor and is displayed on the
Bourgault SRC program. Refer to Section 13.3
- X35 Blockage Monitoring for more installation
information.
Figure 1.21 - Blocked Head Sensor
(DICKEY-john Style)
Figure 1.20 - I/O ECU (EM-24)
