X35 Monitor Air Seeder Setup
6.51
6.7.1.5 Pressure
Note
These settings are for 7000/9000 Series air
seeder tanks ONLY.
Only individual tanks with dedicated scales, will
have a pressure sensor installed and need the
sensor configured.
1. The tabs on the left with numbers, correspond
to a specific tank (bin) and will have pressure
sensor settings for that tank (bin), refer to
Figure 6.70.
a. Sensor - select the sensor type being used.
i. It
should be set to Voltage.
b. Sensor Maximum Pressure - this is the
maximum
pressure range setting for the
sensor.
i. It should be set to 3.5 psi (24.1 kPa).

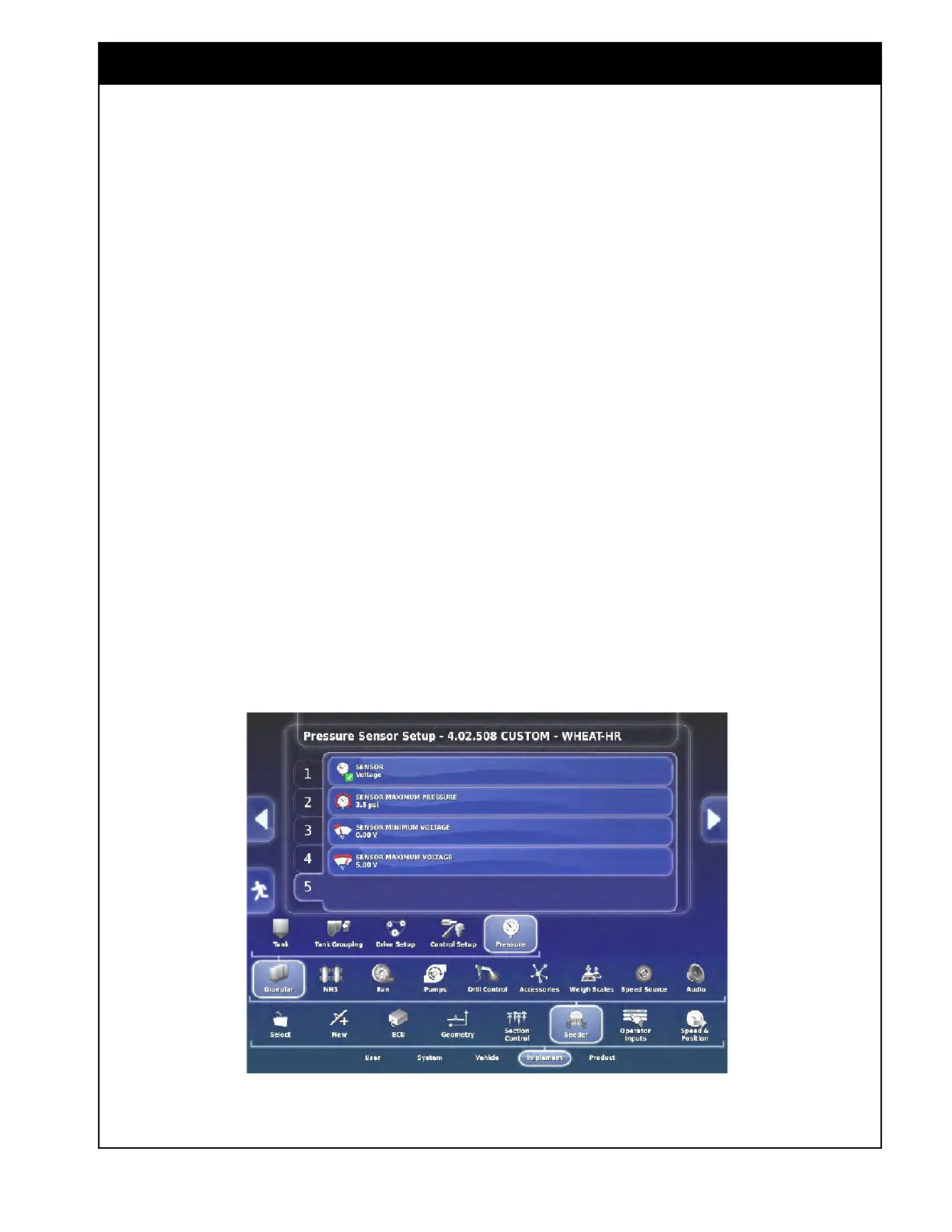

Figure 6.70 - Pressure Sensor Setup
c. Sensor Minimum Voltage - this is the
minimum voltage value for the pressure
sensor.
i. It should be set to 0.00 V.
d. Sensor Maximum Voltage - this is the
maximum
voltage value for the pressure
sensor.
i. It should be set to 5.00 V.
