X35 ConsoleSystem Components
1.10
1.10 Granular Sectional Control
Harnesses
There are 2 control harnesses that run from the I/O
ECU to control up to 10 sections on the unit. One
harness controls the section valves and the other
harness sends the section sensor feedback to the
ECU.
1.11 Section Control Valve Proximity
Sensor

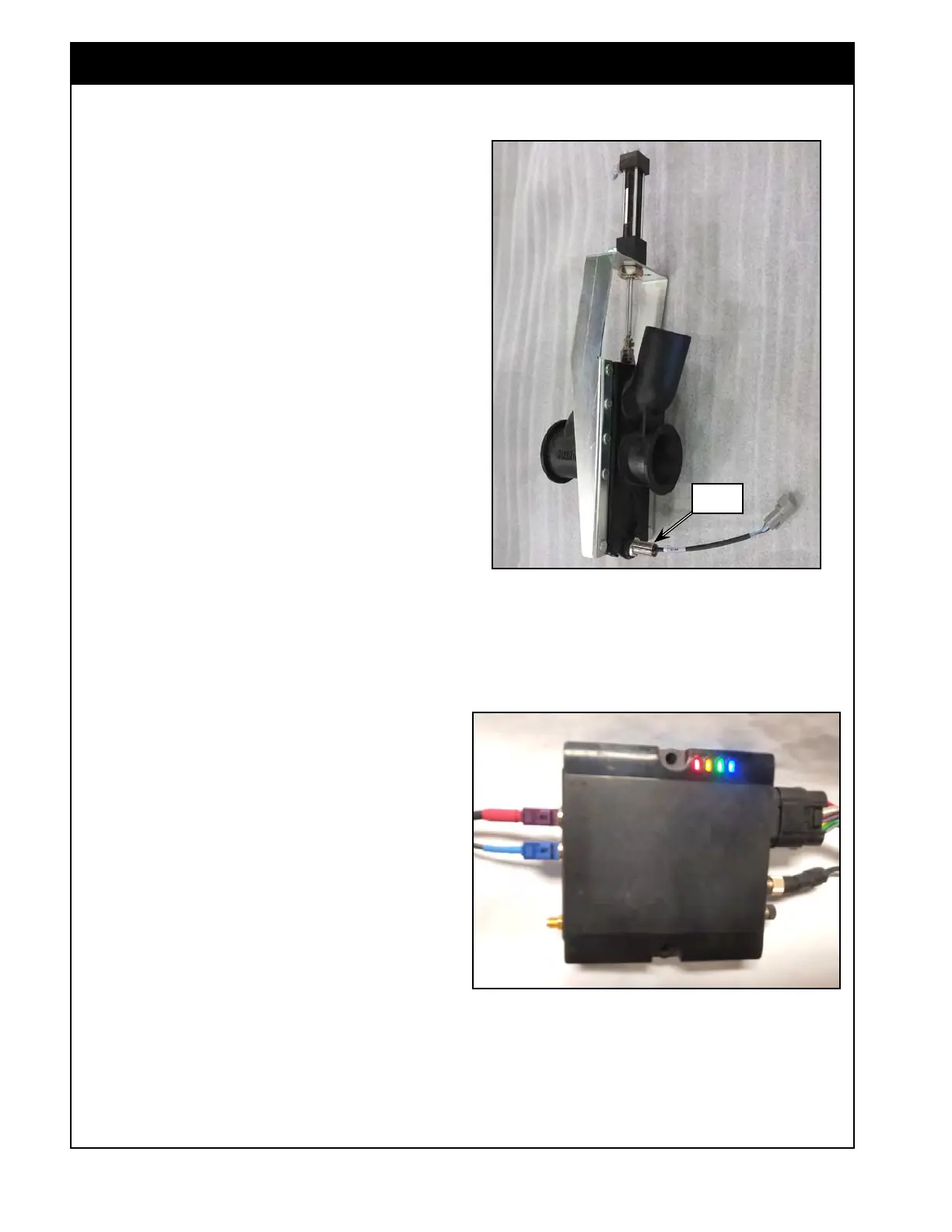

Refer to Figure 1.22. A proximity sensor is used
to determine position of the section control valve.
The sensor provides an alarm on the monitor
when a valve should be open (for seeding), but is
partially or completely closed.
Figure 1.22 - Proximity Sensor
Proximity
Sensor
1.12 CL55 Module
Used for Wi-Fi/cellular internet/GPS connection
into the console. This allows the connection
between multiple units for the optional I2I
coverage sharing feature. This will also be
used for future file management functions and
diagnostics services.
Figure 1.23 - CL 55 Module
