X35 Console Overview
2.13
2.6.1 Seeder Controller Mini-View
Window
Refer to Figure 2.20.
Mini-view Seeder Controller window has several
tabs at the top that display information for
different air seeder features. Only enabled features
and tanks will be displayed.
When there are more than five features available,
tab with arrow will appear to allow to move to the
next page.
1. (A)
Fan(s) - this tab will display the fan(s)
speed for enabled fan(s), for disabled fans it
will show "----" in place of a fan speed.
2. (B)
Drill Control - displays parameters and
controls related to the operation of the drill
(opener lift/lower and pressure control).
3. (C)
Blockage Monitoring - this tab displays
the status of the blockage monitoring system
(if present).
4. (D)
Granular Tank - this tab will display
parameters and controls related to the operation
of a granular tank.
a. The number in the icon will indicate the
tank on the air seeder.
b. For detailed information refer to Section
2.6.3
- Tank Tab/Panel Explained.
5. (E)
NH3/Liquid Tank - this tab will display
the parameters and controls related to the
operation of an NH3/Liquid tank.
a. The number in the icon indicates number
of the tank.
b. For detail information refer to Section 2.6.3
-
Tank Tab/Panel Explained.
6. (F)
Next page - pressing this arrow tab will
open the next page to view more features.
7. (G)
Previous page - pressing this arrow tab
returns you to the previous page.

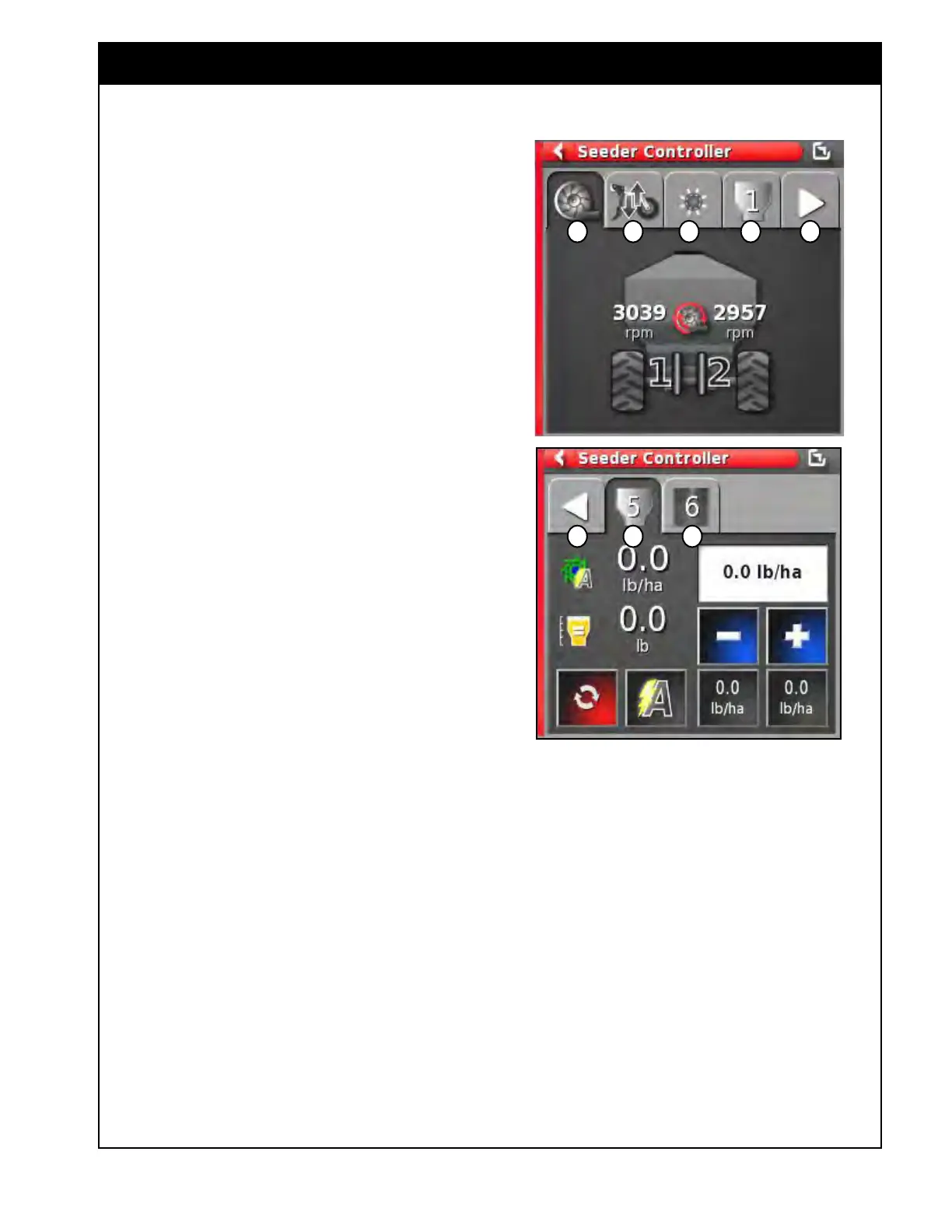

Figure 2.20 - Seeder Controller - Navigation
A B C D F
G D E
To Next Page
