X35 Monitor Air Seeder Setup
6.78

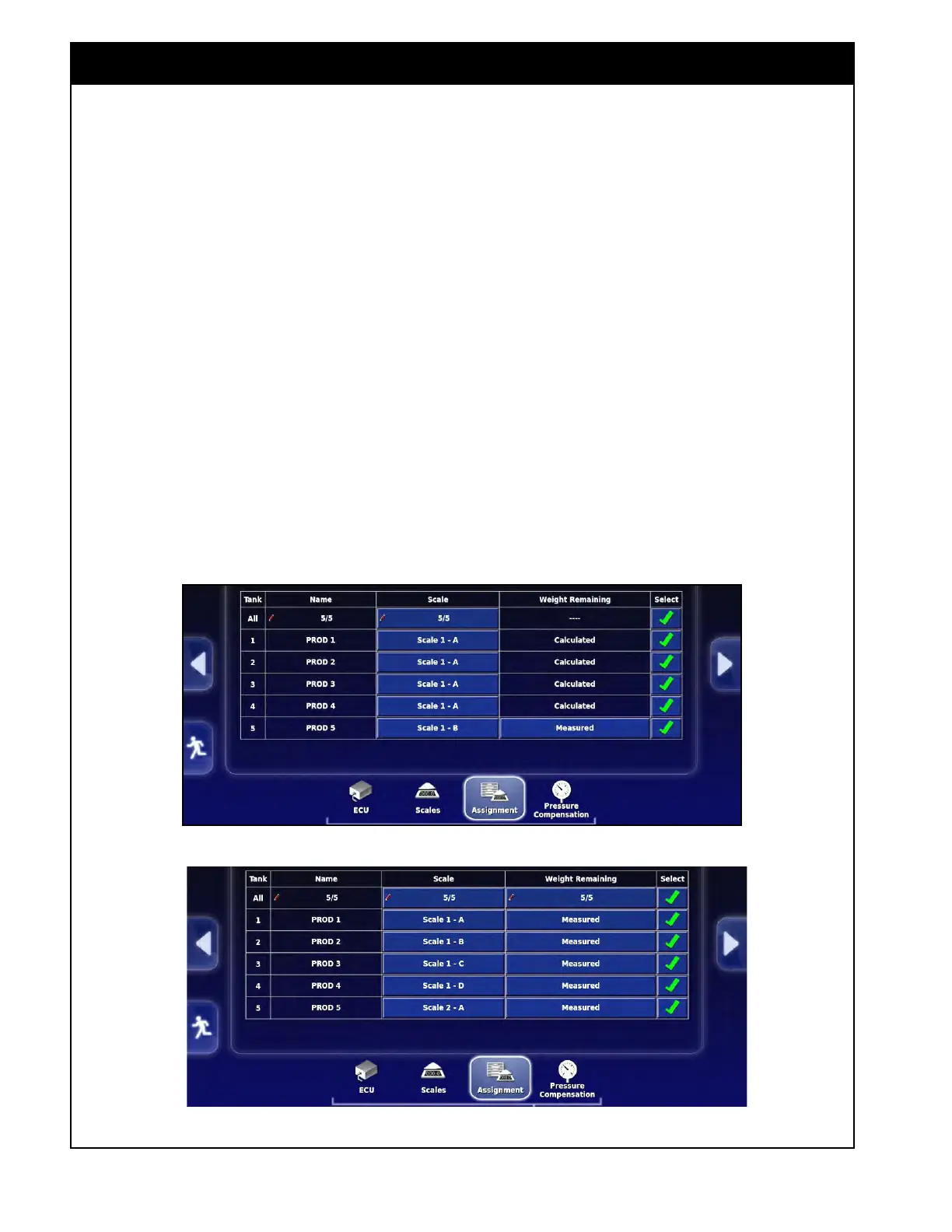

Figure 6.94 - Weigh Scale ECU - Assignment 7000 Series
Figure 6.95 - Weigh Scale ECU - Assignment 9000 Series
6.7.7.3 Assignment
The chart lists all the tanks and the scale channels
they are assigned to.
1. Scale column - sets the scale channel that each
tank is assigned to.
a. 7000 Series
i. Tanks 1-4 are are all part of the
unibody so are all assigned to the
Scale 1 - A channel.
ii. Tank 5 (optional saddle tank) is
assigned to the Scale 1 - B channel.
b. 9000 Series
i. Tanks 1-4 are assigned to Scale 1 - A
to Scale 1 - D channels respectively.
ii. Tank 5 (optional saddle tank) is
assigned to the Scale 2 - A channel.
2. Weight Remaining column - sets whether each
tank will monitor the actual weight remaining
if it has dedicated load cells.
a. 7000 Series
i. Tanks 1-4 are set to Calculated since
they don’t have dedicated load cells
for each tank.
ii. Tank 5 (optional saddle tank) is set
to Measured to monitor the actual
weight.
b.
9000
Series
i. All tanks are set to Measured since
they all have dedicated load cells to
monitor the actual weight.
