X35 ConsoleOverview
2.20
2.6.5 Area Counters Panel
Refer to Figure 2.28.
The area counters section has a total of 10 possible
areas. For each tank and each area, the X35
console will record: the treated area, ASC savings,
product used, operating time, average rate and
productivity rate. These accumulate whenever the
master switch and the particular tank switch are on.
There can be 2 area counter panels displayed at the
same time if enabled in the settings, refer to Section
4.2.4 - Implement. A Job Area Counter to record
area within a job, and an Implement Area Counter
to keep a running total through multiple jobs.
1. (A) Allows you to set the active area counter
number, for which data will be accumulated.
When a new active area number is selected,
data accumulation for the previously selected
active area will stop.
2. (B) Allows
you to select an area for viewing
and resetting data. Use the left and right
arrows to switch between areas.
3. (C) Selects
a specific tank for viewing and
resetting data. Use the left and right arrows to
switch between tanks.
4. (D)
Viewing area - will display the treated
area, ASC savings, product used, operating
time, average rate and productivity rate for a
selected area and tank (items B & C, Figure
2.28).
Selecting anywhere in the display area
will bring up a Customize Data menu, that
will allow you to select items for viewing.
Selected items will have white background.
a. T
reated Area - displays the calculated area
each tank has applied product over based
on the width of the boom and the distance
travelled based on speed and time.
b. ASC
Savings - displays the calculated
percent savings in area of a sectional boom
compared to the area that would have been
applied if it were a full width boom.

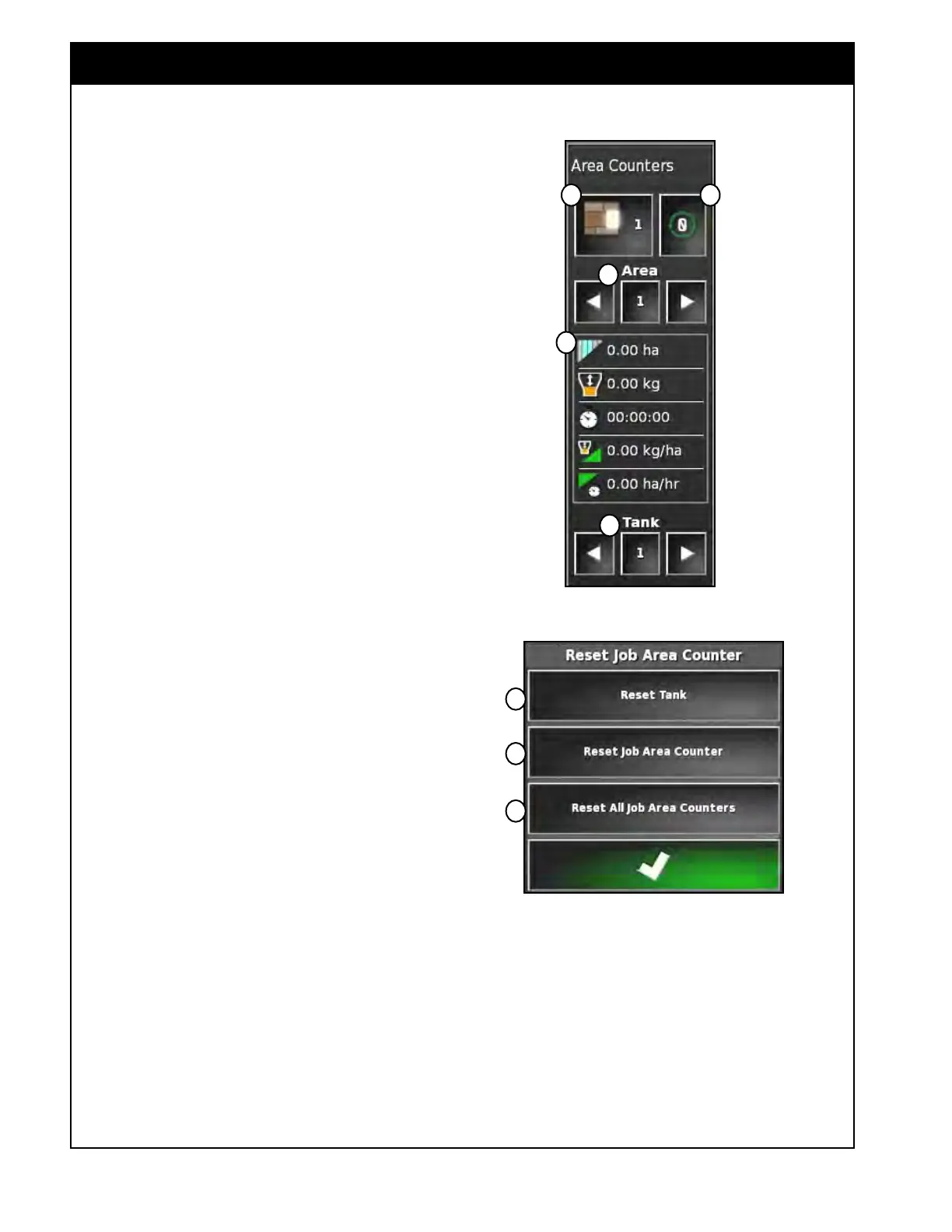

Figure 2.28 - Area Counters Panel
A E
B
C
D
Figure 2.29 - Reset Job Area Counter
a
b
c
5. (E) Opens the reset area counter window, refer
to Figure 2.29.
a. Resets statistics for the selected tank in the
selected area Figure 2.28 (items B & C,
Figure 2.28)
b.
Resets the statistics for all tanks in the
selected area (items B, Figure 2.28).
c.
Resets statistics for all tanks in all areas.
