Topcon X35 - Drill Fold Setup; General Output

X35 Monitor Air Seeder Setup
6.73
6.7.6.6 General Output
This setting allows you to assign a relay output
from one of the ECU drives. It is not supported
through Bourgault harnessing.
6.7.6.7 Drill Fold Setup
This allows features only available on the 3420
machines to be configured.
1. Drill
Fold - needs to be set to enabled for
3420
machines.
2. Rear Tow Hitch - set to enabled if unit is
equipped
with the rear tow hitch option.
3. Treadlite System - set to enabled if unit is
equipped
with the extra Treadlite tire option.

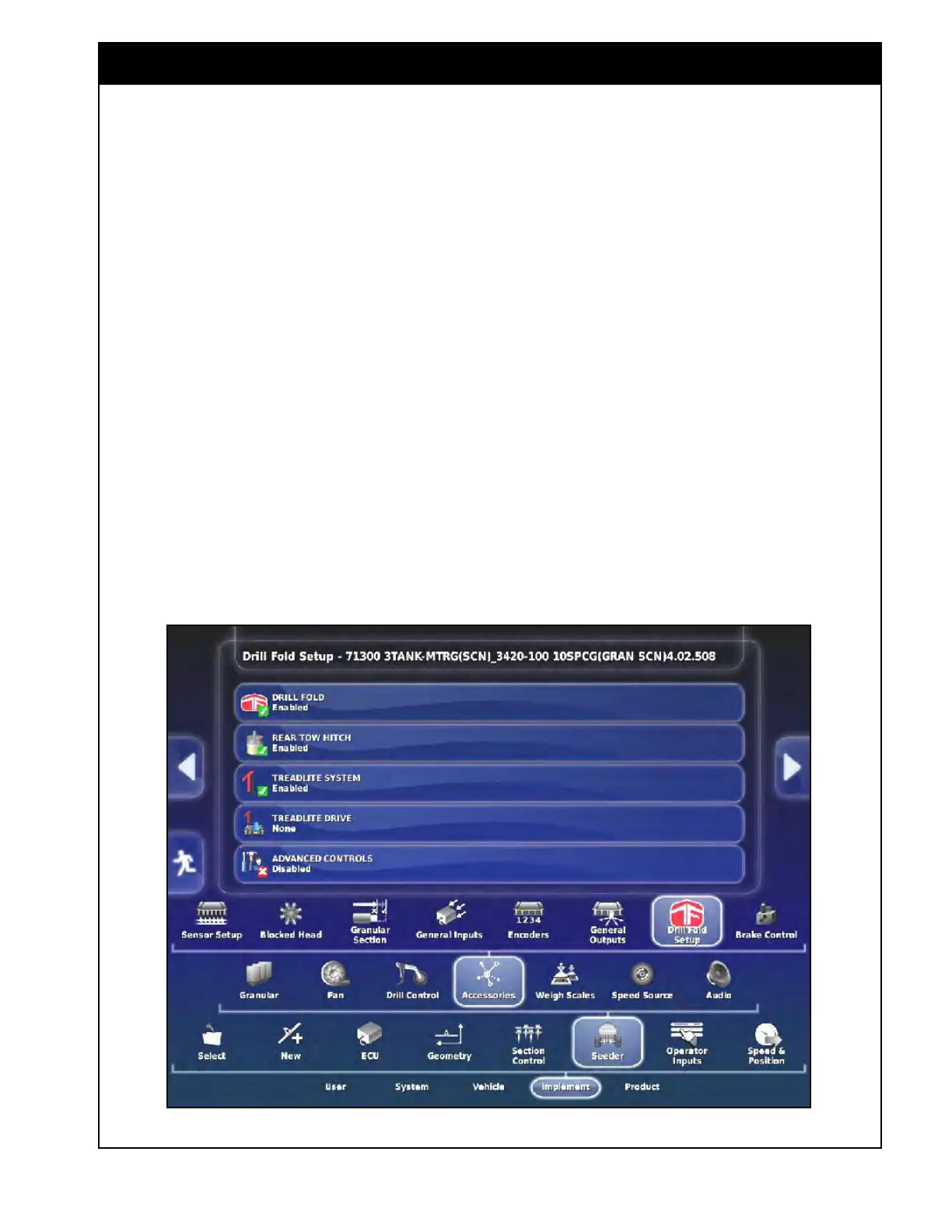

Figure 6.90 - Drill Fold Setup
4. Treadlite Drive - this option is controlled by
the same drive as the QDA so it will only
show up if the drive hasn’t already been set
for the QDA.
a. It will be Drive 2 on the last CM-40 on
the list.
5. Advanced
Contr
ols - allows you to enable
advanced controls for manually manipulating
drill fold. Careful attention is required in this
mode to prevent damage.
