X35 Monitor Air Seeder Setup
6.50
6.7.1.4 Control Setup
Note
These settings are for 7000/8000/9000 Series
air seeders with hydraulic drive metering augers
ONLY.
1. The first tab allows you to set whether each
tank will have custom settings or, to use
(copy) settings from specified tank, refer to
Figure 6.68.
2. Tabs with numbers correspond to a specific
tank (bin) and will have control settings for
that tank(bin), refer to Figure 6.69.
The PWM
(Pulse Width Modulator) valve on
each motor controls the on/off and speed of the
metering auger hydraulic motor.
Minimum / Maximum PWM are
the limits of the
PWM
drive and are represented in the percentage
of voltage drive to the coil.
1. Minimum PWM
- should be set to 15%
2. Maximum PWM
- should be set to 95%
3. Controller Response - select how fast the
controller
will respond to changes. The default
is set to Medium Fast.
Note
It is recommended to leave these settings at the
factory default.

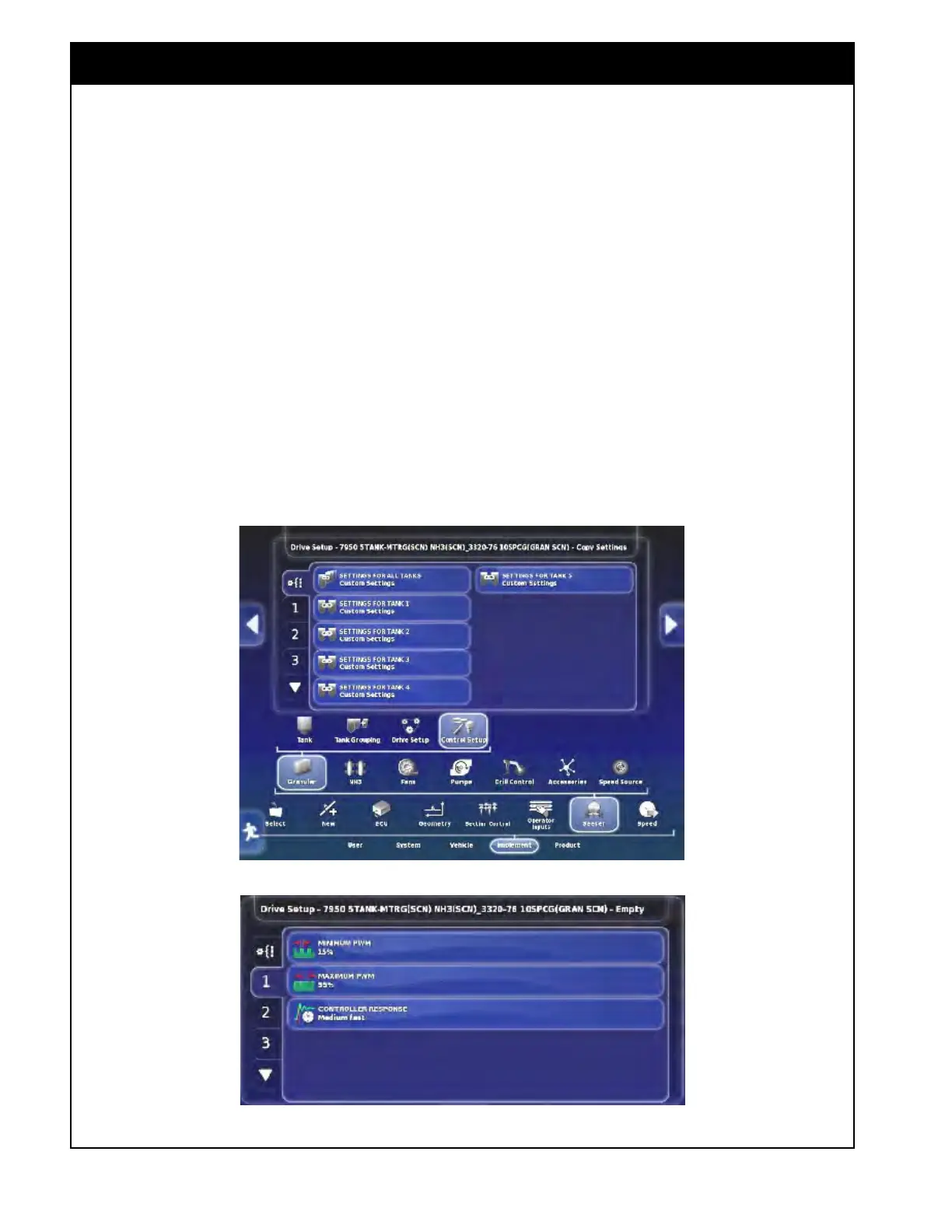

Figure 6.69 - Control Settings - Individual Tank
Figure 6.68 - Control Settings - All Tanks
