13.1 Implement Switch (Auto-Clutch) Feature
The implement switch allows the air seeder to turn
on/off as the tillage implement is lowered/raised.
Note
The following instructions only apply if the
implement switch is connected on the tillage
implement. It is standard on the 3320 and 3710's,
and it is optional on a 5810.
Important
It is highly recommended to enable the In-cab
Keypad and/or virtual switches when using the auto
clutch switch. Also, turn off the master switch until
ready to seed. Without the in-cab/virtual master
enabled and off, there will be scenarios where the
auto clutch will attempt to turn on the master prior
to desired seeding. For example, if used with a
3320 or 3710 with drill control box powered of
f.
X20630980.skf

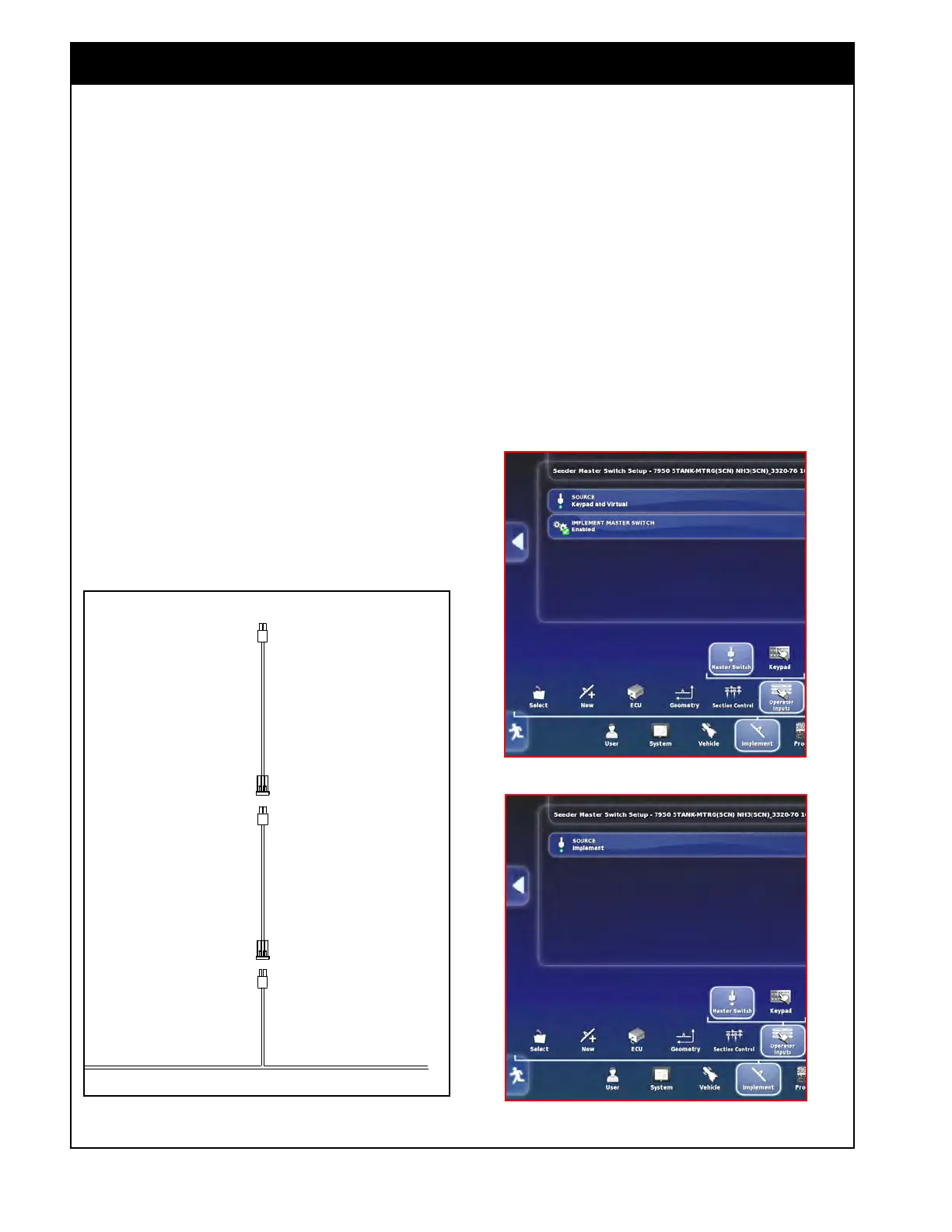

Figure 13.1 - Implement Switch Harness Layout
Figure 13.2 - Keypad Setup
Figure - 13.3 - In-cab Keypad Disabled
Note
Refer to the opener
control keypad
assembly instructions
for further details.
1. If the in-cab keypad/virtual switches are
enabled and the Auto Clutch Switch is enabled
(refer to Section 6.8 - Operator Inputs and
Figure 13.2), the in-cab Master has priority
over the Auto Clutch Switch.
a. In that case, the in-cab/virtual master
would have to be turned on for the Auto
Clutch Switch to control the Air Seeder.
2. If the in-cab keypad/virtual switches are
disabled (refer to Section 6.8 - Operator
Inputs and Figure 13.3), you will
not be able
to override the Auto Clutch Switch when
required.
